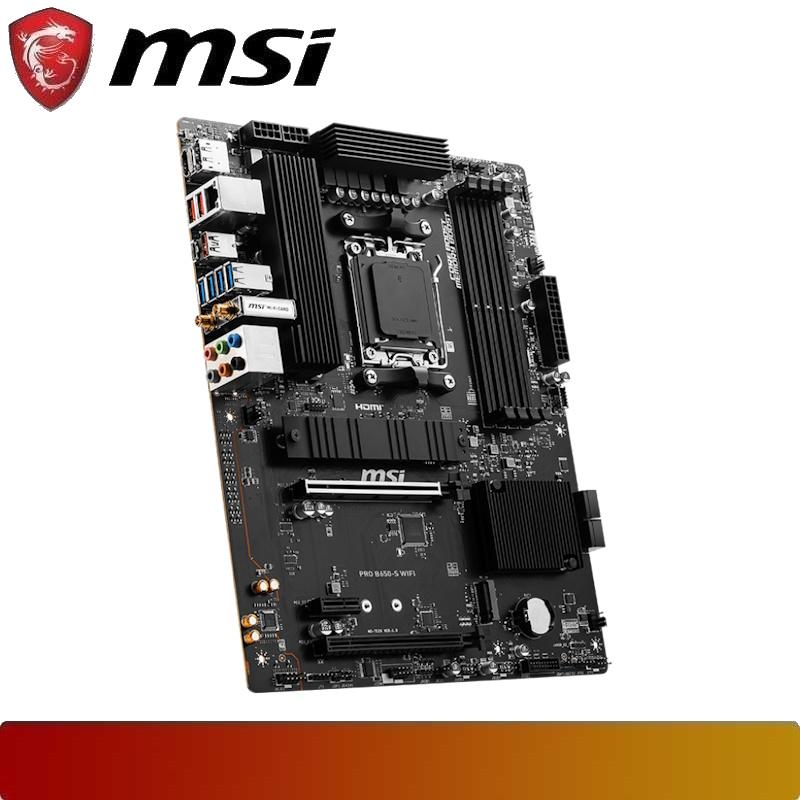

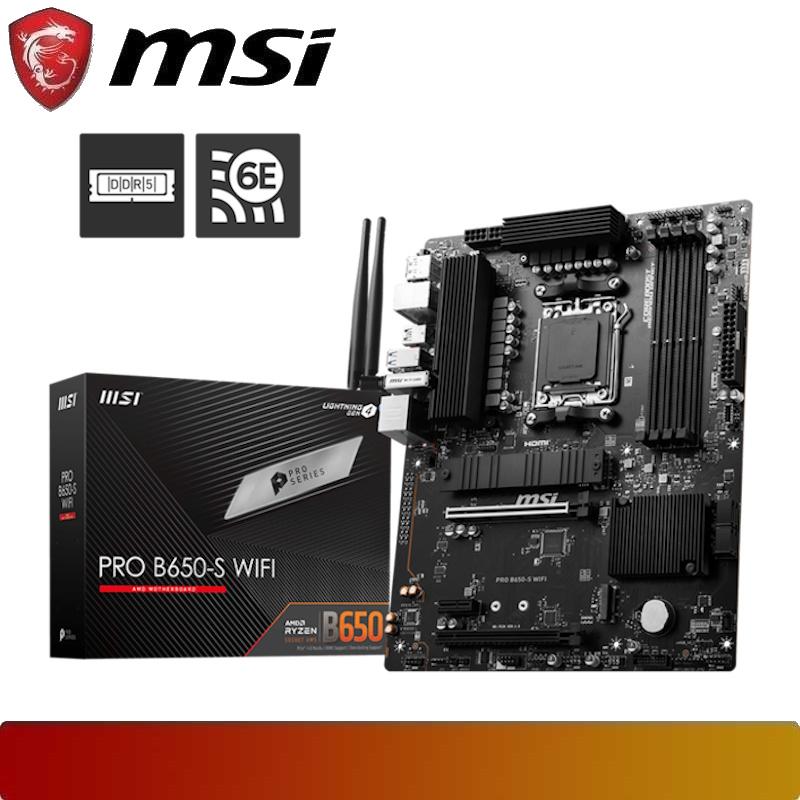

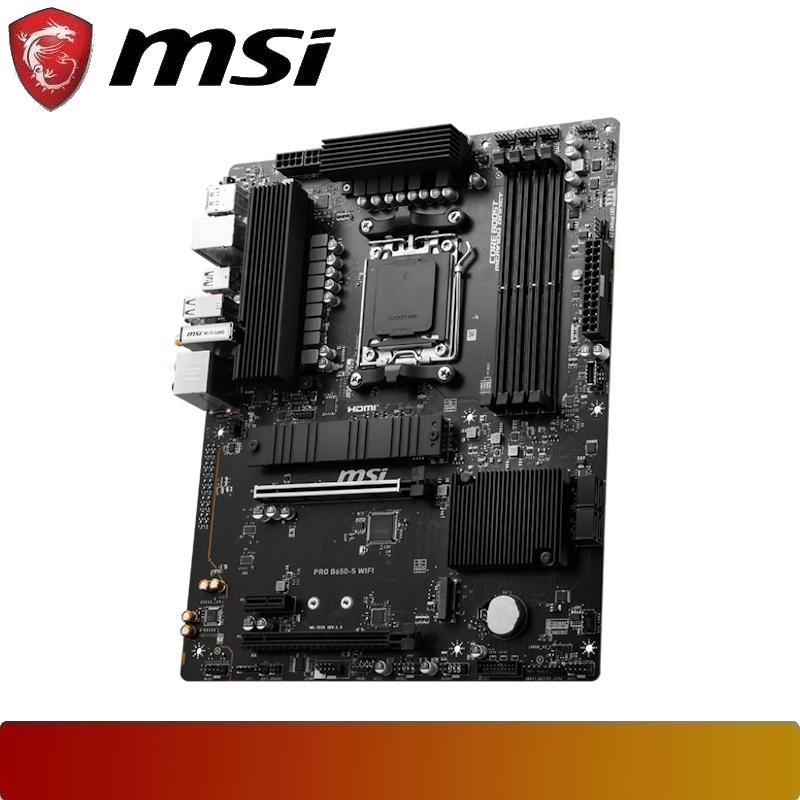

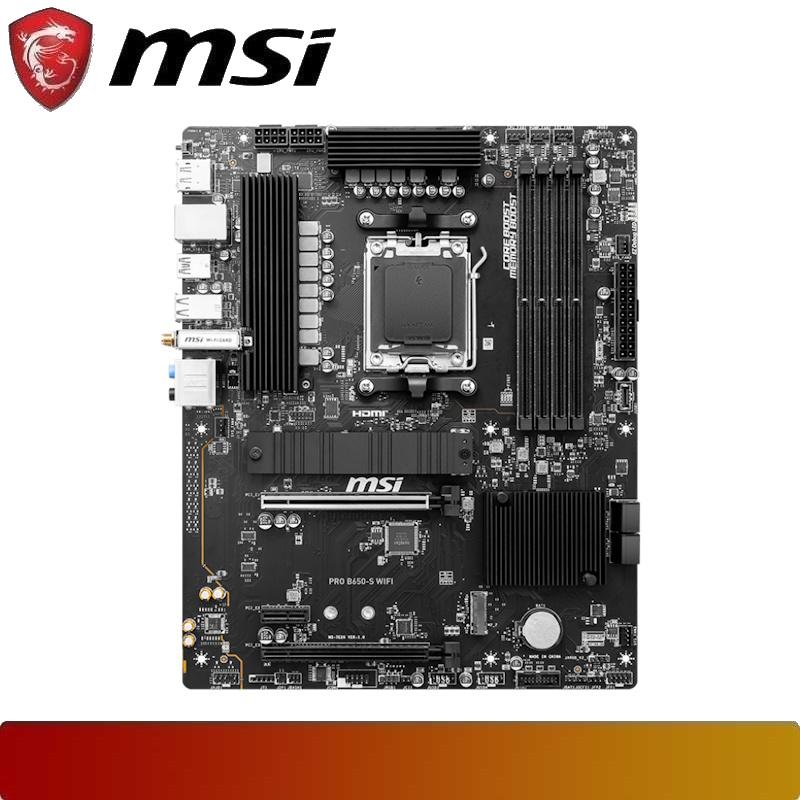

MSI PRO B650-S WIFI
| SOCKET | AM5 |
| CHIPSET | AMD B650 |
| FORM FACTOR | ATX (243.84mm x 304.8mm) |
| CPU SUPPORT | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| MEMORY SLOTS | 4x DDR5 DIMMs, Maximum Memory Capacity 256GB |
| MEMORY SUPPORT | DDR5 7200+(OC) to 4800(JEDEC) MHz. Supports Dual-Channel, non-ECC, un-buffered memory, AMD EXPO. |
| PCI-E X16 SLOTS | 2 (PCIe 4.0 x16 from CPU; PCIe 4.0 x4 from Chipset) |
| PCI-E X1 SLOT | 1 (PCIe 3.0 from Chipset) |
| M.2 SLOTS | 2 (M2_1 from CPU: PCIe 4.0 x4, supports 22110/2280; M2_2 from CPU: PCIe 4.0 x4, supports 2280/2260) |
| SATA 6G PORTS | 4 |
| RAID SUPPORT | RAID 0, RAID 1 for SATA & M.2 NVMe storage devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.1 x 1 (Max. 4K 60Hz) DisplayPort 1.4 x 1 (Max. 4K 60Hz) *Available only on processors featuring integrated graphics. |
| AUDIO | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® 8125BG 2.5G LAN |
| WIFI & BLUETOOTH | Wi-Fi 6E (802.11 a/ b/ g/ n/ ac/ ax), Dual Band (2.4GHz/ 5GHz/ 6GHz). Bluetooth® 5.3. |

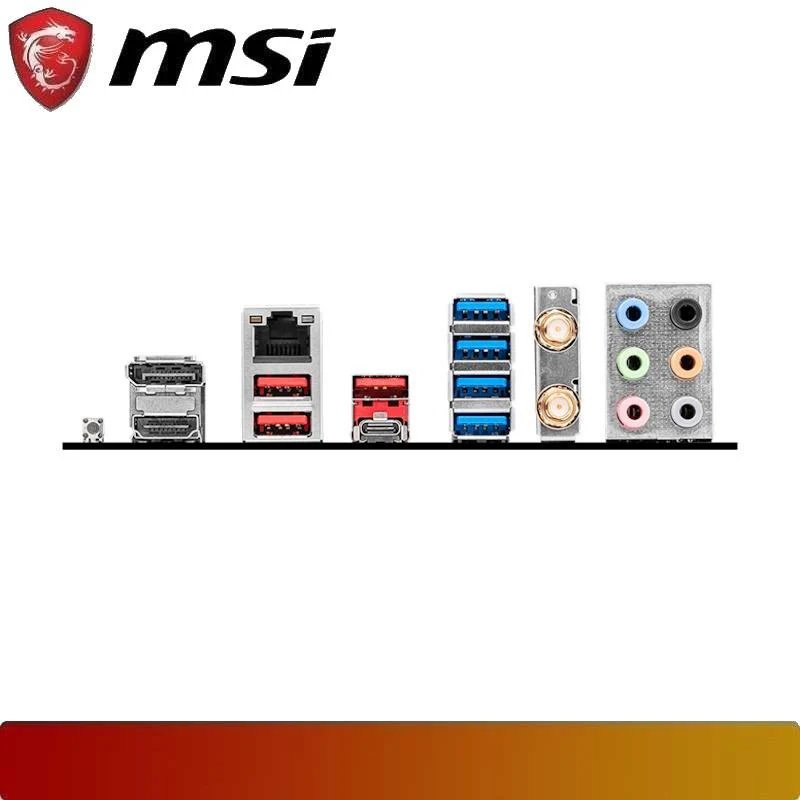

| REAR USB PORTS | 1x USB 3.2 Gen 2x2 20Gbps Type-C 3x USB 3.2 Gen 2 10Gbps Type-A 4x USB 3.2 Gen 1 5Gbps Type-A |
| FRONT USB CONNECTORS | 1x USB 3.2 Gen 2 10Gbps Type-C 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports) |
| MULTI-GPU SUPPORT | AMD MULTI-GPU Support |
| LED FEATURE | 4x EZ Debug LED |
| TPM (HEADER) | 1 |
| SERIAL PORTS (FRONT) | 1 |
| OPERATING SYSTEM SUPPORT | Windows® 11 64-bit, Windows® 10 64-bit |
$43.35
Original: $144.49
-70%MSI PRO B650-S WIFI—
$144.49
$43.35Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| SOCKET | AM5 |
| CHIPSET | AMD B650 |
| FORM FACTOR | ATX (243.84mm x 304.8mm) |
| CPU SUPPORT | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| MEMORY SLOTS | 4x DDR5 DIMMs, Maximum Memory Capacity 256GB |
| MEMORY SUPPORT | DDR5 7200+(OC) to 4800(JEDEC) MHz. Supports Dual-Channel, non-ECC, un-buffered memory, AMD EXPO. |
| PCI-E X16 SLOTS | 2 (PCIe 4.0 x16 from CPU; PCIe 4.0 x4 from Chipset) |
| PCI-E X1 SLOT | 1 (PCIe 3.0 from Chipset) |
| M.2 SLOTS | 2 (M2_1 from CPU: PCIe 4.0 x4, supports 22110/2280; M2_2 from CPU: PCIe 4.0 x4, supports 2280/2260) |
| SATA 6G PORTS | 4 |
| RAID SUPPORT | RAID 0, RAID 1 for SATA & M.2 NVMe storage devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.1 x 1 (Max. 4K 60Hz) DisplayPort 1.4 x 1 (Max. 4K 60Hz) *Available only on processors featuring integrated graphics. |
| AUDIO | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® 8125BG 2.5G LAN |
| WIFI & BLUETOOTH | Wi-Fi 6E (802.11 a/ b/ g/ n/ ac/ ax), Dual Band (2.4GHz/ 5GHz/ 6GHz). Bluetooth® 5.3. |
| REAR USB PORTS | 1x USB 3.2 Gen 2x2 20Gbps Type-C 3x USB 3.2 Gen 2 10Gbps Type-A 4x USB 3.2 Gen 1 5Gbps Type-A |
| FRONT USB CONNECTORS | 1x USB 3.2 Gen 2 10Gbps Type-C 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports) |
| MULTI-GPU SUPPORT | AMD MULTI-GPU Support |
| LED FEATURE | 4x EZ Debug LED |
| TPM (HEADER) | 1 |
| SERIAL PORTS (FRONT) | 1 |
| OPERATING SYSTEM SUPPORT | Windows® 11 64-bit, Windows® 10 64-bit |
