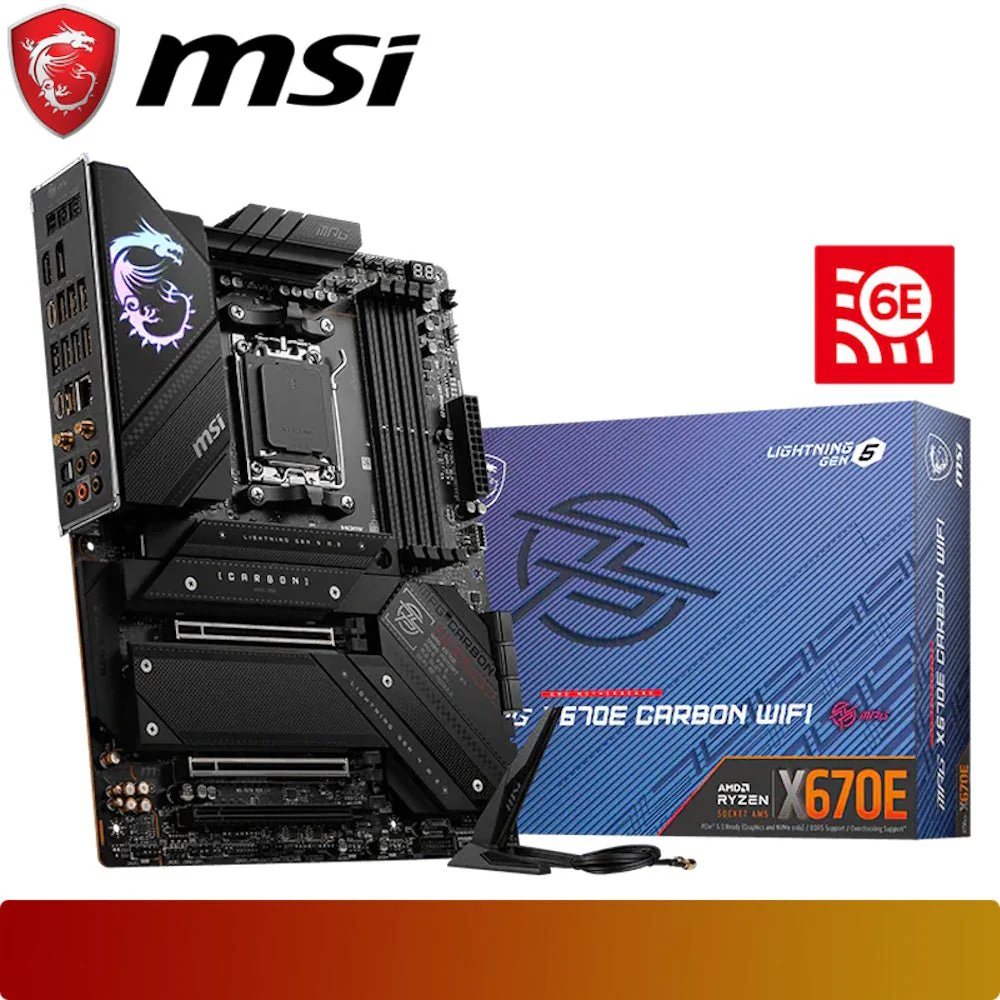

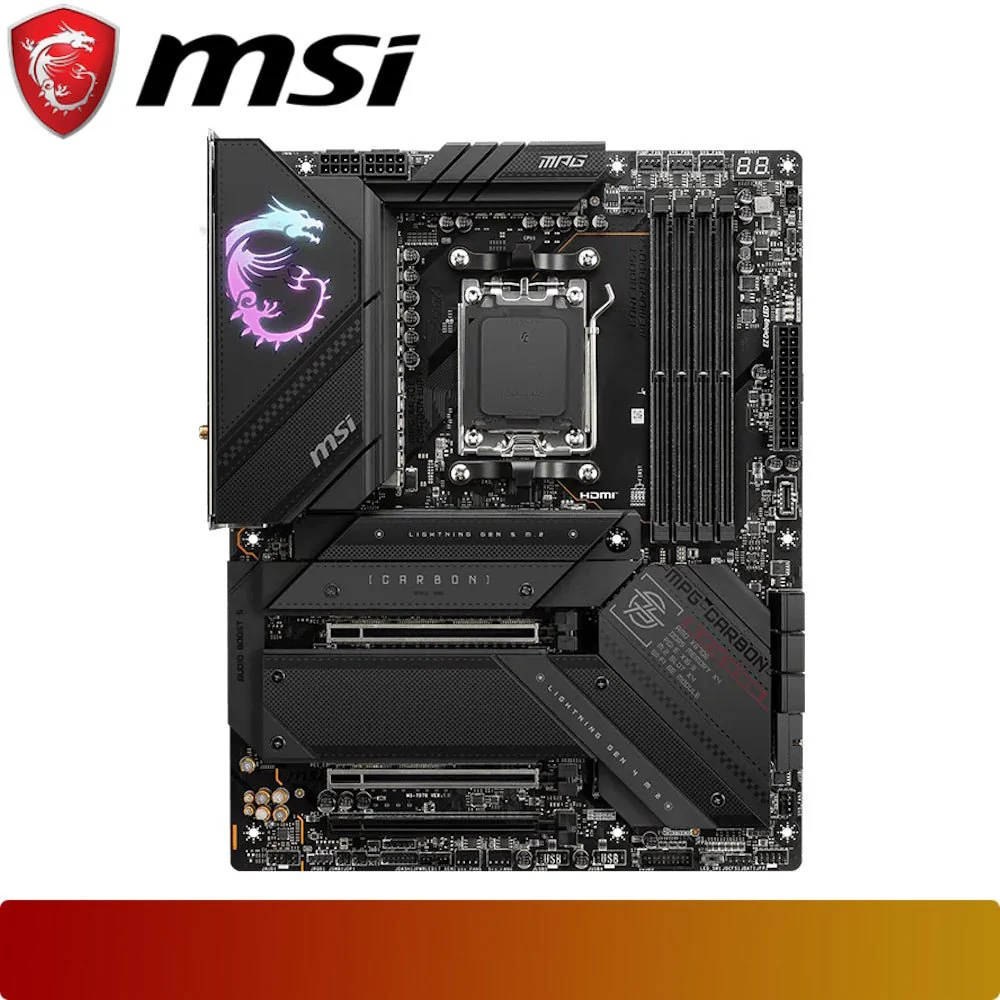

MSI MPG X670E CARBON WIFI
| Model Name | MPG X670E CARBON WIFI |
| CPU Support | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| CPU Socket | Socket AM5 |
| Chipset | AMD X670 Chipset |
| Memory Support | 4x DDR5, Maximum Memory Capacity 256GB, Supports up to 7800+(OC) MT/s |
| Graphics Output | 1x HDMI™ 2.1, 1x DisplayPort 1.4, 1x USB Type-C (DisplayPort 1.4) |
| Expansion Slots | 2x PCIe 5.0 x16 slots, 1x PCIe 4.0 x16 slot (x4 mode) |
| Storage Interface | 4x M.2 slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4), 6x SATA 6Gb/s ports |
| USB Ports | 1x USB 3.2 Gen 2x2 20Gbps (Type-C), 7x USB 3.2 Gen 2 10Gbps, 2x USB 2.0 |
| Wireless / BT | AMD Wi-Fi 6E, Bluetooth 5.3 |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
| Special Features | 18+2+1 Duet Rail Power System, Lightning Gen 5, M.2 Shield Frozr, Wi-Fi 6E Solution |
$502.03
MSI MPG X670E CARBON WIFI—
$502.03
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model Name | MPG X670E CARBON WIFI |
| CPU Support | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| CPU Socket | Socket AM5 |
| Chipset | AMD X670 Chipset |
| Memory Support | 4x DDR5, Maximum Memory Capacity 256GB, Supports up to 7800+(OC) MT/s |
| Graphics Output | 1x HDMI™ 2.1, 1x DisplayPort 1.4, 1x USB Type-C (DisplayPort 1.4) |
| Expansion Slots | 2x PCIe 5.0 x16 slots, 1x PCIe 4.0 x16 slot (x4 mode) |
| Storage Interface | 4x M.2 slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4), 6x SATA 6Gb/s ports |
| USB Ports | 1x USB 3.2 Gen 2x2 20Gbps (Type-C), 7x USB 3.2 Gen 2 10Gbps, 2x USB 2.0 |
| Wireless / BT | AMD Wi-Fi 6E, Bluetooth 5.3 |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
| Special Features | 18+2+1 Duet Rail Power System, Lightning Gen 5, M.2 Shield Frozr, Wi-Fi 6E Solution |
