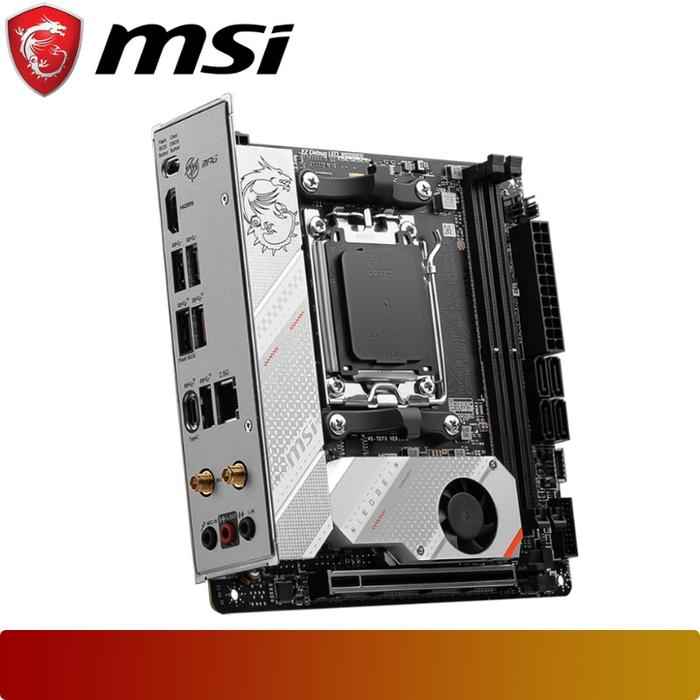

Product image 4
Product image 5

MSI MPG B650I EDGE WIFI



Chipset AMD B650
CPU Socket Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor Mini-ITX
Memory (DDR5)
  1. 2x DDR5 DIMMs, Maximum Memory Capacity 128GB
  2. Memory Speed Support: DDR5 up to 7200+(OC) MHz
  3. Max overclocking frequency:
    • 1) 1DPC 1R Max speed up to 7200+ MHz
    • 2) 1DPC 2R Max speed up to 6400+ MHz
  4. Supports Dual-Channel mode, non-ECC un-buffered memory, and AMD EXPO™
Onboard Graphics
  1. 1x HDMI™ (Supports HDMI™ 2.1 FRL, max resolution 4K 120Hz*)
  2. 1x DisplayPort (Not listed on all sources, use HDMI as primary graphics output)

*Requires a processor with integrated graphics.
Expansion Slots
  1. 1x PCI-E x16 slot (PCI_E1 Gen PCIe 4.0, runs up to x16/x8/x4 depending on CPU)
Audio Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio (32-Bit/384 kHz playback on front panel)
Storage
  1. 2x M.2 slots (Both support PCIe 4.0 x4, supports 2280/2260 devices)
  2. 4x SATA 6G ports
Networking
  1. LAN: Realtek® RTL8125BG 2.5Gbps LAN
  2. Wireless/Bluetooth: AMD Wi-Fi 6E (pre-installed module) & Bluetooth® 5.3
RAID Support Supports RAID 0, RAID 1, and RAID 10 for SATA and RAID 0, RAID 1 for M.2 NVMe devices.
USB Ports
  1. Rear Panel Ports: 1x USB-C 20Gbps (USB 3.2 Gen 2x2), 3x USB-A 10Gbps, 2x USB-A 5Gbps.
  2. Front/Internal Headers: 1x USB-C 10Gbps header, 2x USB-A 5Gbps headers (supports 2 ports), 1x USB 2.0 header (supports 2 ports).
Internal I/O
  1. 1x CPU Fan connector, 1x Pump Fan connector, 1x System Fan connector
  2. 1x Addressable V2 RGB LED connector (JARGB\_V2)
  3. 1x Front Audio (JAUD), 1x Chassis Intrusion (JCI)
  4. 1x TPM pin header (Support TPM 2.0)
LED Feature EZ Debug LED
Operating System Supports Windows® 11 64-bit, Windows® 10 64-bit
$283.14
