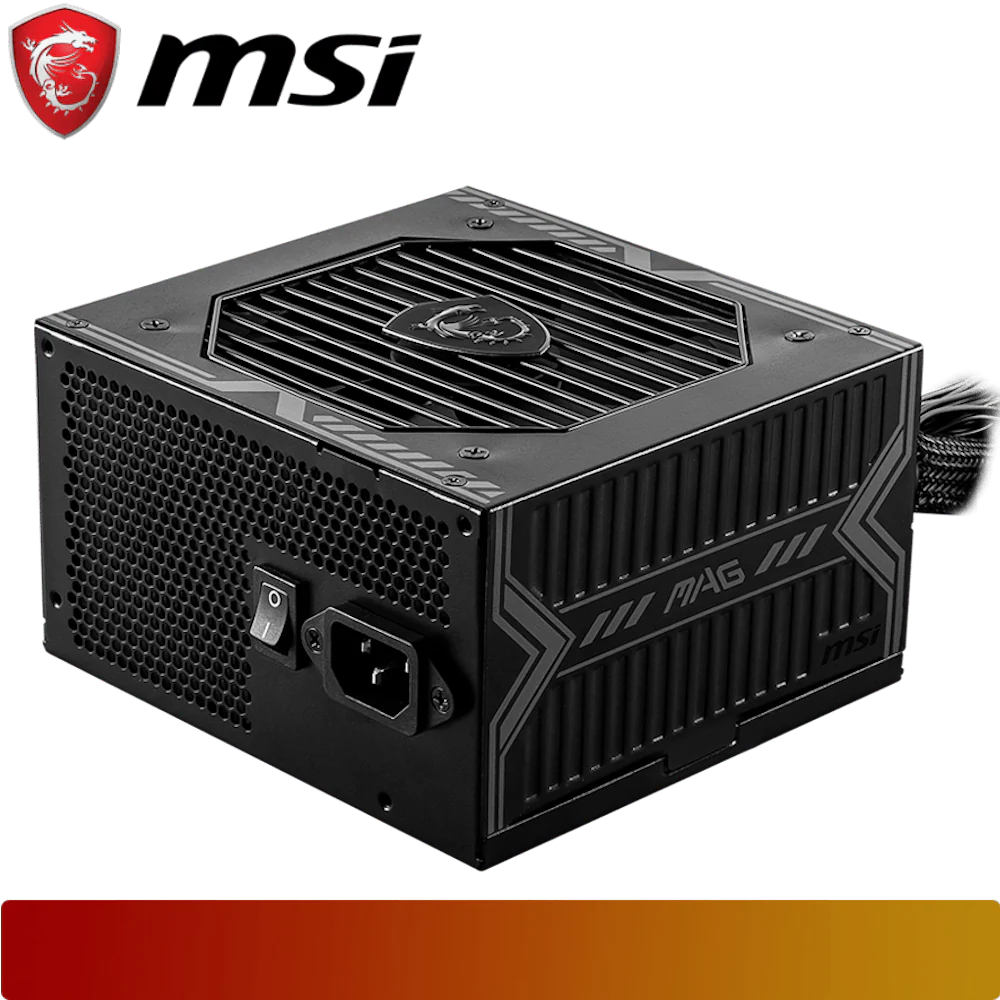

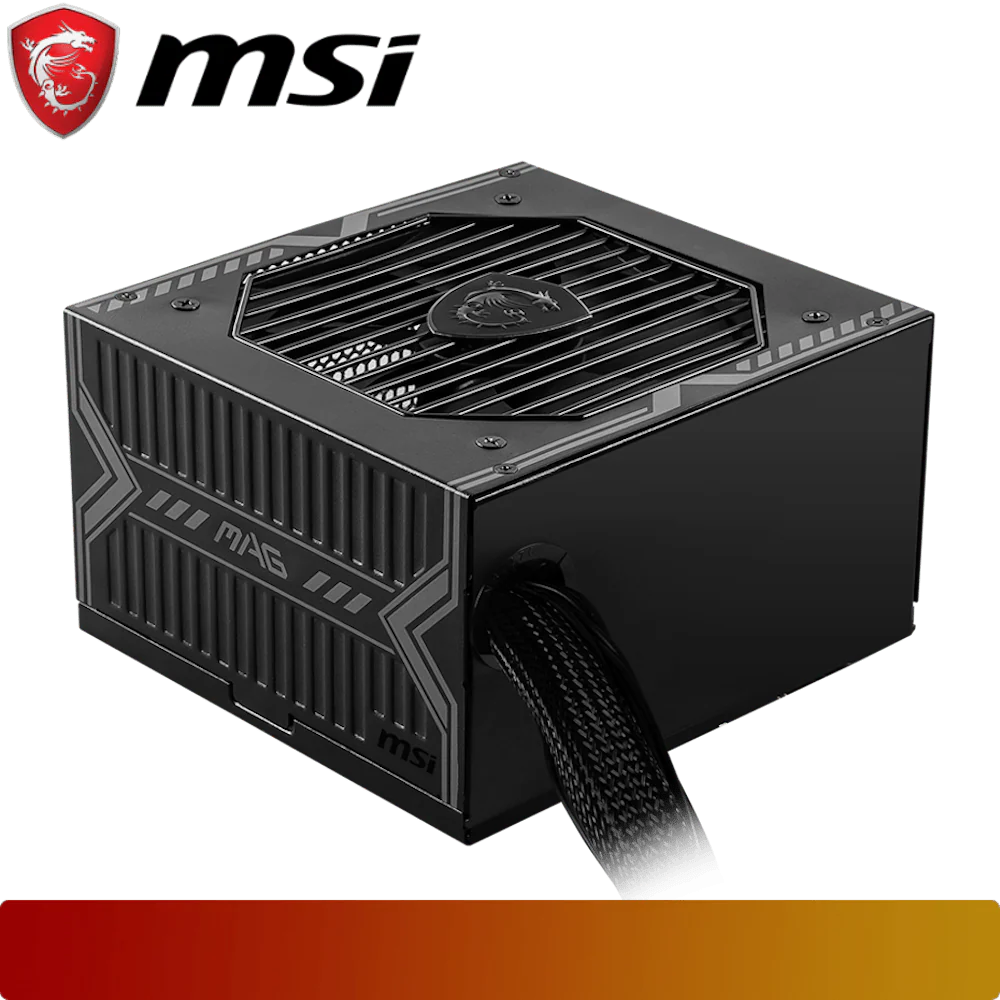

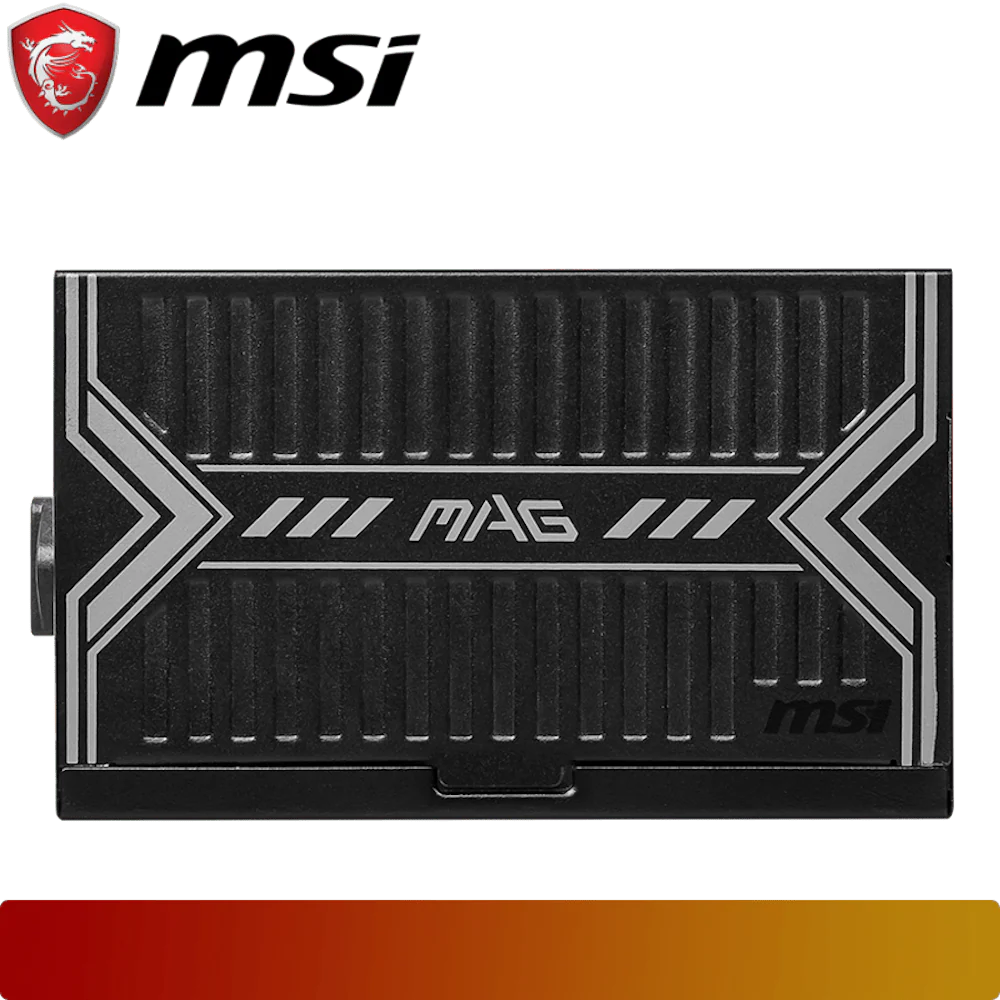

MSI MAG A550BN
| GENERAL SPECIFICATIONS | |
| Product Name | MAG A550BN |
| PSU Form Factor | ATX |
| Power Watt | 550W |
| Efficiency Rating | Up to 85% (80 Plus Bronze) |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240Vac |
| Input Frequency Range | 50Hz ~ 60Hz |
| Fan Size | 120 mm (Low Noise Fan) |
| Dimensions (DxWxH) | 150mm x 140mm x 86mm |
| Protection Features | OCP / OVP / OPP / OTP / SCP |
| DC OUTPUT | |
| Rail / Voltage | Max Current (A) / Power (W) |
| +5V | 20.0A (Combined Power +5V & +3.3V: 110W) |
| +3.3V | 20.0A (Combined Power +5V & +3.3V: 110W) |
| +12V | 45.5A (Power: 546W) |
| -12V | 0.3A (Power: 3.6W) |
| +5Vsb | 2.5A (Power: 12.5W) |
| Total Power | 550W |
| CONNECTORS | |
| ATX (Motherboard) 20+4 pin | 1 |
| EPS (CPU) 4+4 pin | 1 |
| PCIe (VGA) 6+2 pin | 2 |
| SATA 15 pin | 5 |
| MOLEX (PERIPHERAL) 4 pin | 2 |
| FDD (Floppy) | 1 |
