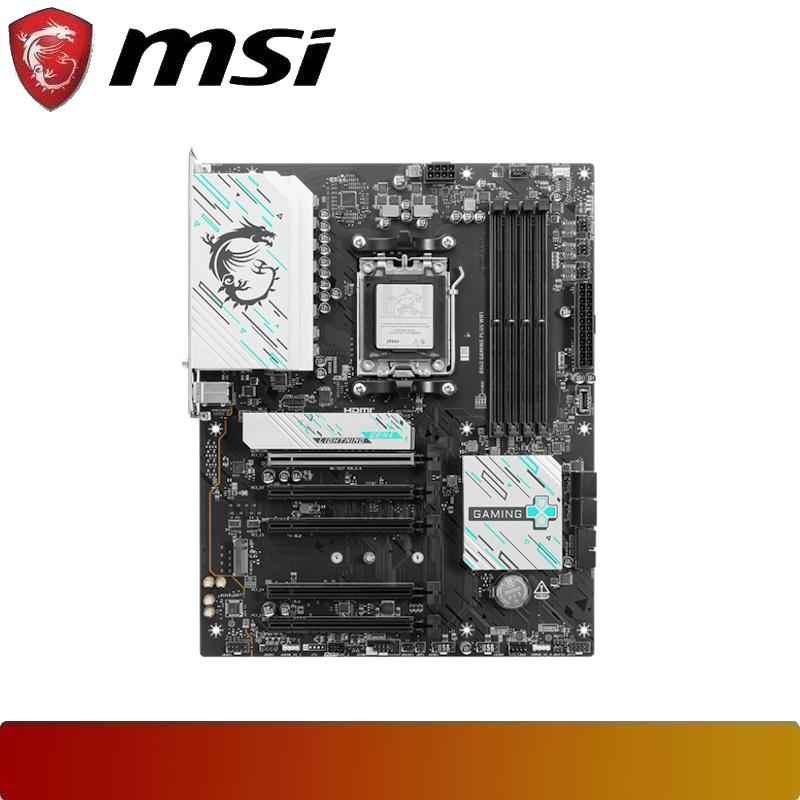

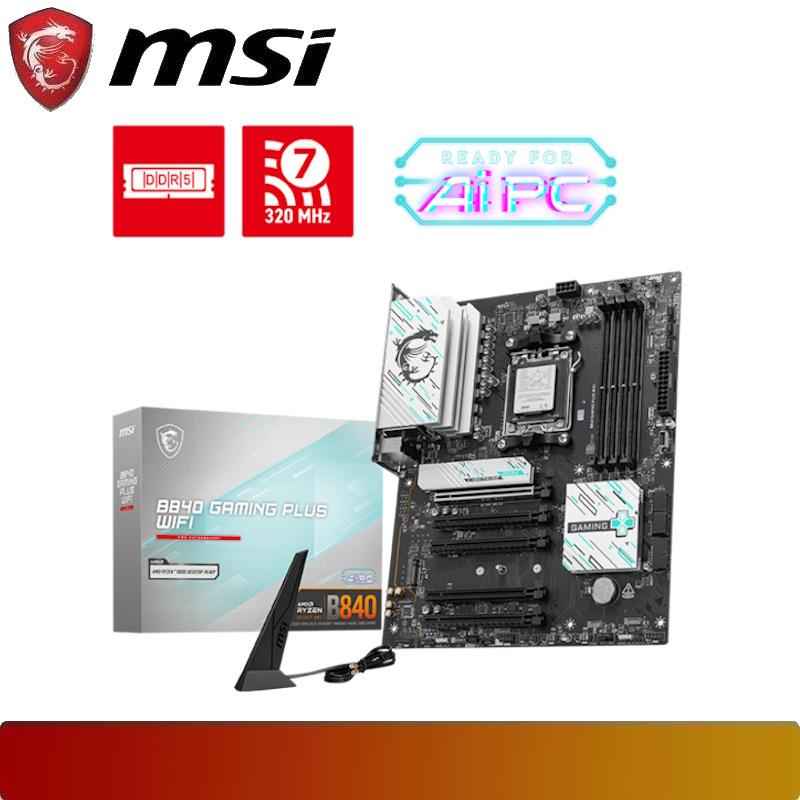

MSI B840 GAMING PLUS WIFI

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

MSI B840 GAMING PLUS WIFI



Chipset AMD B840
CPU Socket Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor ATX
Memory (DDR5)
  1. 4x DDR5 DIMMs, Maximum Memory Capacity 256GB
  2. Memory Speed Support: DDR5 up to 8000+(OC) MT/s
  3. Max overclocking frequency (from standard 4800 JEDEC):
    • 1) 1DPC 1R Max speed up to 8000+ MT/s
    • 2) 1DPC 2R Max speed up to 6400+ MT/s
    • 3) 2DPC 1R Max speed up to 6400+ MT/s
    • 4) 2DPC 2R Max speed up to 4800+ MT/s
  4. Supports Dual-Channel mode, Non-ECC un-buffered memory, and AMD EXPO™
Onboard Graphics
  1. 1x HDMI™ (Supports HDMI™ 2.1, max resolution 4K 60Hz*)

*Requires a processor with integrated graphics.
Expansion Slots
  1. 1x PCI-E x16 slot (PCI_E1 Gen PCIe 4.0, runs at x16 mode from CPU)
  2. 4x PCI-E slots (Various PCIe 3.0 x16/x1 slots from Chipset, check manual for full configuration)
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage
  1. 2x M.2 slots (Both support PCIe 4.0 x4)
  2. 4x SATA 6G ports
Networking
  1. LAN: Realtek® 8125BG 2.5Gbps LAN
  2. Wireless/Bluetooth: Wi-Fi 7 Solution (pre-installed) & Bluetooth® 5.4
RAID Support Supports RAID 0, RAID 1, and RAID 10 for SATA and RAID 0, RAID 1 for M.2 NVMe devices.
USB Ports

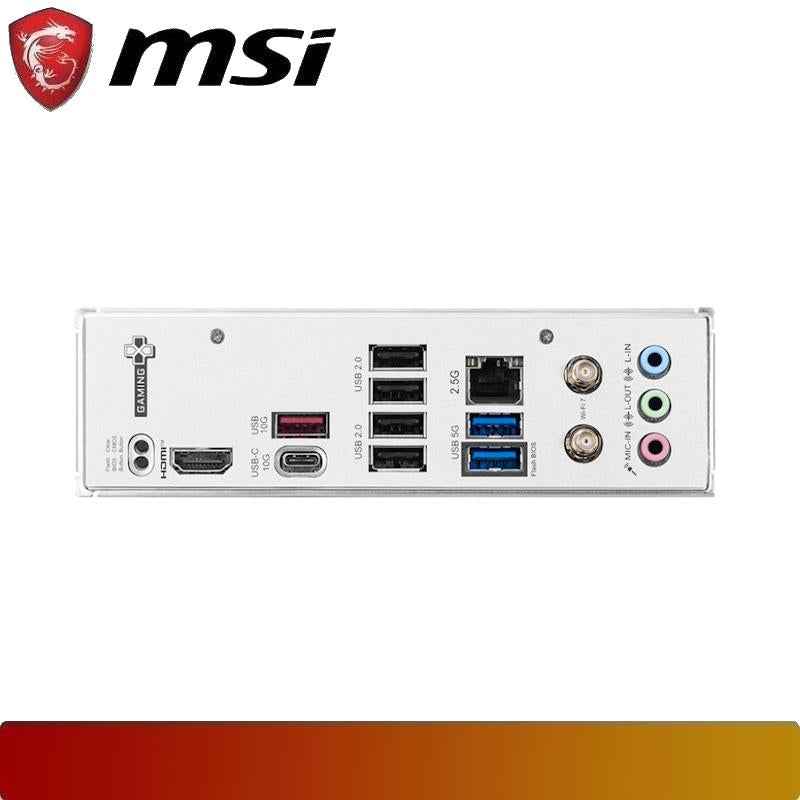

  1. Rear Panel Ports: 1x USB-C 10Gbps, 1x USB-A 10Gbps, 2x USB-A 5Gbps, 4x USB 2.0.
  2. Front/Internal Headers: 1x USB-C 5Gbps header, 1x USB-A 5Gbps header (supports 2 ports), 2x USB 2.0 headers (supports 4 ports).
LED Feature EZ Debug LED, EZ Memory Detection LED
Operating System Supports Windows® 11 64-bit
$55.91

Original: $186.38

-70%
MSI B840 GAMING PLUS WIFI—

$186.38

$55.91

Product Information

Shipping & Returns

Description



Chipset AMD B840
CPU Socket Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor ATX
Memory (DDR5)
  1. 4x DDR5 DIMMs, Maximum Memory Capacity 256GB
  2. Memory Speed Support: DDR5 up to 8000+(OC) MT/s
  3. Max overclocking frequency (from standard 4800 JEDEC):
    • 1) 1DPC 1R Max speed up to 8000+ MT/s
    • 2) 1DPC 2R Max speed up to 6400+ MT/s
    • 3) 2DPC 1R Max speed up to 6400+ MT/s
    • 4) 2DPC 2R Max speed up to 4800+ MT/s
  4. Supports Dual-Channel mode, Non-ECC un-buffered memory, and AMD EXPO™
Onboard Graphics
  1. 1x HDMI™ (Supports HDMI™ 2.1, max resolution 4K 60Hz*)

*Requires a processor with integrated graphics.
Expansion Slots
  1. 1x PCI-E x16 slot (PCI_E1 Gen PCIe 4.0, runs at x16 mode from CPU)
  2. 4x PCI-E slots (Various PCIe 3.0 x16/x1 slots from Chipset, check manual for full configuration)
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage
  1. 2x M.2 slots (Both support PCIe 4.0 x4)
  2. 4x SATA 6G ports
Networking
  1. LAN: Realtek® 8125BG 2.5Gbps LAN
  2. Wireless/Bluetooth: Wi-Fi 7 Solution (pre-installed) & Bluetooth® 5.4
RAID Support Supports RAID 0, RAID 1, and RAID 10 for SATA and RAID 0, RAID 1 for M.2 NVMe devices.
USB Ports
  1. Rear Panel Ports: 1x USB-C 10Gbps, 1x USB-A 10Gbps, 2x USB-A 5Gbps, 4x USB 2.0.
  2. Front/Internal Headers: 1x USB-C 5Gbps header, 1x USB-A 5Gbps header (supports 2 ports), 2x USB 2.0 headers (supports 4 ports).
LED Feature EZ Debug LED, EZ Memory Detection LED
Operating System Supports Windows® 11 64-bit
