MONTECH CENTURY G5 750W
| Product Name | CENTURY G5 750W |
| ATX Version | Intel ATX12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240Vac |
| Input Current | 10A |
| Input Frequency | 47-63Hz |
| Dimensions (L*B*H) | 150*140*86mm |

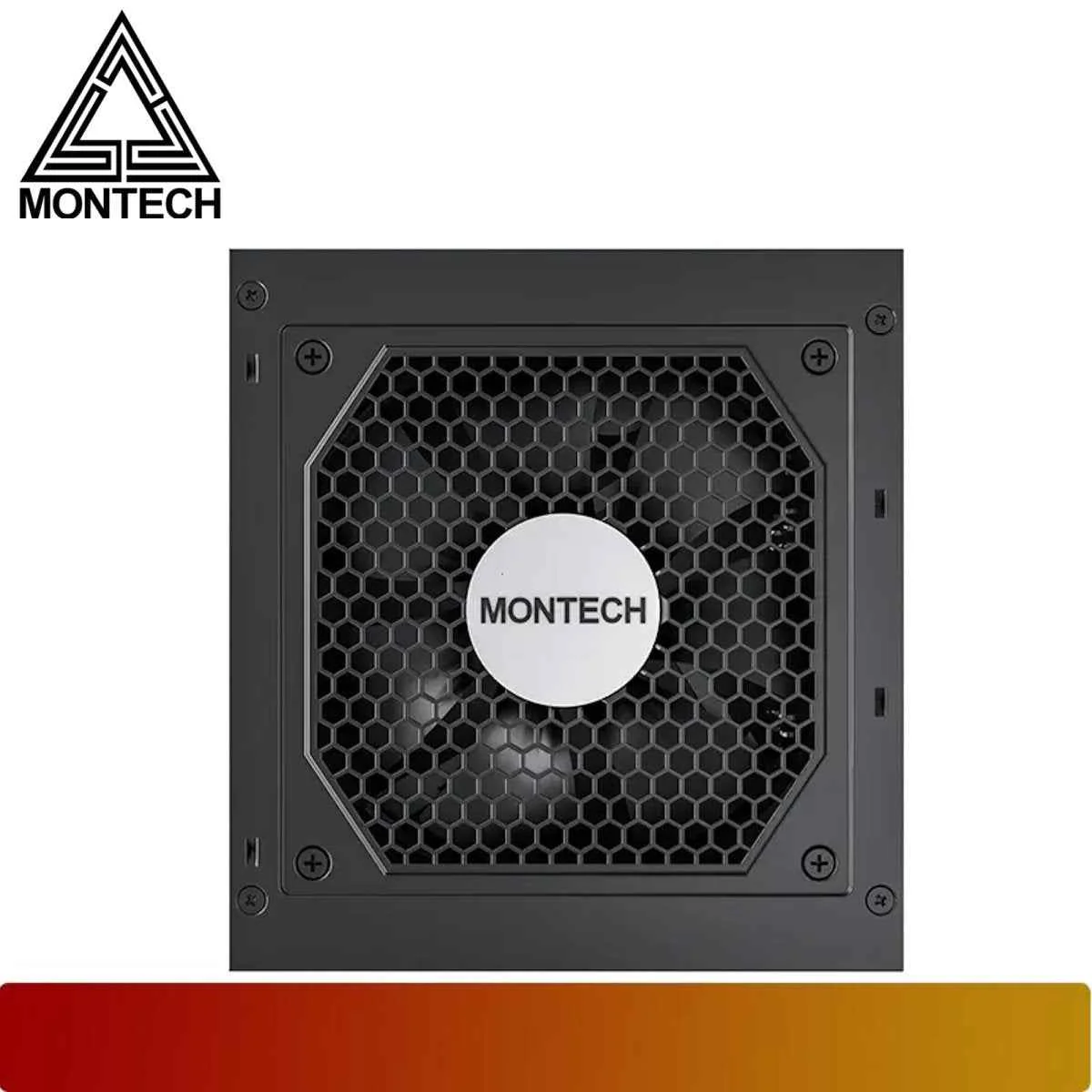

| Fan Size | 120mm (FDB Fan) |
| Efficiency | 90% Typically |
| Operating Temperature | 0-45°C |
| Protections | OVP / OPP / OTP / SCP / OCP/ UVP |
| Regulatory | cTUVus / TUV / CB / CE / FCC / RoHS / BSMI |

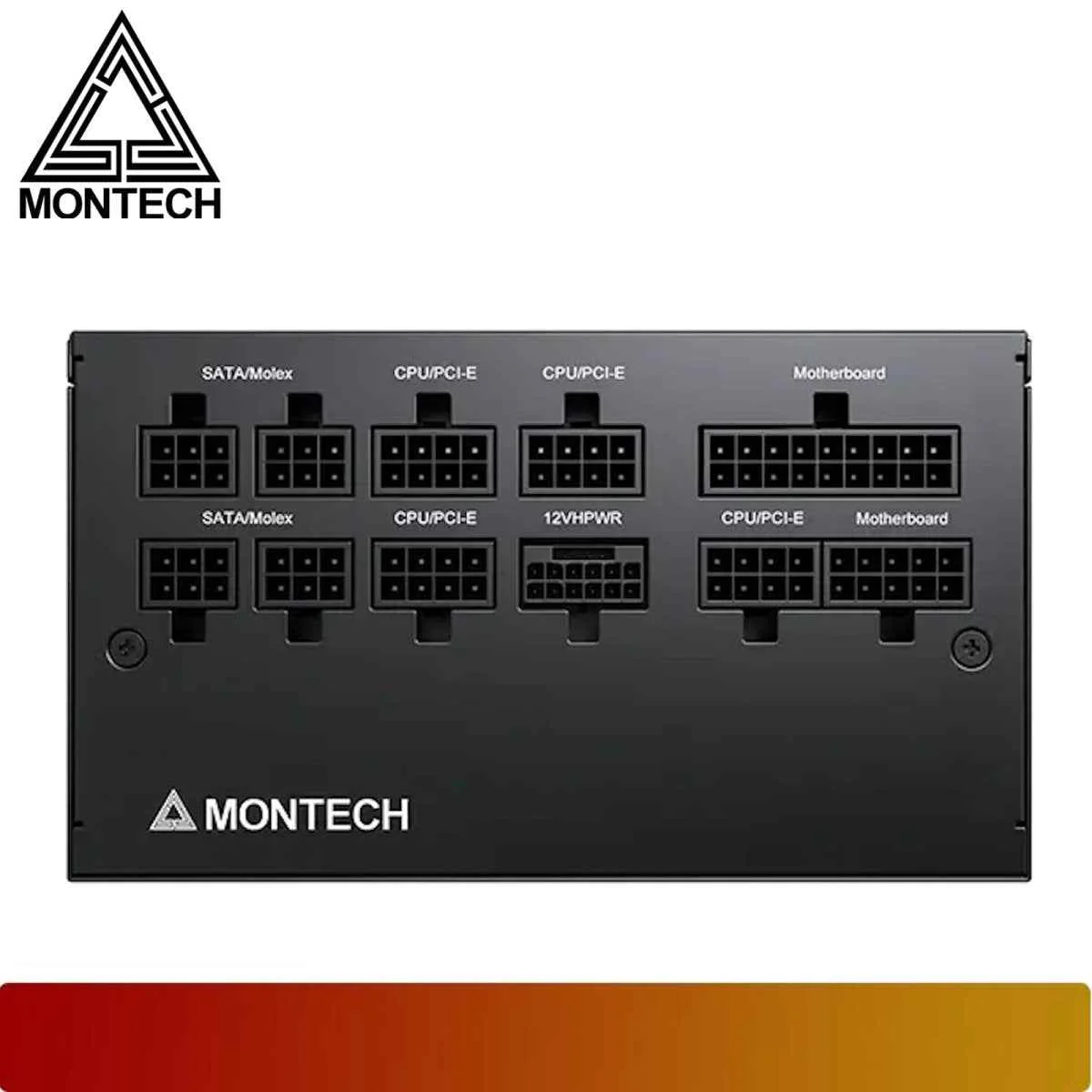

| Connectors | M/B 20+4Pin : 1 CPU 4+4Pin : 2 PCIE 6+2 : (2 Connectors)*2 SATA : (6 Connectors)*3 Molex 4Pin : (3 Connectors)*1 12+4PCIe 5.0 : 1 |

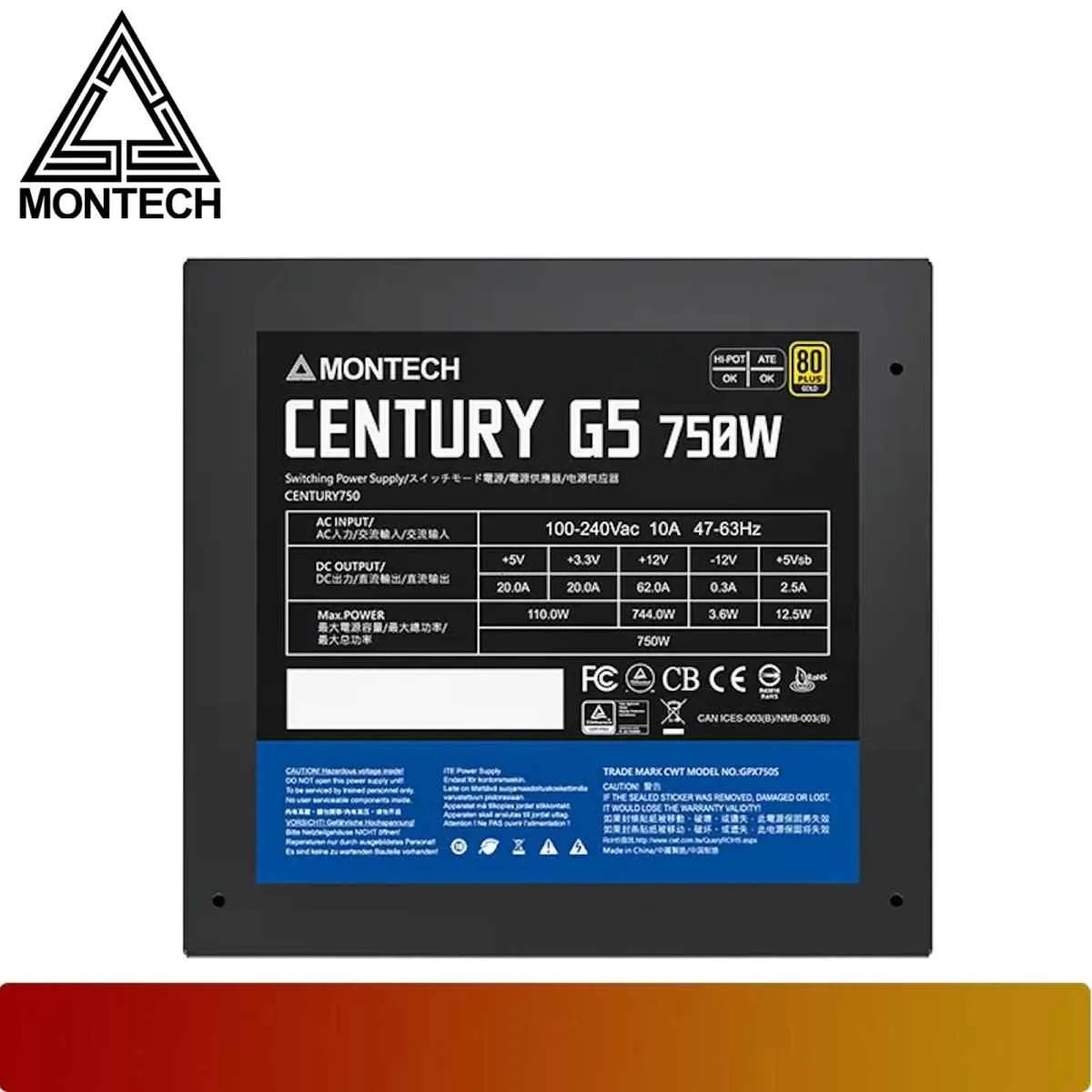

| AC INPUT | 100-240Vac 47-63Hz 10A |
| DC OUTPUT | +3.3V +5V +12V -12V +5VSB |
| Max. Output Current | 20A 20A 62.5A 0.3A 2.5A |
| Max. Output Power | 100W 744W 3.6W 12.5W |
| Total POWER | 750W |
$79.59
MONTECH CENTURY G5 750W—
$79.59
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Product Name | CENTURY G5 750W |
| ATX Version | Intel ATX12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240Vac |
| Input Current | 10A |
| Input Frequency | 47-63Hz |
| Dimensions (L*B*H) | 150*140*86mm |
| Fan Size | 120mm (FDB Fan) |
| Efficiency | 90% Typically |
| Operating Temperature | 0-45°C |
| Protections | OVP / OPP / OTP / SCP / OCP/ UVP |
| Regulatory | cTUVus / TUV / CB / CE / FCC / RoHS / BSMI |
| Connectors | M/B 20+4Pin : 1 CPU 4+4Pin : 2 PCIE 6+2 : (2 Connectors)*2 SATA : (6 Connectors)*3 Molex 4Pin : (3 Connectors)*1 12+4PCIe 5.0 : 1 |
| AC INPUT | 100-240Vac 47-63Hz 10A |
| DC OUTPUT | +3.3V +5V +12V -12V +5VSB |
| Max. Output Current | 20A 20A 62.5A 0.3A 2.5A |
| Max. Output Power | 100W 744W 3.6W 12.5W |
| Total POWER | 750W |
