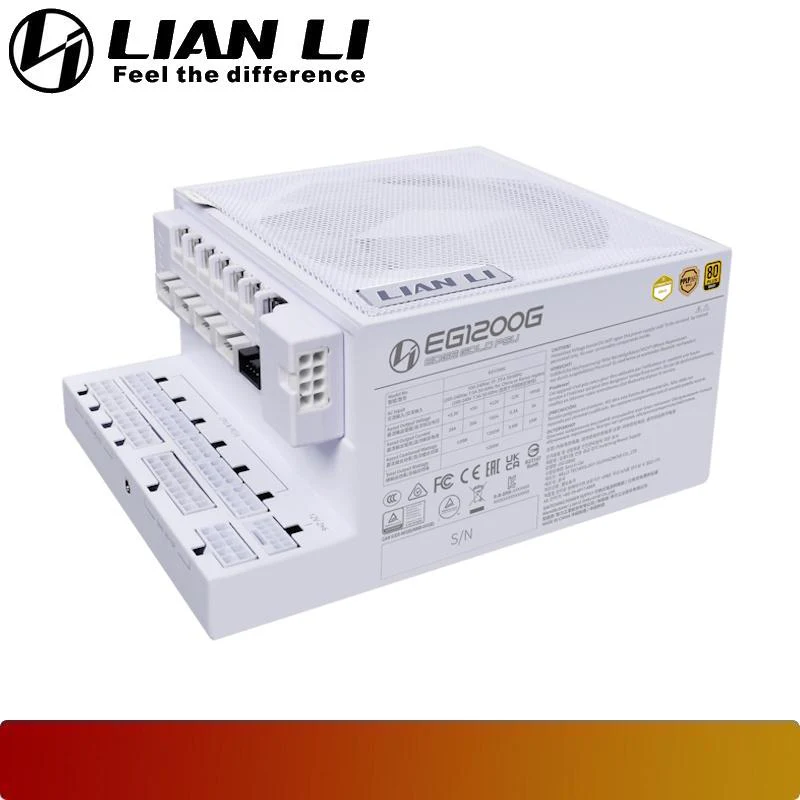

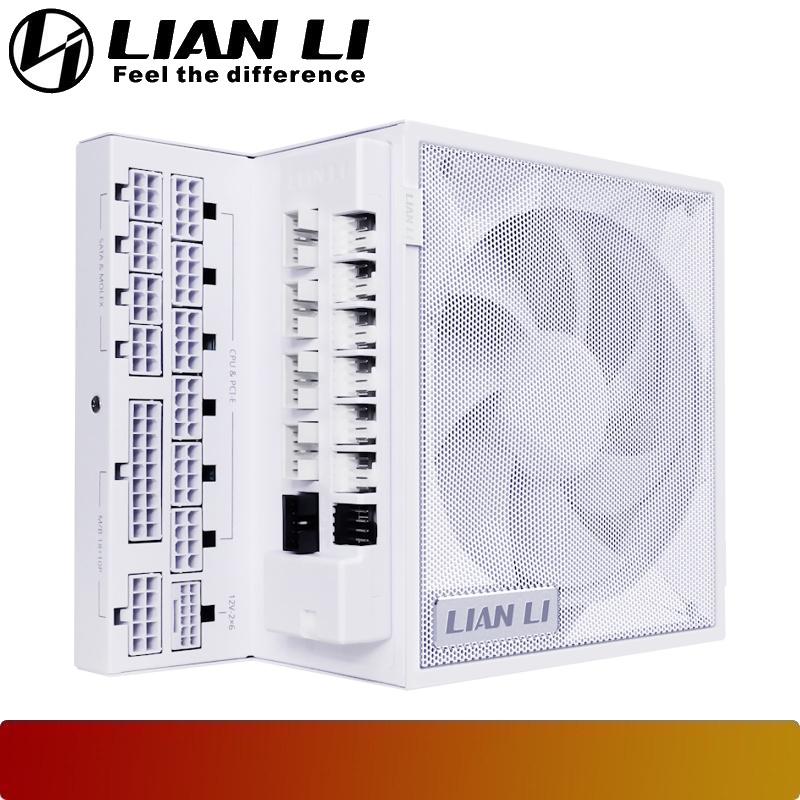

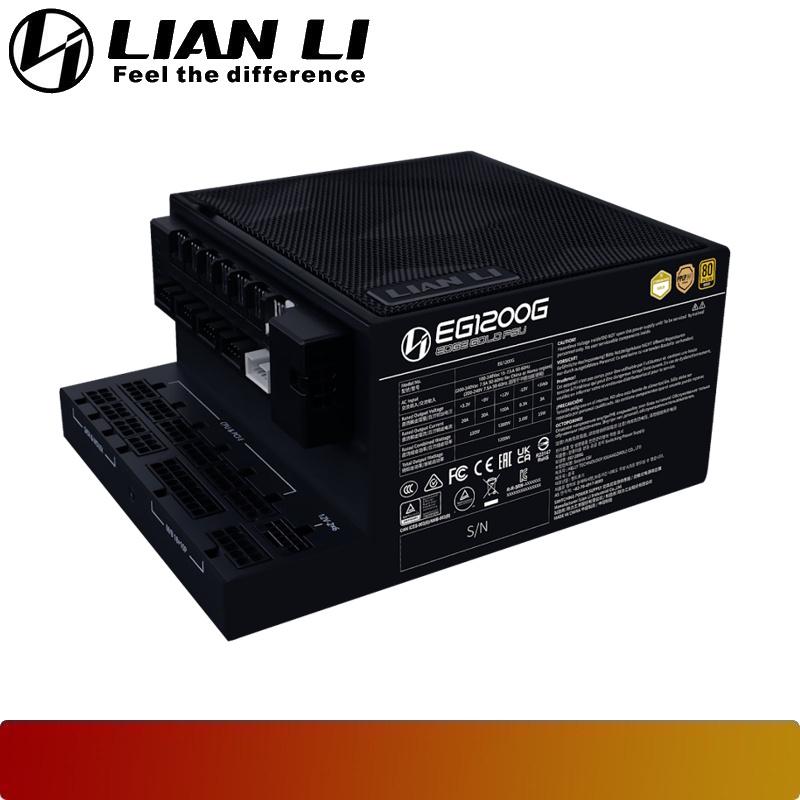

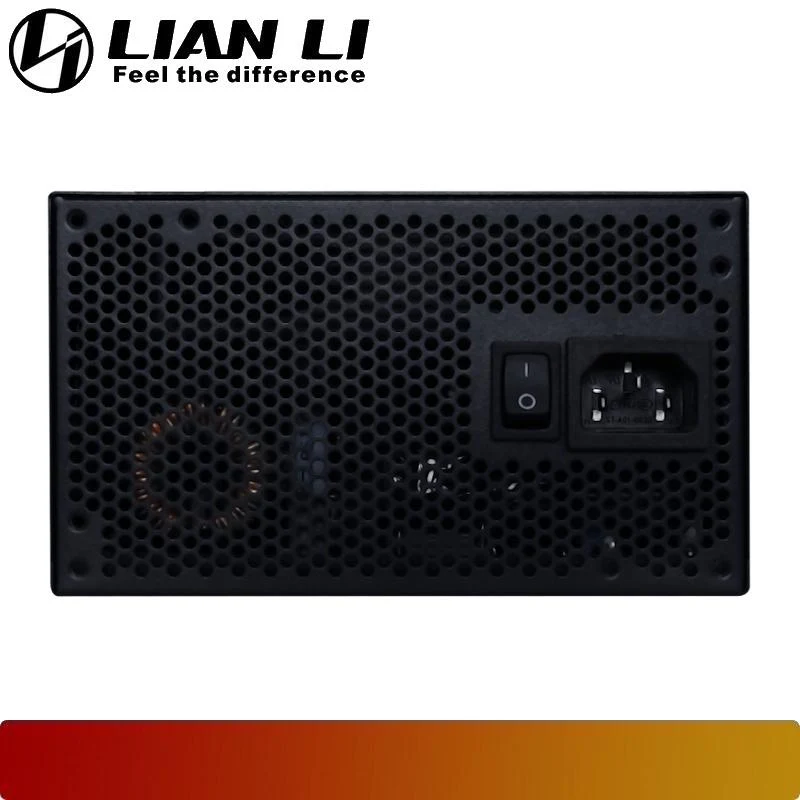

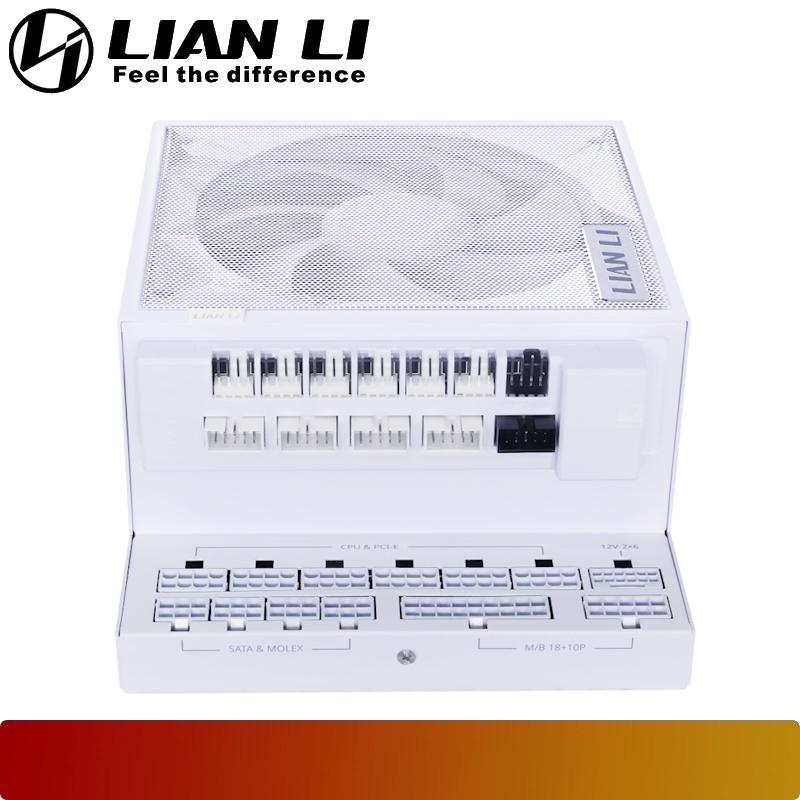

LIAN LI EDGE GOLD 1200W | PSU 1200W 80+ Gold ATX 3.1 PCIe 5.1 Fully Modular

Specifications :

PRODUCT NAME
- EDGE GOLD 1200

MODEL
- EG1200G

DIMENSIONS
- (D)182 mm X (W)86 mm X (H)150 mm

POWER SUPPLY DESIGN
- Fully modular

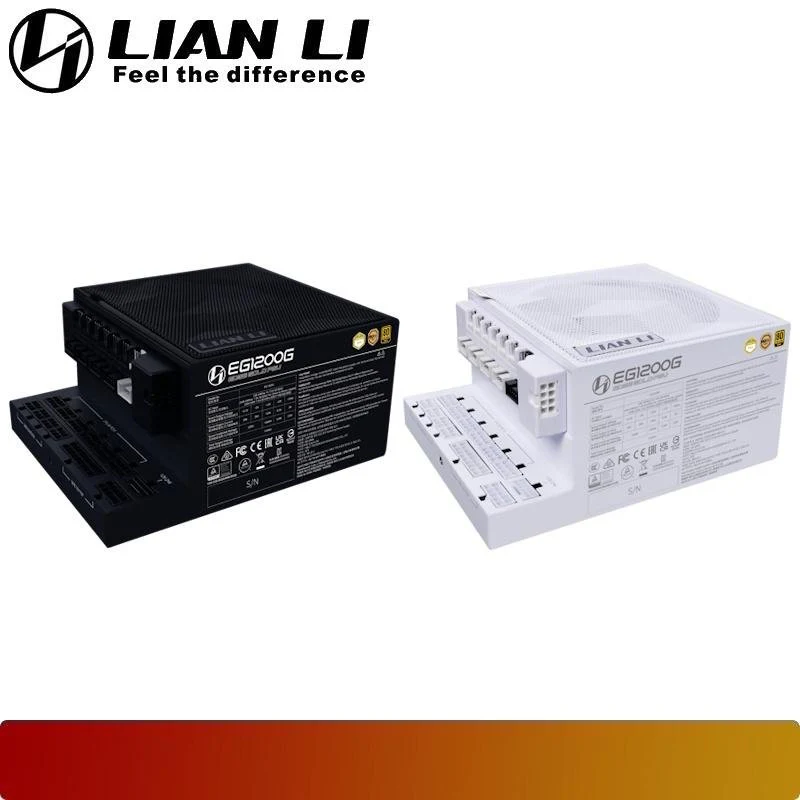

COLOR
- Black/ White

MATERIAL
- Steel

FORM FACTOR
- ATX 3.1

CERTIFICATION
- 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD

MAX. DC OUTPUT
- 1200W

COMBINED +3.3V & +5V
- 120W

COMBINED +12V
- 1200W

INPUT VOLTAGE
- 100-240Vac

INPUT FREQUENCY RANGE
- 15-7.5A 50-60Hz

PFC
- Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz

EFFICIENCY
- 91.64%MAX

PROTECTIVE CIRCUIT
- OCP/OVP/OTP/OPP/SCP/UVP

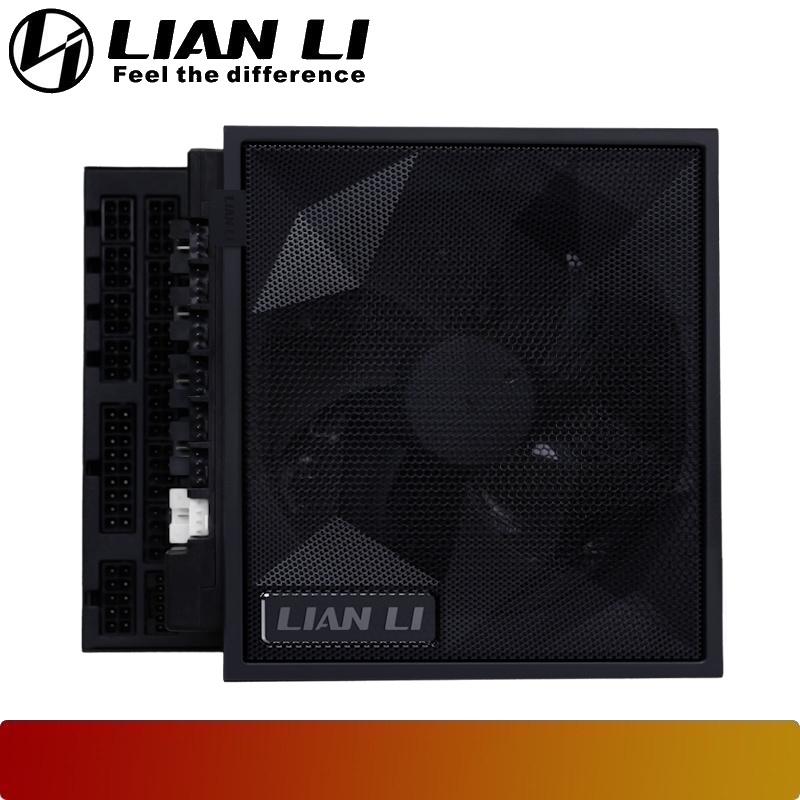

FAN TYPE
- 120mm FDB Fan

FAN SPEED
- 2400RPM

FAN NOISE LEVEL
- 39.3dBA

WARRANTY
- 10 Years ( Hub 2 Years )

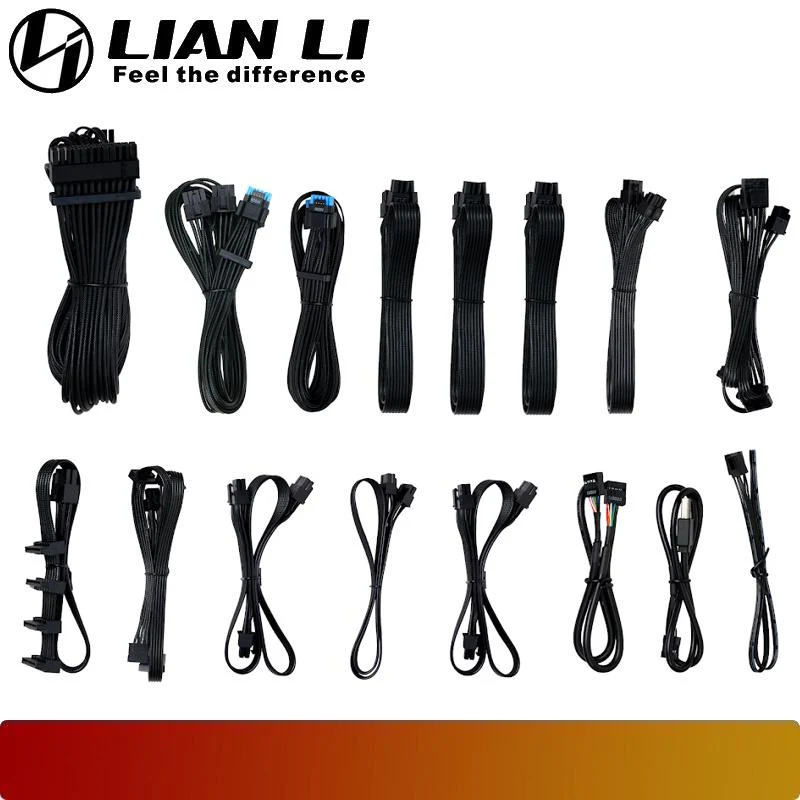

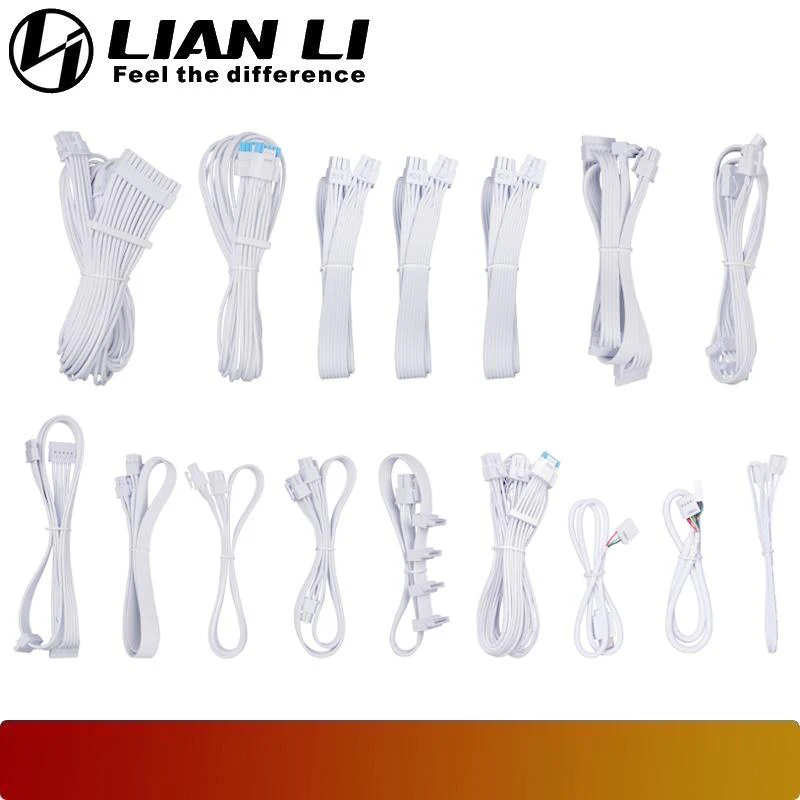

Cable
Motherboard
- 1x24/20 pin : 1
CPU/ATX 12V
- 1x8 Pin : 1
- 1X4+4 Pin : 1
GPU
- 1x8/6+2 Pin : 3
- 1x6+2 Pin : 1
- 1x 12VHPWR : 1
- 1x 12VHPWR - 2x8pin : 1
SATA
- 4x Sata (Close-type) : 1
- 4x Sata (Y-Type) : !
- 4x Sata : 1
Peripheral
- 4x4-Pin : 1
Hub
- USB*9pin - USB*9Pin : 1
- USB*9pin - Type A : 1
- Fan 3p-3p : 1
