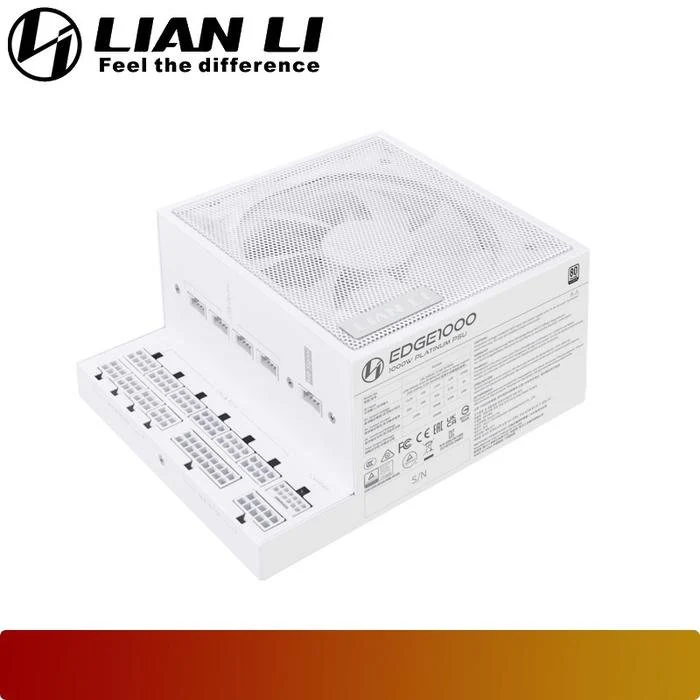

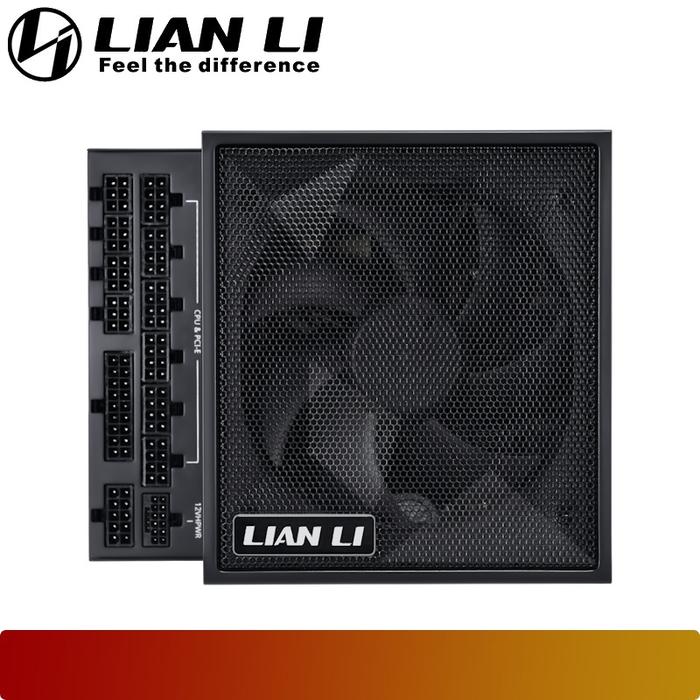

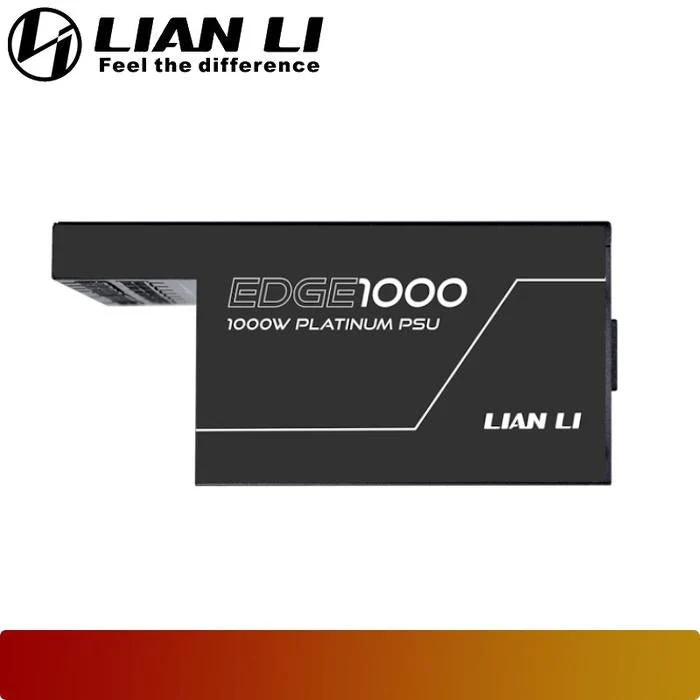

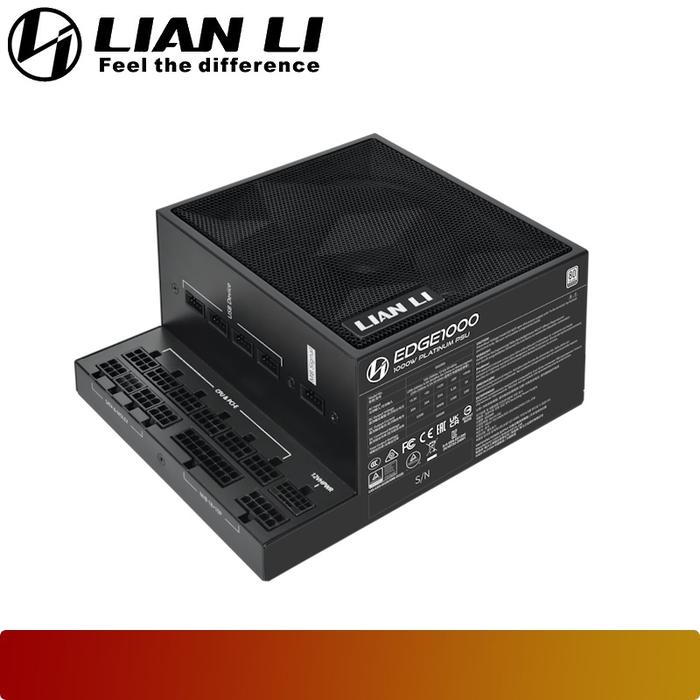

LIAN LI EDGE 1000W | PSU 1000W 80+ Platinum Fully modular

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

MODEL NAME
- EDGE1000

MODEL NO.
- EG1000

COLOR
- Black/ White

DIMENSIONS
- (D)182 mm X (W)86 mm X (H)150 mm

POWER SUPPLY DESIGN
- Fully modular

MATERIAL
- Steel

FORM FACTOR
- ATX 3.1

CERTIFICATION
- 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM

MAX. DC OUTPUT
- 1000W

COMBINED +3.3V & +5V
- 120W

COMBINED +12V
- 996W

INPUT VOLTAGE
- 100-240Vac

INPUT FREQUENCY RANGE
- 12-6A 50-60Hz

PFC
- Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz

EFFICIENCY
- 92.36% MAX

PROTECTIVE CIRCUIT
- OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP

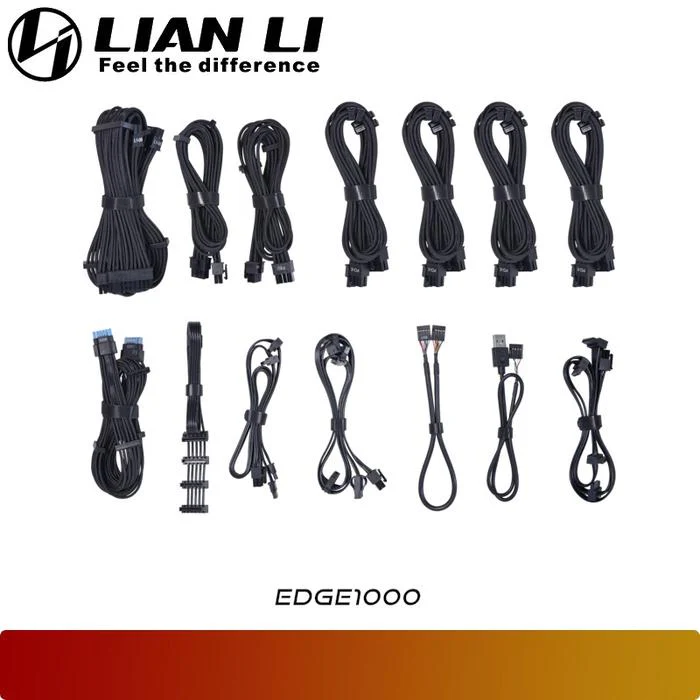

CONNECTORS
- 1 x 24/20-Pin motherboard connector (500mm) x1pcs
- 1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
- 1 x 8/6+2 Pin PCle connector (550m m) x4pcs
- 1 x 12V-2×6 connector (550mm) × 1pcs
- 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs
- 4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
- 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
- 4 x Y Type SATA connector (400mm-125mm*2) x1pcs
- USB*9pin – USB*9pin connector (350mm) × 1pcs
- USB*9pin -Type A connector (550mm) × 1pcs

FAN TYPE
- 120mm FDB Fan

FAN SPEED
- 2000RPM

FAN NOISE LEVEL\
- 25.96dBA

WARRANTY
- 10 Years
