HAVN BF 360 Flow
| Form Factor | - Mid Tower |
| Material | - SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| PC Case Dimensions (L x W x H) | - 515 x 254 x 522.6 mm |
| Warranty | - 1 year |
| Front I/O |

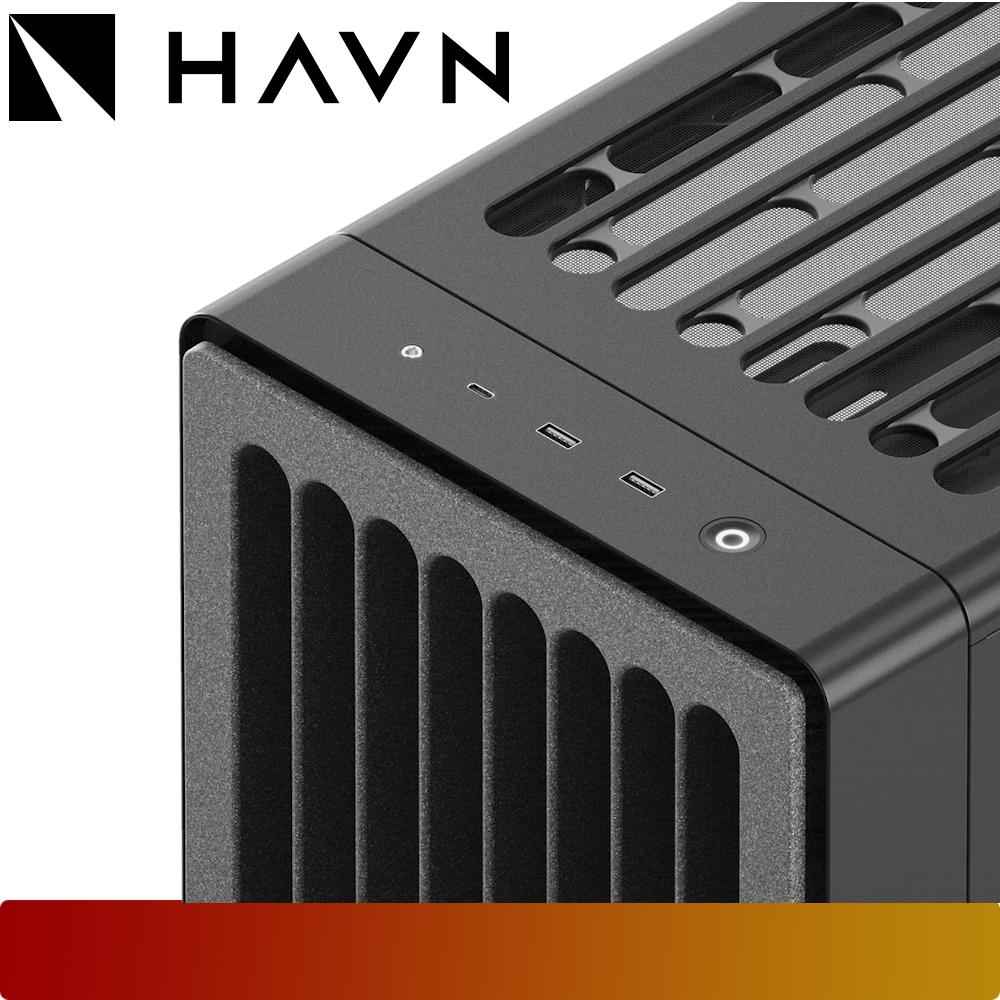

- USB 3.2 Gen 2 Type-C x1 - USB 3.2 Gen 1 Type-A x2 - Audio Jack x1 - Power & Reset Button x1 |
| Motherboard Support | - E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | - 7 |
| Fan Support |
- Maximum Amount: 6 - Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm - Front: 2 x 180 mm - Rear: 1 x 140 / 1 x 120 mm |
| Fan PWM Repeater |
- Fan Ports: 1 x PWM repeaters, 6 ports total - Location: 1 x Cable Management Tray - Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) - Fan Rated Voltage: 12V - Fan Safety Current: Up to 2.6A across 6 ports - Power Connector: 1 x SATA Power - Power Safety Current: 1 x SATA connector power input, 12V 2.6A (max) |
| CPU Tower Cooler Clearance | - Height: Up to 195 mm. |
| Liquid Cooling Support | - Top: 240 / 280 / 360 mm |
| Graphics Card Clearance | - Length: Up to 410 mm - Width: Up to 195 mm. |
| GPU Support | - 1 - 4.5 Slots |
| RAM Clearance | - If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm |
| Power Supply Support |
- ATX - Length: Up to 200mm (Clearance - 260mm) |
| Storage |
- Right Mount: 2 Storage Bays: 2 x 3.5'' / 8 x 2.5'' - Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' - Storage Bay Included: 2x (2 x 3.5'' / 4 x 2.5'') |
| Dust Filter |
- Front: 1 (Built-in) - Top: 1 (Built-in) - Rear Bottom: 1 (Removable) |
| Pre-installed Fans |
- 2x H18 Fan (Front) - Case Version - 1x H14 Fan (Rear) - Case Version (The Loopin System is available on the Retail Version only. Pre-installed case fans use single-female fan connectors.) |
Select Warna
From $153.34
HAVN BF 360 Flow—
$153.34
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Form Factor | - Mid Tower |
| Material | - SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| PC Case Dimensions (L x W x H) | - 515 x 254 x 522.6 mm |
| Warranty | - 1 year |
| Front I/O |
- USB 3.2 Gen 2 Type-C x1 - USB 3.2 Gen 1 Type-A x2 - Audio Jack x1 - Power & Reset Button x1 |
| Motherboard Support | - E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | - 7 |
| Fan Support |
- Maximum Amount: 6 - Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm - Front: 2 x 180 mm - Rear: 1 x 140 / 1 x 120 mm |
| Fan PWM Repeater |
- Fan Ports: 1 x PWM repeaters, 6 ports total - Location: 1 x Cable Management Tray - Fan Connectors: 6 ports per repeater x 4-pin PWM (Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port's signal.) - Fan Rated Voltage: 12V - Fan Safety Current: Up to 2.6A across 6 ports - Power Connector: 1 x SATA Power - Power Safety Current: 1 x SATA connector power input, 12V 2.6A (max) |
| CPU Tower Cooler Clearance | - Height: Up to 195 mm. |
| Liquid Cooling Support | - Top: 240 / 280 / 360 mm |
| Graphics Card Clearance | - Length: Up to 410 mm - Width: Up to 195 mm. |
| GPU Support | - 1 - 4.5 Slots |
| RAM Clearance | - If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm |
| Power Supply Support |
- ATX - Length: Up to 200mm (Clearance - 260mm) |
| Storage |
- Right Mount: 2 Storage Bays: 2 x 3.5'' / 8 x 2.5'' - Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5'' - Storage Bay Included: 2x (2 x 3.5'' / 4 x 2.5'') |
| Dust Filter |
- Front: 1 (Built-in) - Top: 1 (Built-in) - Rear Bottom: 1 (Removable) |
| Pre-installed Fans |
- 2x H18 Fan (Front) - Case Version - 1x H14 Fan (Rear) - Case Version (The Loopin System is available on the Retail Version only. Pre-installed case fans use single-female fan connectors.) |
