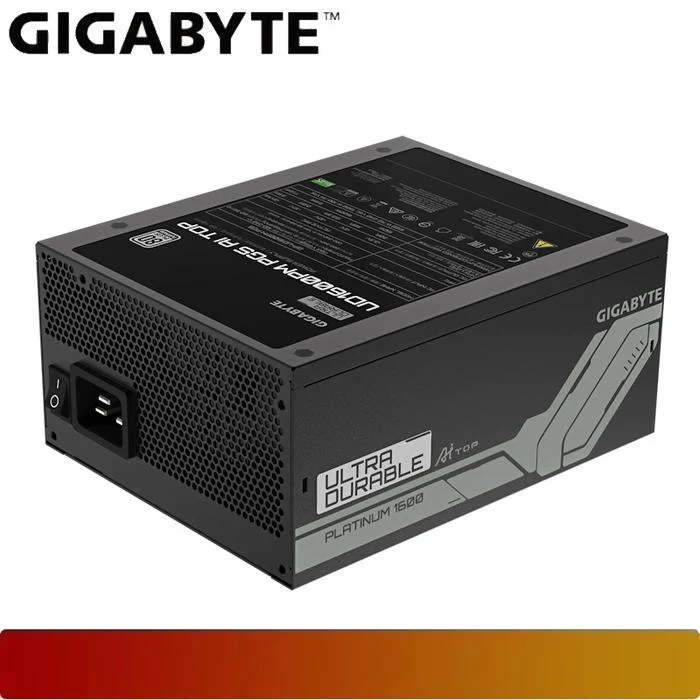

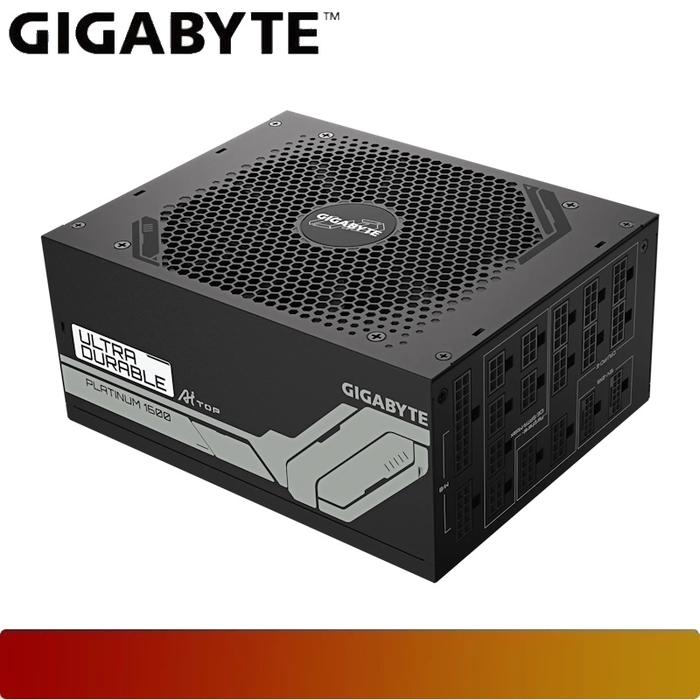

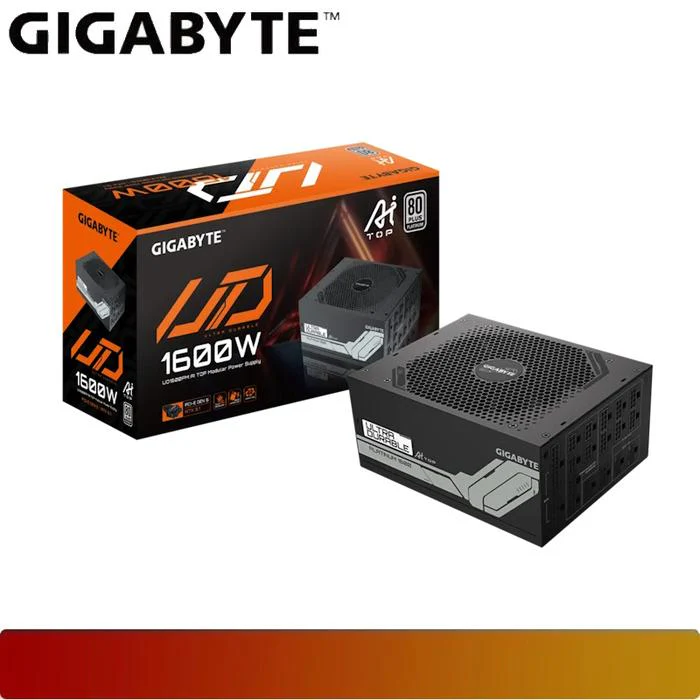

GIGABYTE UD1600PM PG5 AI TOP | PSU 1600W 80+ Platinum ATX 3.1 Flat Cable

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- GP-UD1600PM PG5

Type
- Intel Form Factor ATX 12V v3.1

PFC
- Active PFC (>0.9 typical)

Input Voltage
- 100-240 Vac (full range)

Input Current
- 15-7.5A

Input Frequency
- 60-50 Hz

Output Capacity
- 1600W

Dimension
- 150 x 190 x 86mm

Fan Type
- 140mm Double Ball Bearing fan

80 PLUS
- Platinum

Efficiency
- 92% at typical load

MTBF
- >100,000 hours

Protection
- OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
- 100-150ms

Hold Up Time
- >16ms

Cable Type
- Flat, All black

Connectors
- ATX/MB 20+4 Pin x 1 : 610mm*1
- CPU/EPS 4+4 Pin x 2 : 650mm*2
- PCI-E 16 Pin x 2 : 700mm*2
- PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2
- PCI-E 6+2 Pin x 8 : 650mm+150mm*4
- SATA x 16 : 650mm+150mm+150mm+150mm*4
- 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
