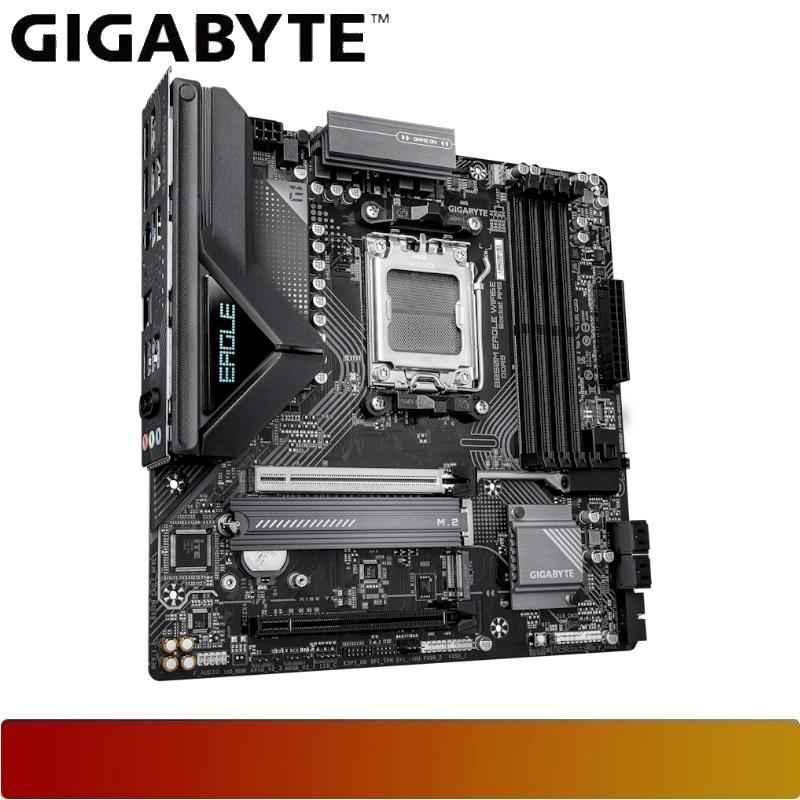

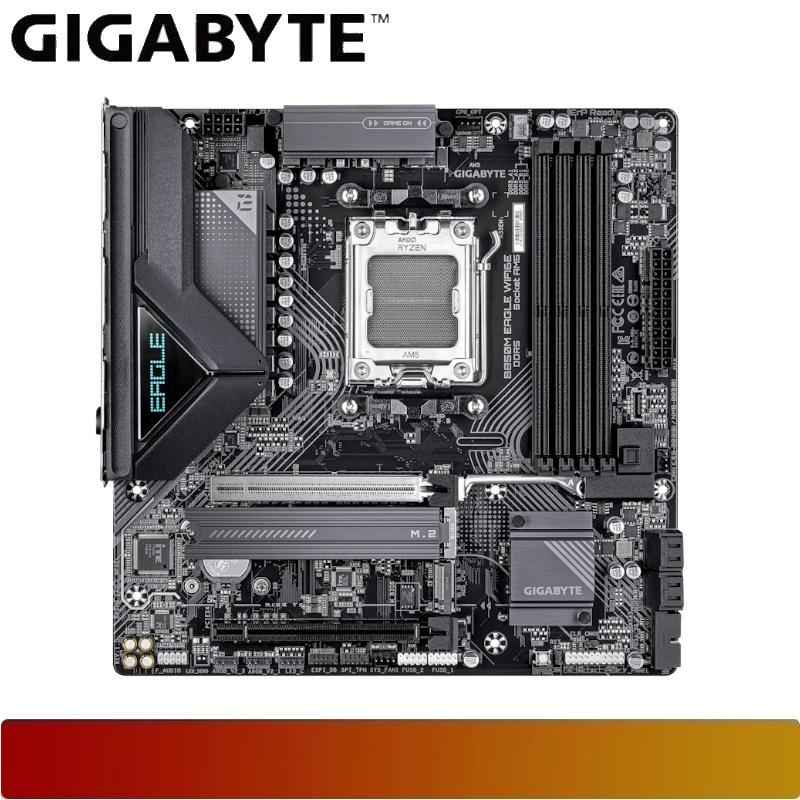

GIGABYTE B850M EAGLE WIFI6E

Chipset	AMD B850 Chipset
CPU Socket	AMD AM5 Socket (Supports AMD Ryzen™ 8000 Series/7000 Series Processors)
Form Factor	Micro ATX (24.4cm x 24.4cm)
Memory (DDR5)	4 x DDR5 DIMM sockets, Dual Channel memory architecture Memory Speed Support: DDR5 up to 8000+ (O.C.) MT/s Supports non-ECC Un-buffered DIMM and AMD EXPO™ Technology / Intel® XMP Max. capacity of system memory: 256 GB
Onboard Graphics	1x HDMI port (Max 4096x2160@60 Hz) 1x DisplayPort (Max 5120x2880@60 Hz) *Requires a Ryzen™ Processor with integrated graphics (iGPU).
Expansion Slots	1x PCI Express x16 slot (PCIe 5.0, running at x16) 1x PCI Express x16 slot (PCIe 4.0, running at x4)
Audio	Realtek® Audio CODEC, 7.1-Channel High Definition Audio, Supports S/PDIF Out
Storage	3x M.2 slots total: 1x M.2 (PCIe 5.0 x4) + 2x M.2 (PCIe 4.0 x4) 4x SATA 6Gb/s ports
Networking	LAN: Realtek® 2.5GbE LAN chip Wireless/Bluetooth: Wi-Fi 6E (802.11ax) & BLUETOOTH 5.3
RAID Support	Supports RAID 0, RAID 1, and RAID 10 for NVMe SSD and SATA storage devices.
USB Ports	Rear Panel: 1x USB 3.2 Gen 2x2 Type-C® (20Gbps), 4x USB 3.2 Gen 2 Type-A (10Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps) Internal Headers: 1x USB 3.2 Gen 2 Type-C® header, 2x USB 3.2 Gen 1 headers (supports 4 ports), 2x USB 2.0/1.1 headers (supports 4 ports)
DIY Features	Q-Flash Plus Button, EZ-Latch Plus (PCIe & M.2), H/W Monitoring, Integrated I/O Shield
Operating System	Supports Windows 11 64-bit

$178.12

GIGABYTE B850M EAGLE WIFI6E—

$178.12

Product Information

Shipping & Returns

Description

Chipset	AMD B850 Chipset
CPU Socket	AMD AM5 Socket (Supports AMD Ryzen™ 8000 Series/7000 Series Processors)
Form Factor	Micro ATX (24.4cm x 24.4cm)
Memory (DDR5)	4 x DDR5 DIMM sockets, Dual Channel memory architecture Memory Speed Support: DDR5 up to 8000+ (O.C.) MT/s Supports non-ECC Un-buffered DIMM and AMD EXPO™ Technology / Intel® XMP Max. capacity of system memory: 256 GB
Onboard Graphics	1x HDMI port (Max 4096x2160@60 Hz) 1x DisplayPort (Max 5120x2880@60 Hz) *Requires a Ryzen™ Processor with integrated graphics (iGPU).
Expansion Slots	1x PCI Express x16 slot (PCIe 5.0, running at x16) 1x PCI Express x16 slot (PCIe 4.0, running at x4)
Audio	Realtek® Audio CODEC, 7.1-Channel High Definition Audio, Supports S/PDIF Out
Storage	3x M.2 slots total: 1x M.2 (PCIe 5.0 x4) + 2x M.2 (PCIe 4.0 x4) 4x SATA 6Gb/s ports
Networking	LAN: Realtek® 2.5GbE LAN chip Wireless/Bluetooth: Wi-Fi 6E (802.11ax) & BLUETOOTH 5.3
RAID Support	Supports RAID 0, RAID 1, and RAID 10 for NVMe SSD and SATA storage devices.
USB Ports	Rear Panel: 1x USB 3.2 Gen 2x2 Type-C® (20Gbps), 4x USB 3.2 Gen 2 Type-A (10Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps) Internal Headers: 1x USB 3.2 Gen 2 Type-C® header, 2x USB 3.2 Gen 1 headers (supports 4 ports), 2x USB 2.0/1.1 headers (supports 4 ports)
DIY Features	Q-Flash Plus Button, EZ-Latch Plus (PCIe & M.2), H/W Monitoring, Integrated I/O Shield
Operating System	Supports Windows 11 64-bit
