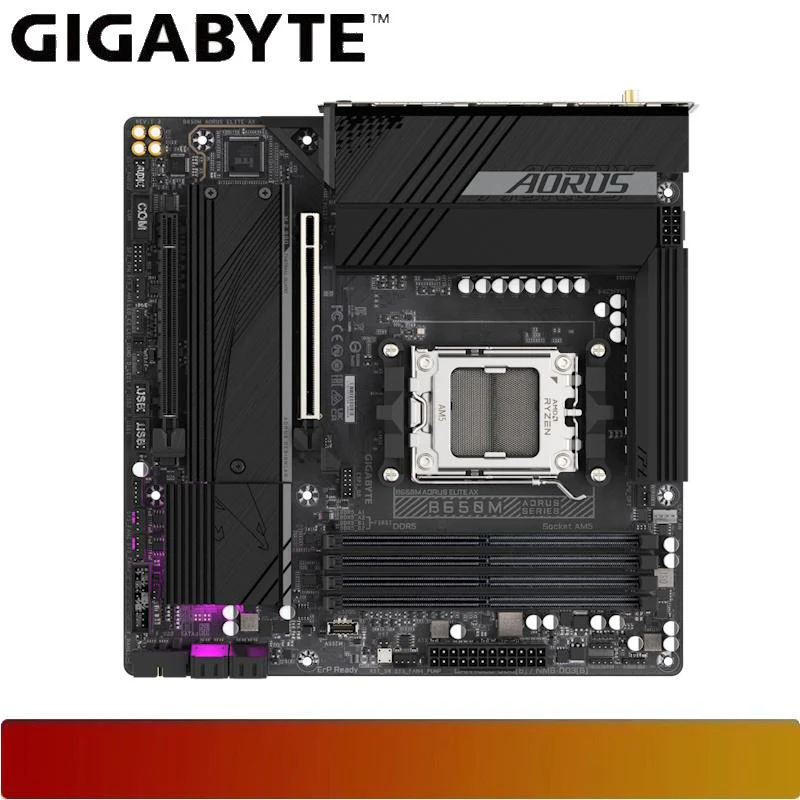

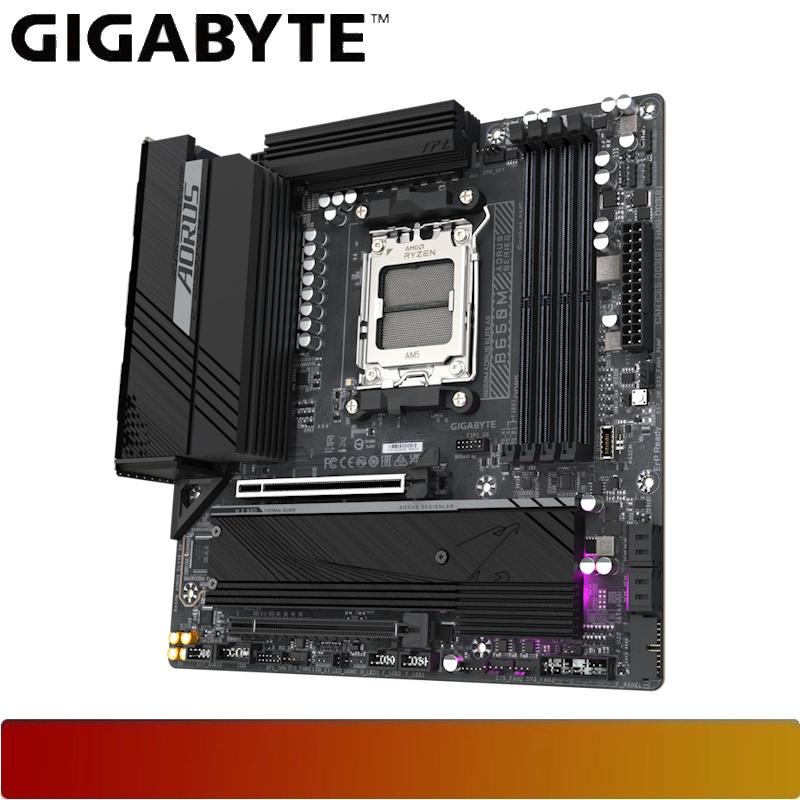

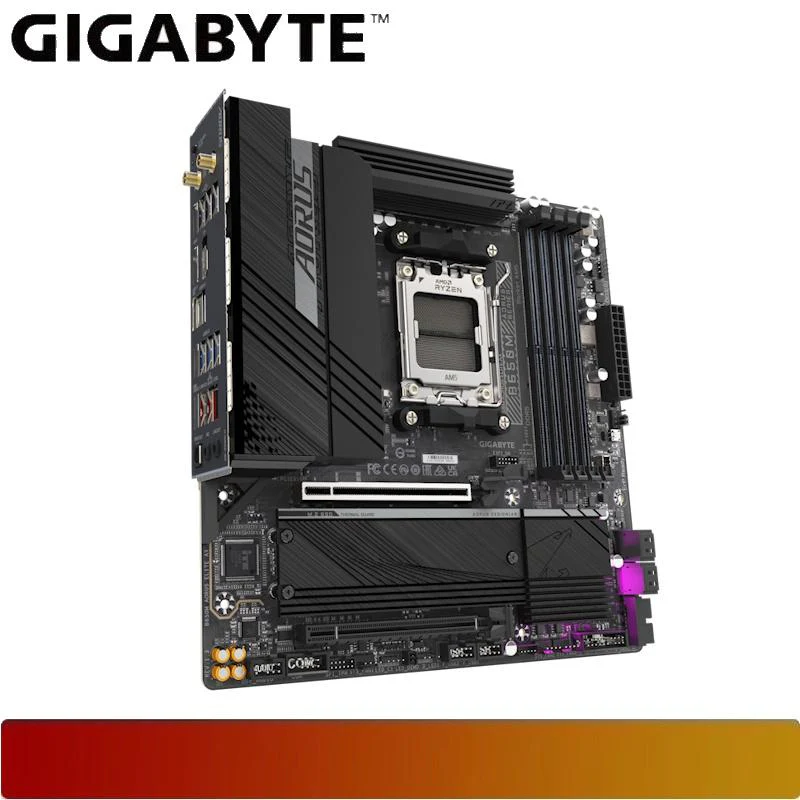

GIGABYTE B650M AORUS ELITE AX
| Model | B650M AORUS ELITE AX (rev. 1.3) |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support for DDR5 8000(OC)/.../4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB Dual channel memory architecture, support for AMD EXPO™ & XMP |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort (max. 3840x2160@144 Hz) 1 x HDMI port (max. 4096x2160@60 Hz) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & Bluetooth | Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.2/1.3): WIFI a/b/g/n/ac/ax (2.4/5/6 GHz) & BLUETOOTH 5.3 |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16, CPU Integrated, supports PCIe 4.0 x16/x8/x4 mode) 1 x PCI Express x16 slot (PCIEX4, Chipset Integrated, supports PCIe 4.0 x4 mode) |
| Storage Interface | 1 x M.2 connector (M2A_CPU, supports **PCIe 5.0 x4/x2** SSDs) 1 x M.2 connector (M2B_CPU, supports PCIe 4.0 x4/x2 SSDs) 4 x SATA 6Gb/s connectors Support for RAID 0, 1, dan 10 (NVMe SSDs dan SATA devices) |
| USB (Rear Panel) | 1 x USB Type-C® port (USB 3.2 Gen 2) 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| Internal I/O Headers | 1 x USB Type-C® header (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x M.2, 4 x SATA, Fan/Pump Headers (Total 5), Addressable/RGB LED Headers, TPM, Serial Port Header, dll. |

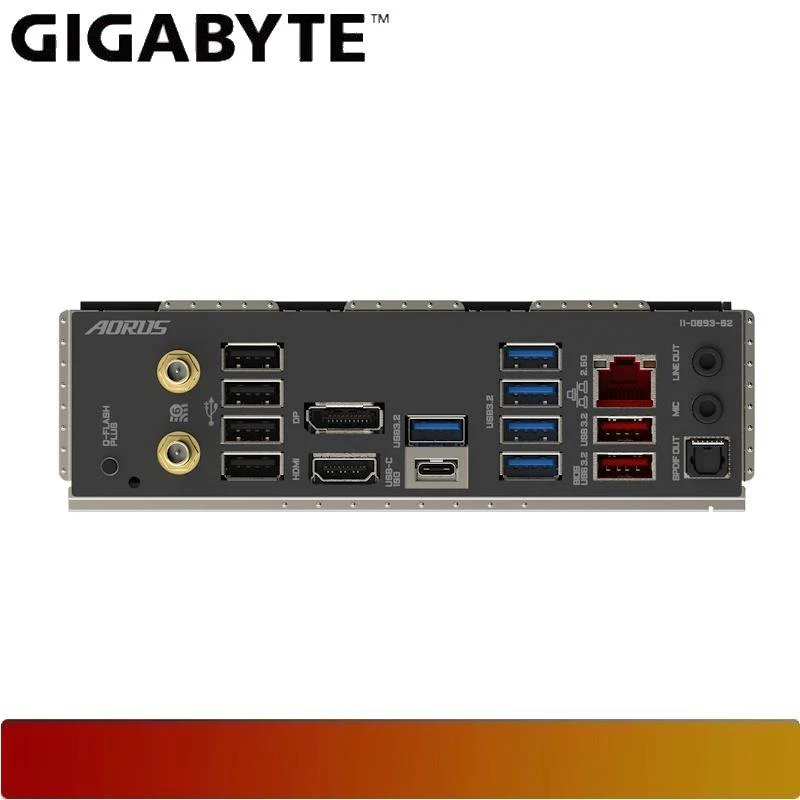

| Back Panel Connectors | Q-Flash Plus button, 2x SMA antenna, DisplayPort, HDMI, 1x USB Type-C Gen 2, 2x USB 3.2 Gen 2 Type-A (red), 5x USB 3.2 Gen 1, 4x USB 2.0/1.1, RJ-45, Optical S/PDIF Out, 2x Audio Jacks |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| Operating System | Support for Windows 11 64-bit dan Windows 10 64-bit |
