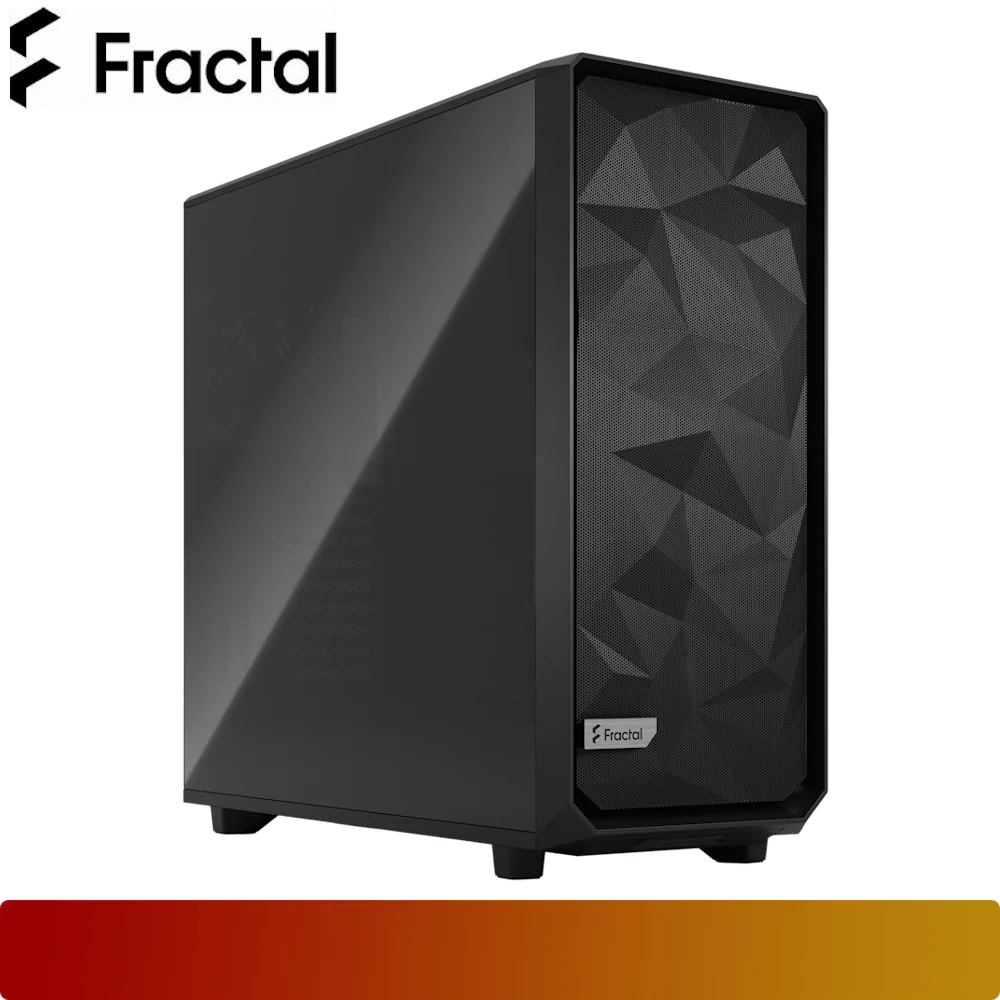

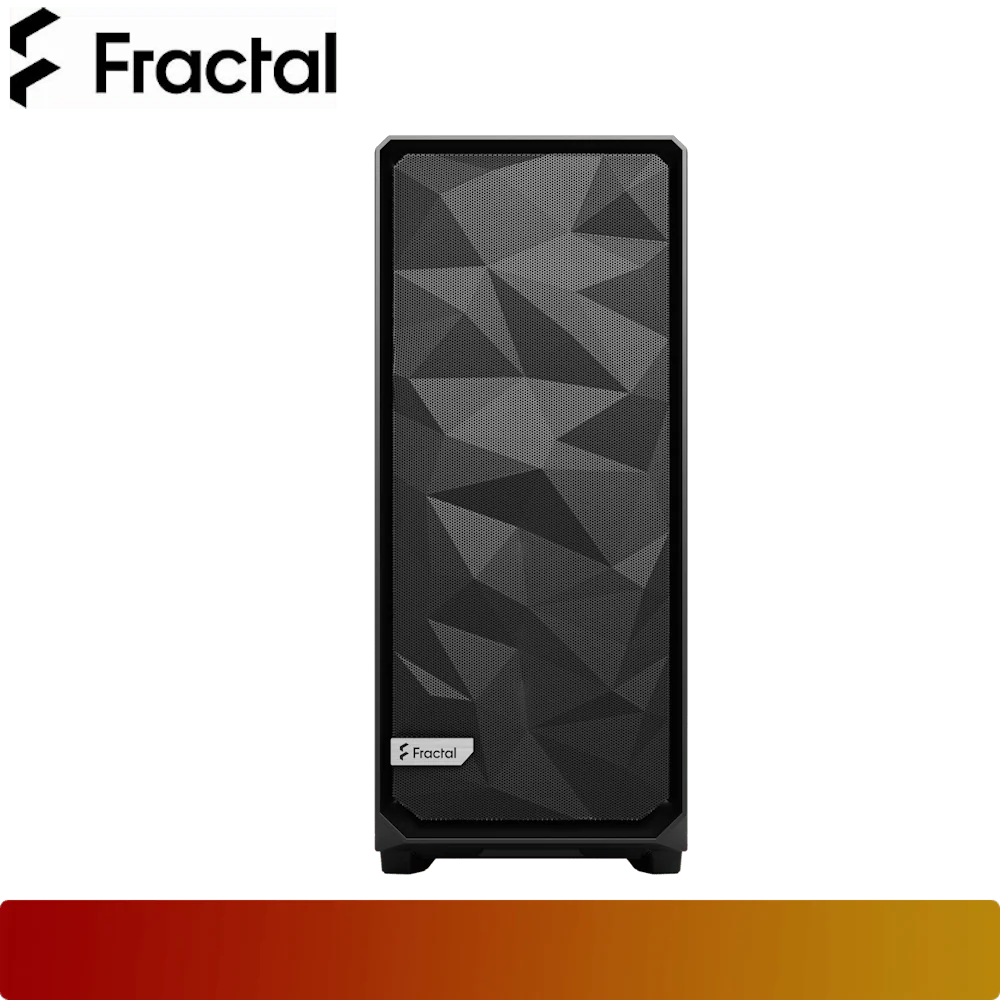

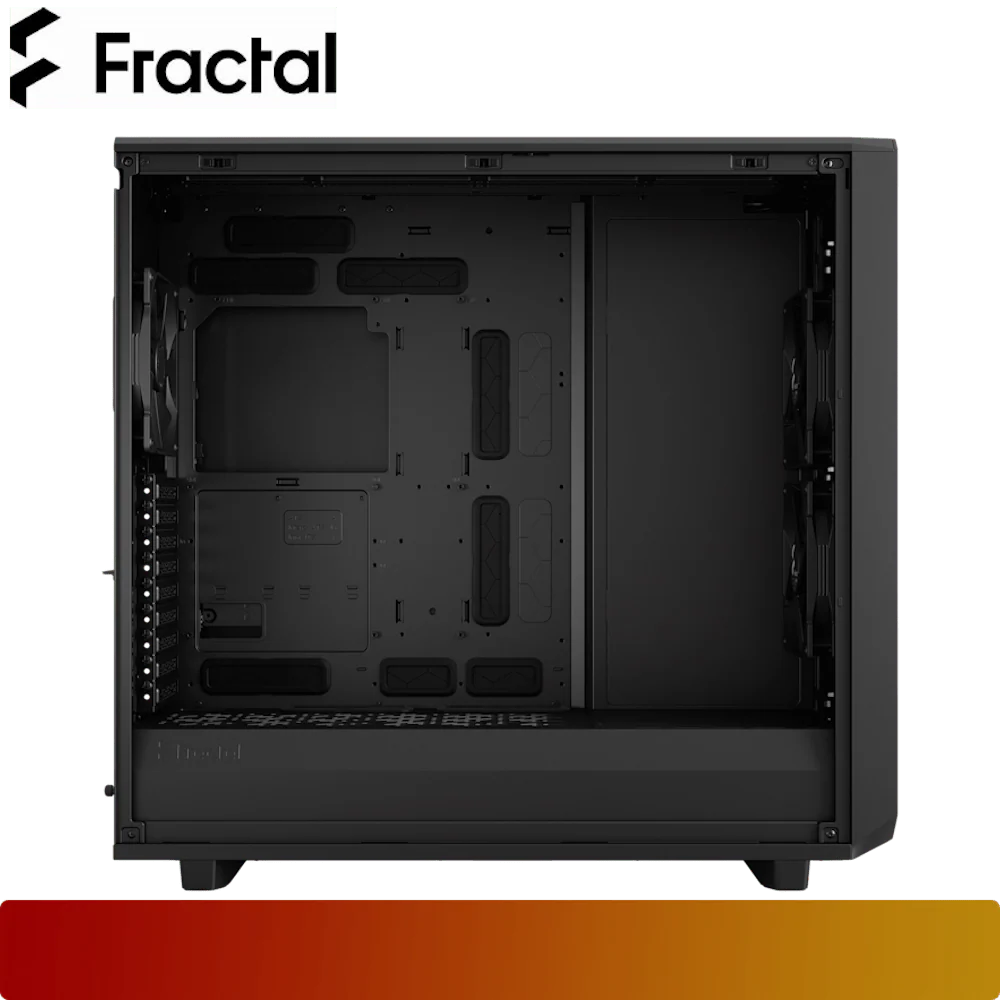

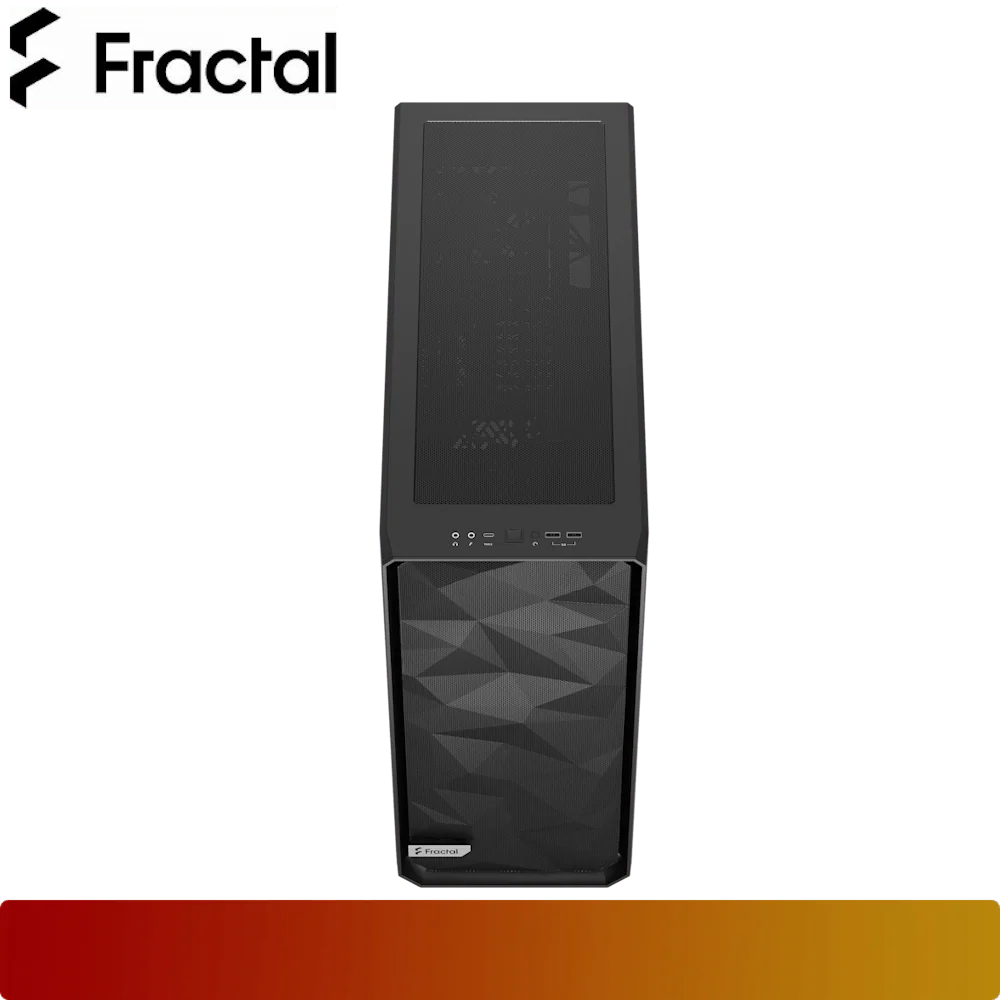

Fractal Design Meshify 2 XL
| General | |
|---|---|
| 3.5"/2.5" Universal drive mounts | 6 included, 18 positions total + 2 Multibrackets |
| Dedicated 2.5" drive mounts | 2 included, 5 positions total |
| Expansion slots | 9 + 3 |
| Front interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 11x 120 mm or 9x 140 mm |
| Front fan | 4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included) |
| Top fan | 4x 120 mm or 3x 140 mm |
| Rear fan | 1x 120/140 mm, (1x Dynamic X2 GP-14 included) |
| Bottom fan | 2x 120/140 mm |
| Dust filters | Top, front and bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Tempered glass dark tint |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB |
| Power supply type | ATX |
| PSU max length | 250 mm (both HDD cages installed) |
| GPU max length | Storage layout: 340 mm Open layout: 530 mm (505 mm w/ front fan) |
| CPU cooler max height | 185 mm |
| Front radiator | Up to 480/420 mm |
| Top radiator | Up to 480/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| Cable routing space | 30 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 600 x 240 x 566 mm |
| Case dimensions w/o feet/protrusions/screws | 588 x 240 x 547 mm |
| Package dimensions (LxWxH) | 651 x 330 x 684 mm |
| Other | |
| Warranty | 2 Years |
| Package contents | Meshify 2 XL Case, user manual, accessory box, screw box |
| Product code | Dark TG: FD-C-MES2X-01, Light TG: FD-C-MES2X-02 |
Select Type
From $56.62
Original: $188.74
-70%Fractal Design Meshify 2 XL—
$188.74
$56.62Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| General | |
|---|---|
| 3.5"/2.5" Universal drive mounts | 6 included, 18 positions total + 2 Multibrackets |
| Dedicated 2.5" drive mounts | 2 included, 5 positions total |
| Expansion slots | 9 + 3 |
| Front interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, Audio I/O, Power button, Reset button |
| Total fan mounts | 11x 120 mm or 9x 140 mm |
| Front fan | 4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included) |
| Top fan | 4x 120 mm or 3x 140 mm |
| Rear fan | 1x 120/140 mm, (1x Dynamic X2 GP-14 included) |
| Bottom fan | 2x 120/140 mm |
| Dust filters | Top, front and bottom |
| Fixed velcro straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Tempered glass dark tint |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB |
| Power supply type | ATX |
| PSU max length | 250 mm (both HDD cages installed) |
| GPU max length | Storage layout: 340 mm Open layout: 530 mm (505 mm w/ front fan) |
| CPU cooler max height | 185 mm |
| Front radiator | Up to 480/420 mm |
| Top radiator | Up to 480/420 mm |
| Rear radiator | 120 mm |
| Bottom radiator | Up to 240/280 mm |
| Cable routing space | 30 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 600 x 240 x 566 mm |
| Case dimensions w/o feet/protrusions/screws | 588 x 240 x 547 mm |
| Package dimensions (LxWxH) | 651 x 330 x 684 mm |
| Other | |
| Warranty | 2 Years |
| Package contents | Meshify 2 XL Case, user manual, accessory box, screw box |
| Product code | Dark TG: FD-C-MES2X-01, Light TG: FD-C-MES2X-02 |
