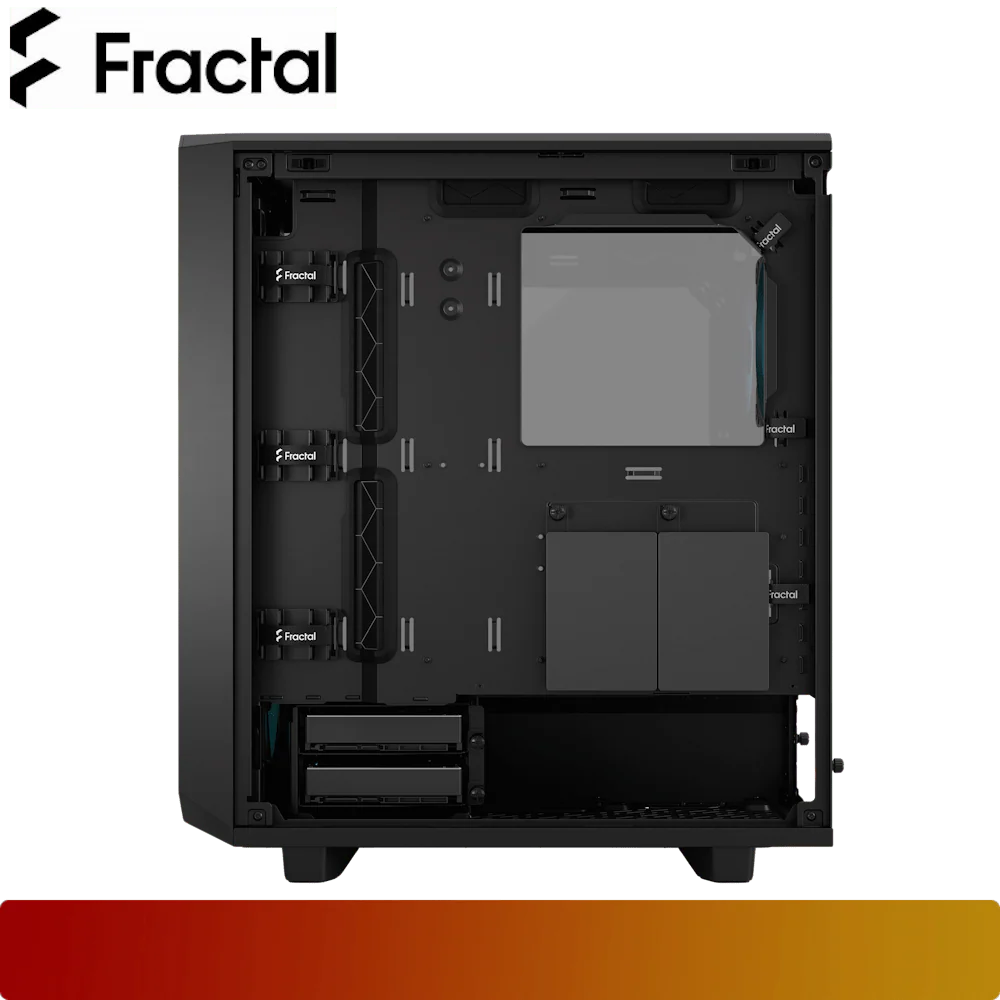

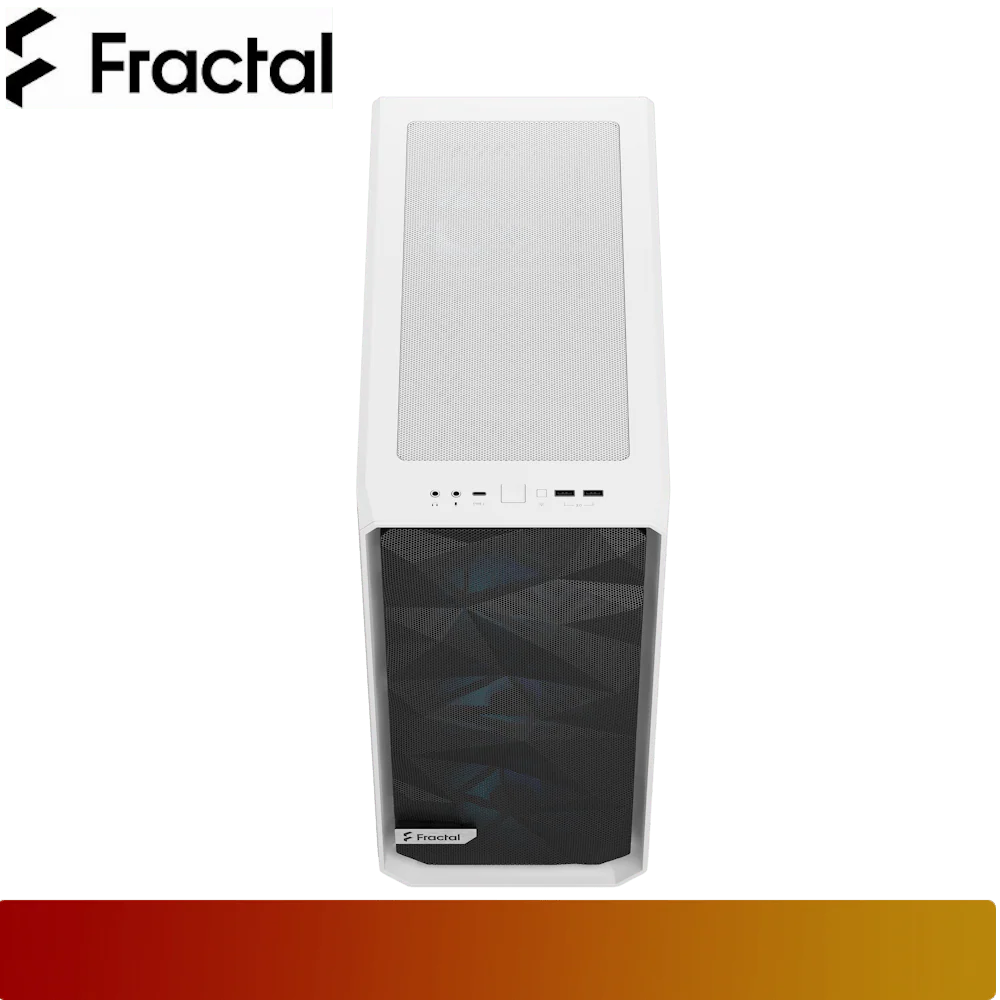

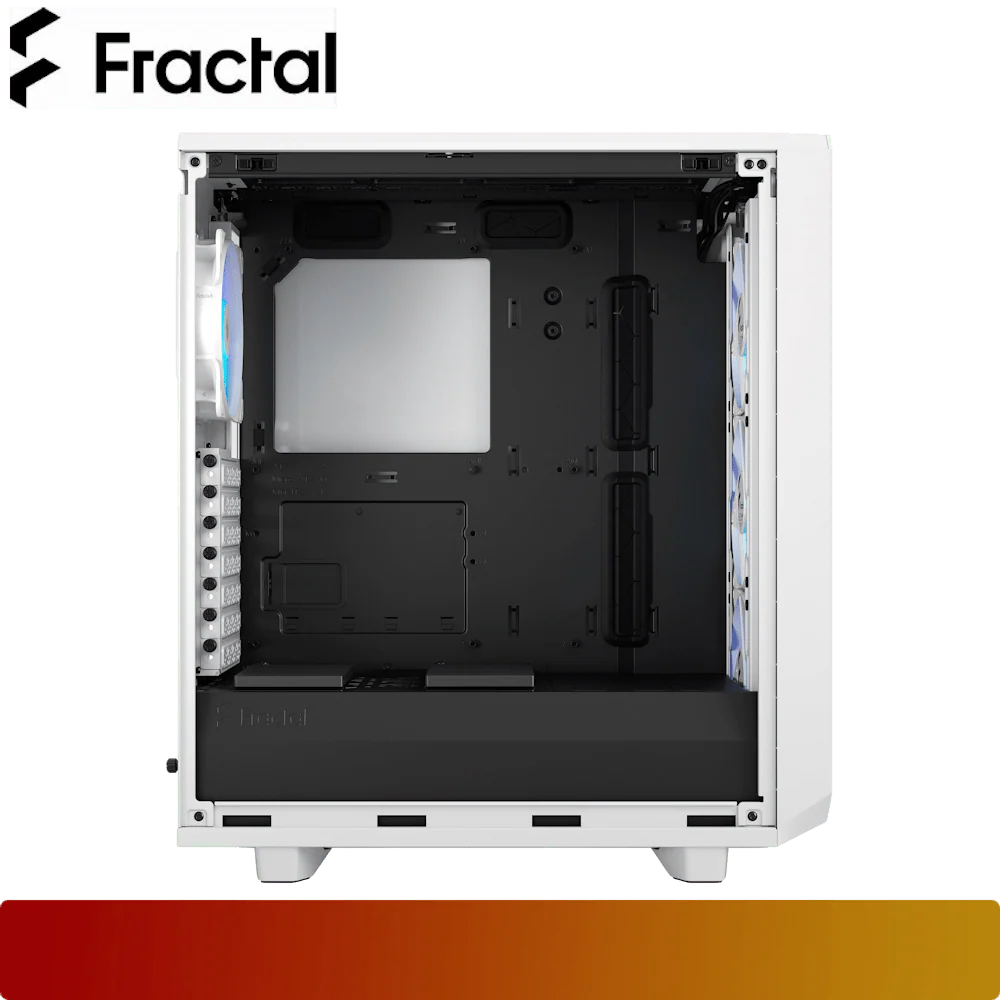

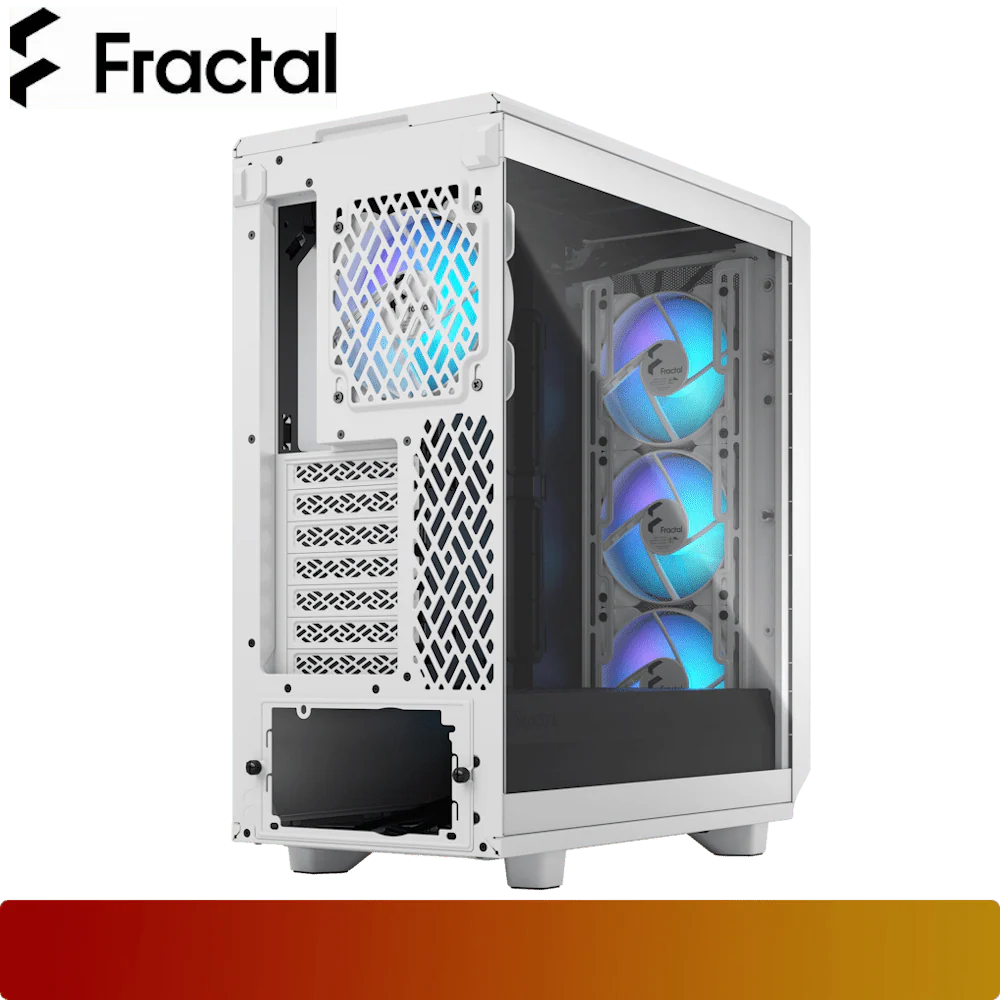

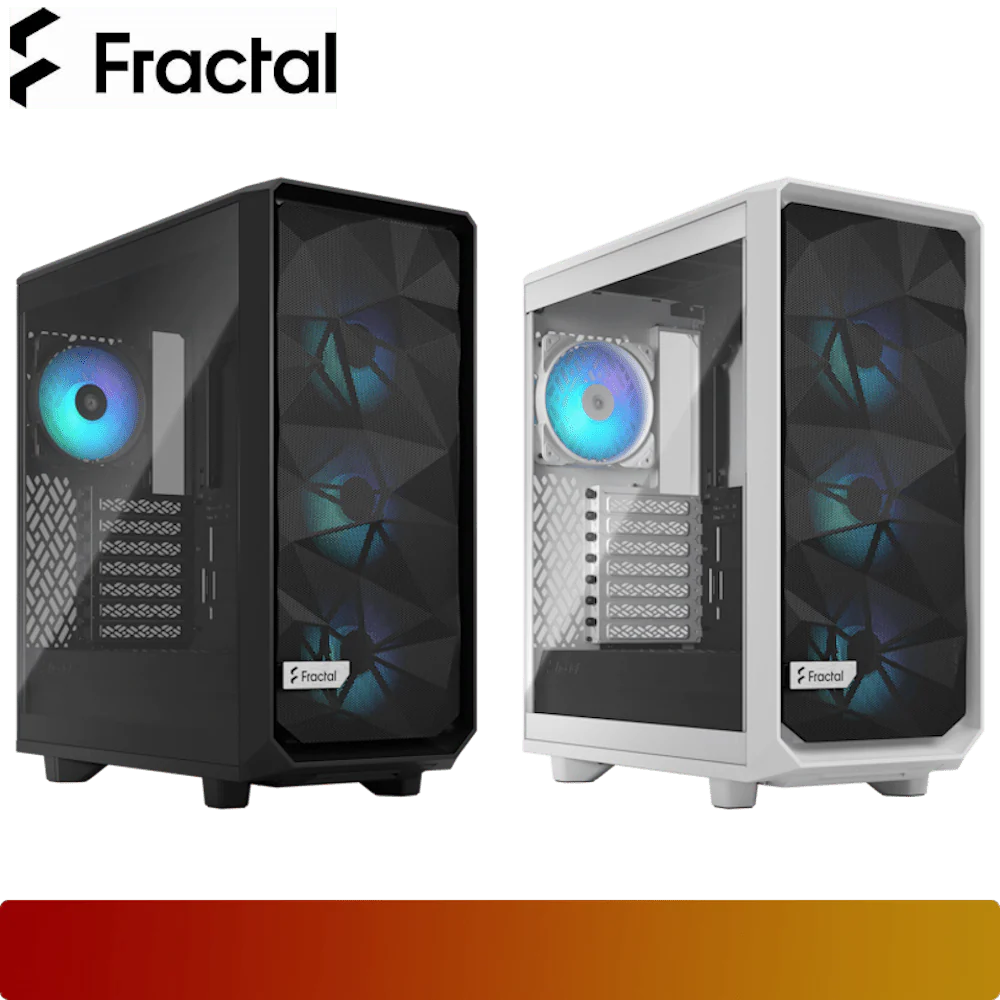

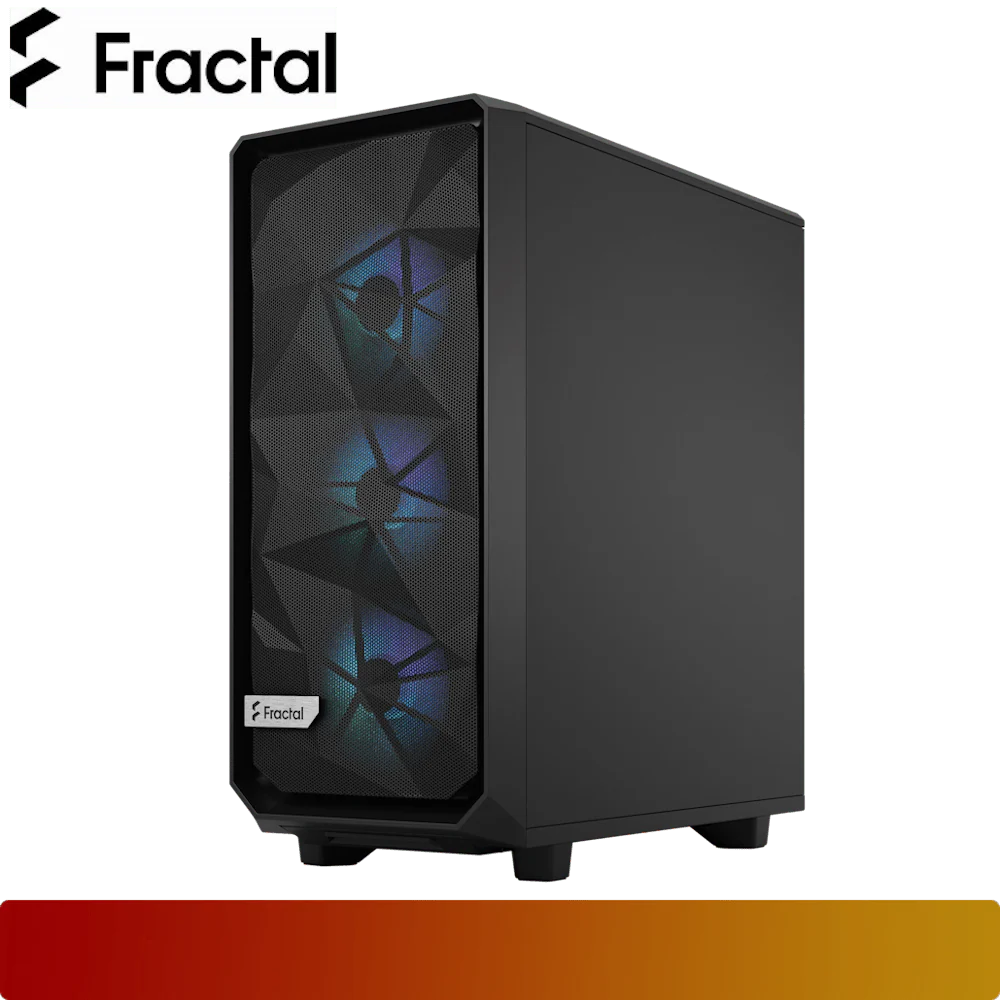

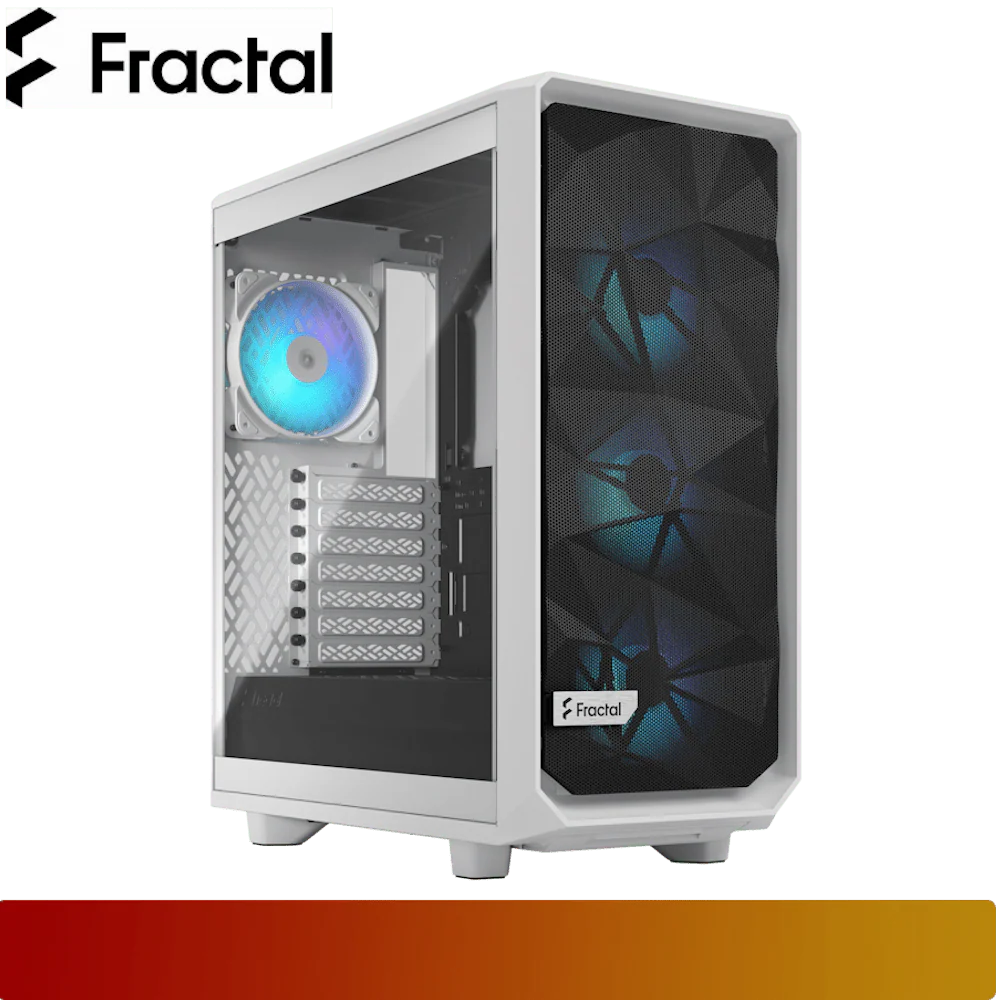

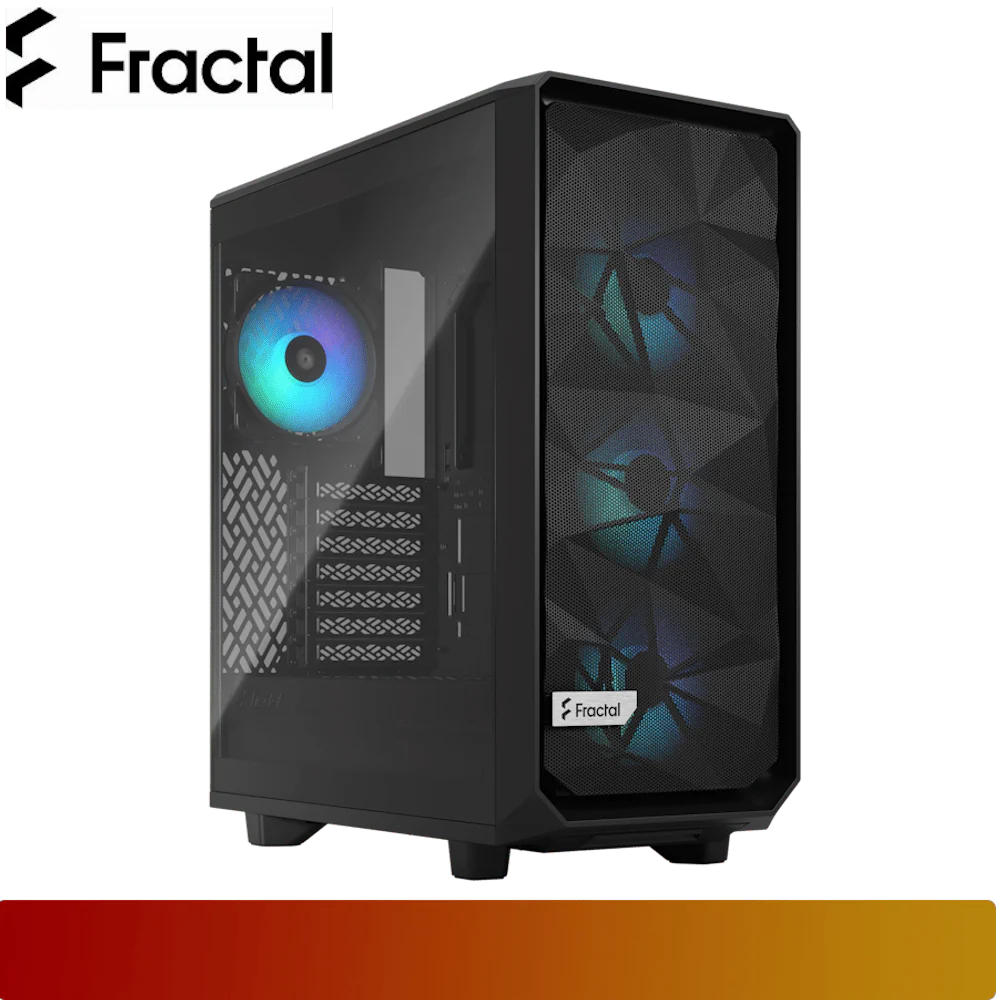

Fractal Design Meshify 2 Compact RGB
| General | |
|---|---|
| 3.5"/2.5" Universal drive mounts | 2 (included) |
| Dedicated 2.5" drive mounts | 4 (2 included) |
| Expansion slots | 7 |
| Front interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, Audio I/O, Power button, RGB control button (RGB Version only) |
| Total fan mounts | 7x 120 or 4x 140 mm and 2x 120 mm |
| Front fan | 3x 120 or 2x 140 mm, (3x Aspect 12 RGB PWM included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm, (1x Aspect 12 RGB PWM included) |
| Bottom fan | 1x 120 mm (requires removal of HDD cage) |
| Dust filters | Top, front and bottom |
| Fixed cable straps | Yes |
| Cable routing grommets | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Tempered glass |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| PSU max length | 165 mm (with HDD cage and front fan) |
| GPU max length | 345 mm |
| CPU cooler max height | 169 mm |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 240 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 120 mm (requires removal of HDD cage) |
| Cable routing space | 17-28 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 424 x 210 x 475 mm |
| Case dimensions w/o feet/protrusions/screws | 412 x 210 x 455 mm |
| Package dimensions (LxWxH) | 542 x 320 x 554 mm |
| Volume | 41 liters |
| Other | |
| Warranty | 2 Years |
| Package contents | Meshify 2 Compact RGB Case, User manual, Accessory box |
| Product code | Black TG Light tint: FD-C-MES2C-06, White TG Clear tint: FD-C-MES2C-08 |
Select Warna
From $29.01
Original: $96.70
-70%Fractal Design Meshify 2 Compact RGB—
$96.70
$29.01Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
