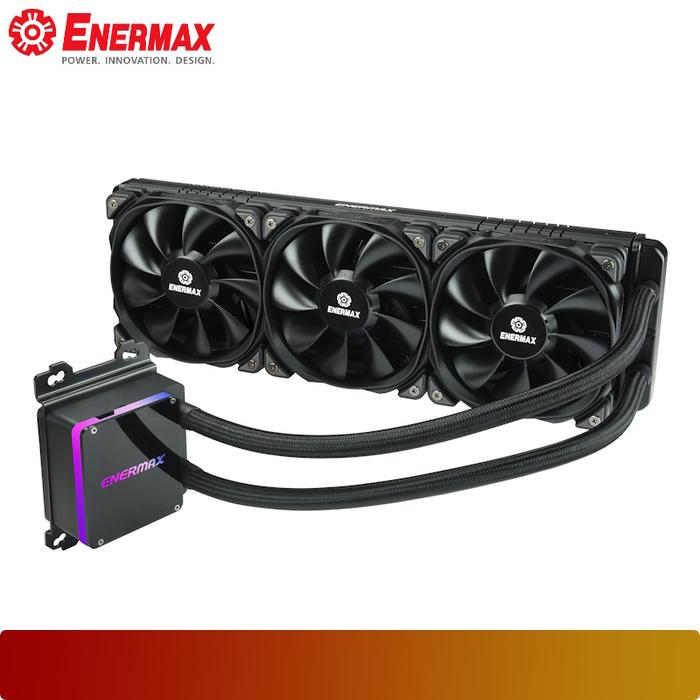

ENERMAX LIQTECH TR4 II | Series 360mm Liquid CPU Cooler

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- ELC-LTTRTO360-TBP

CPU SOCKET
- Intel® LGA 4677
- AMD® sWRX8 / sTRX4 / TR4 / SP3

TDP (W)
- 500W

COLD PLATE MATERIAL
- Copper

RADIATOR MATERIAL
- Aluminum

RADIATOR DIMENSION
- 394 x 120 x 28 mm

PUMP BEARING
- Ceramic Nano PI Bearing

PUMP MTBF
- 100,000 hours

PUMP RATED VOLTAGE (V)
- 12 V

PUMP RATED CURRENT (A)
- 0.4 A

PUMP RATED CURRENT - RGB LED (A)
- 0.2 A

FAN DIMENSION (MM)
- 120 x 120 x 25 mm

FAN MTTF (HOURS)
- ≧160,000 hours

FAN SPEED (RPM)
- 500 - 2300 RPM ± 10%

FAN RATED VOLTAGE (V)
- 12 V

FAN RATED CURRENT (A)
- 0.3 A

FAN AIR FLOW (CFM)
- 23.81 ~ 102.17 CFM

FAN STATIC PRESSURE (MM-H2O)
- 0.673 ~ 6.28 mm-H2O

FAN CONNECTOR
- 4 pin PWM

FAN MAXIMUM NOISE (DBA)
- 14 ~ 28 dBA

FAN SCREW
- M3.5

THERMAL GREASE
- Dow Corning® TC-5121C
