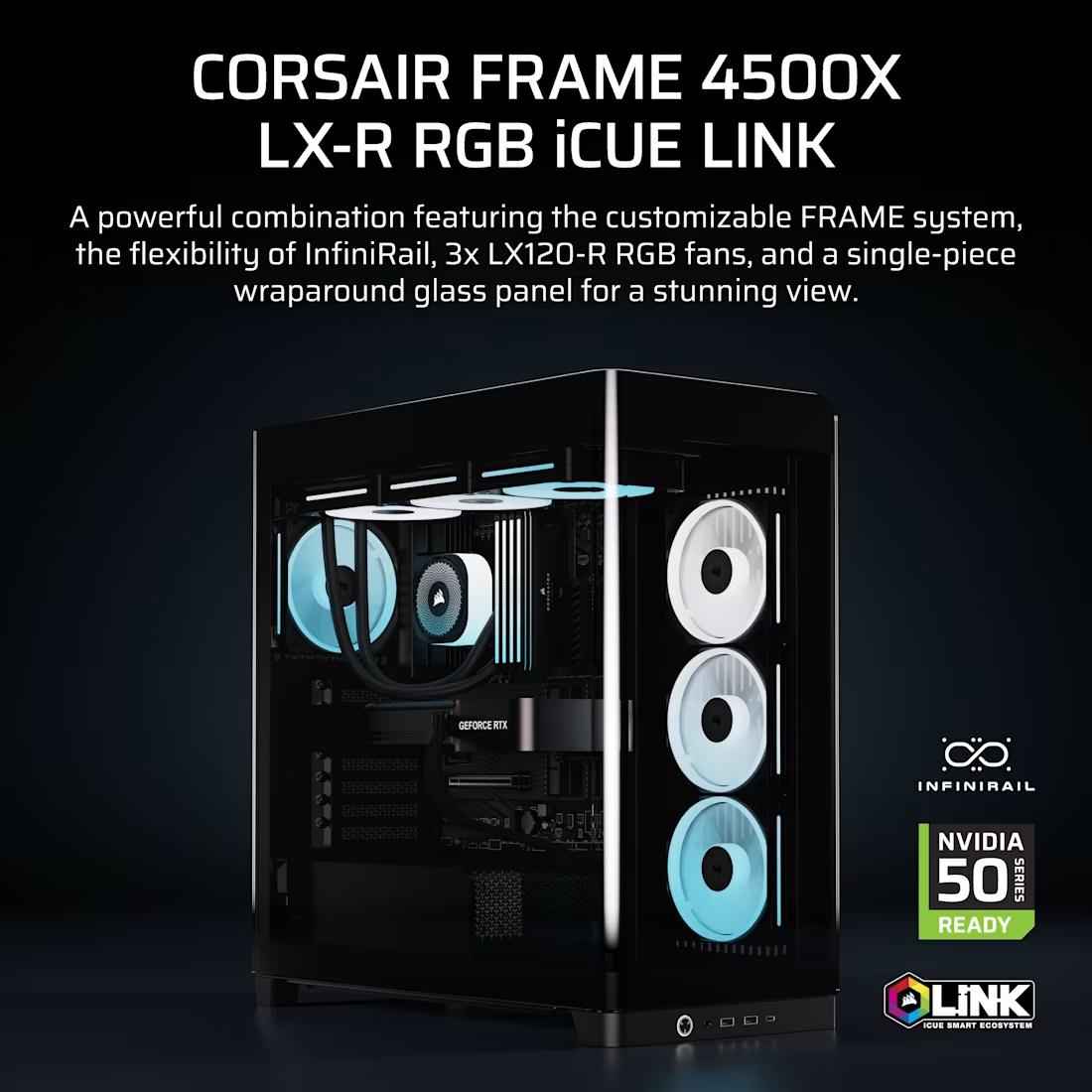

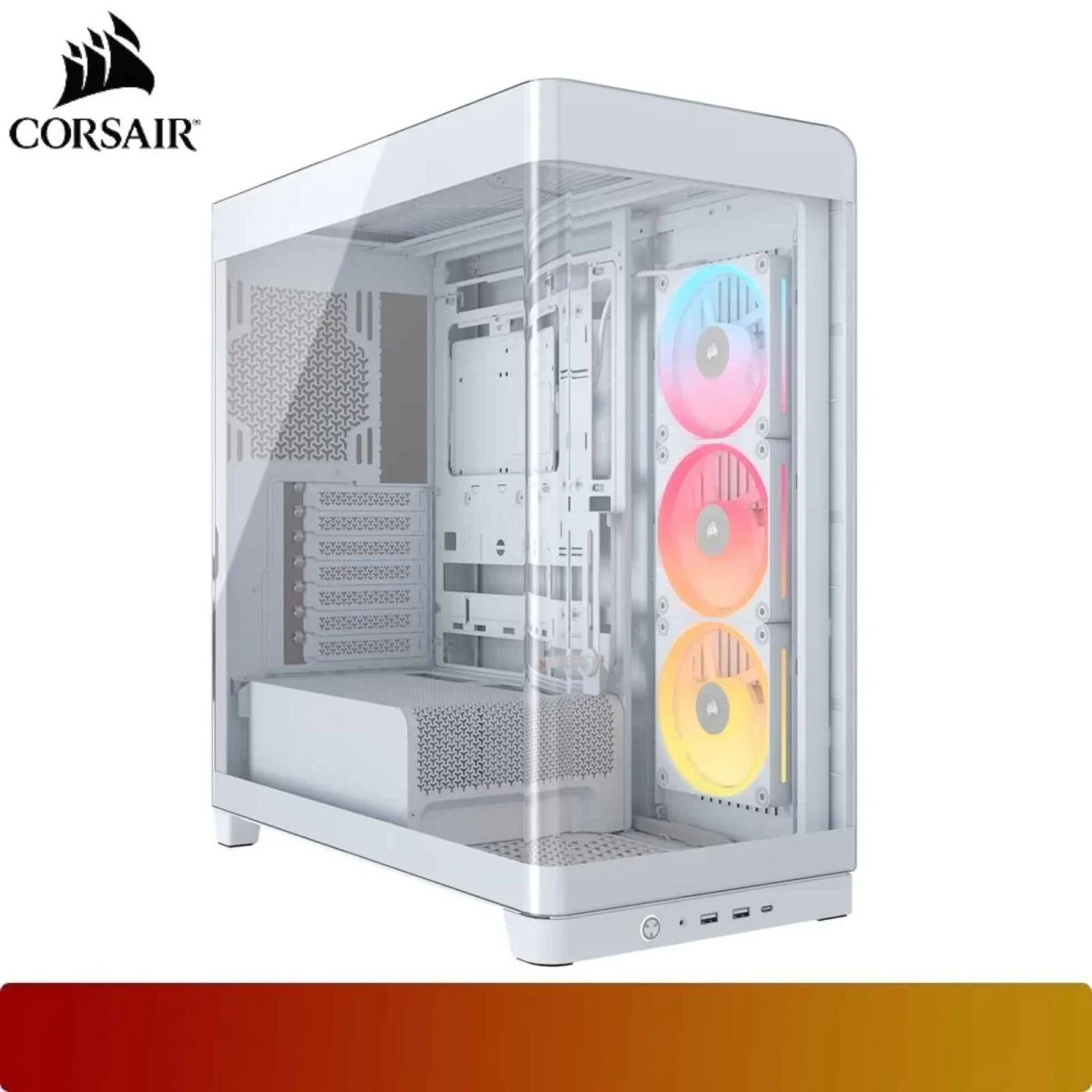

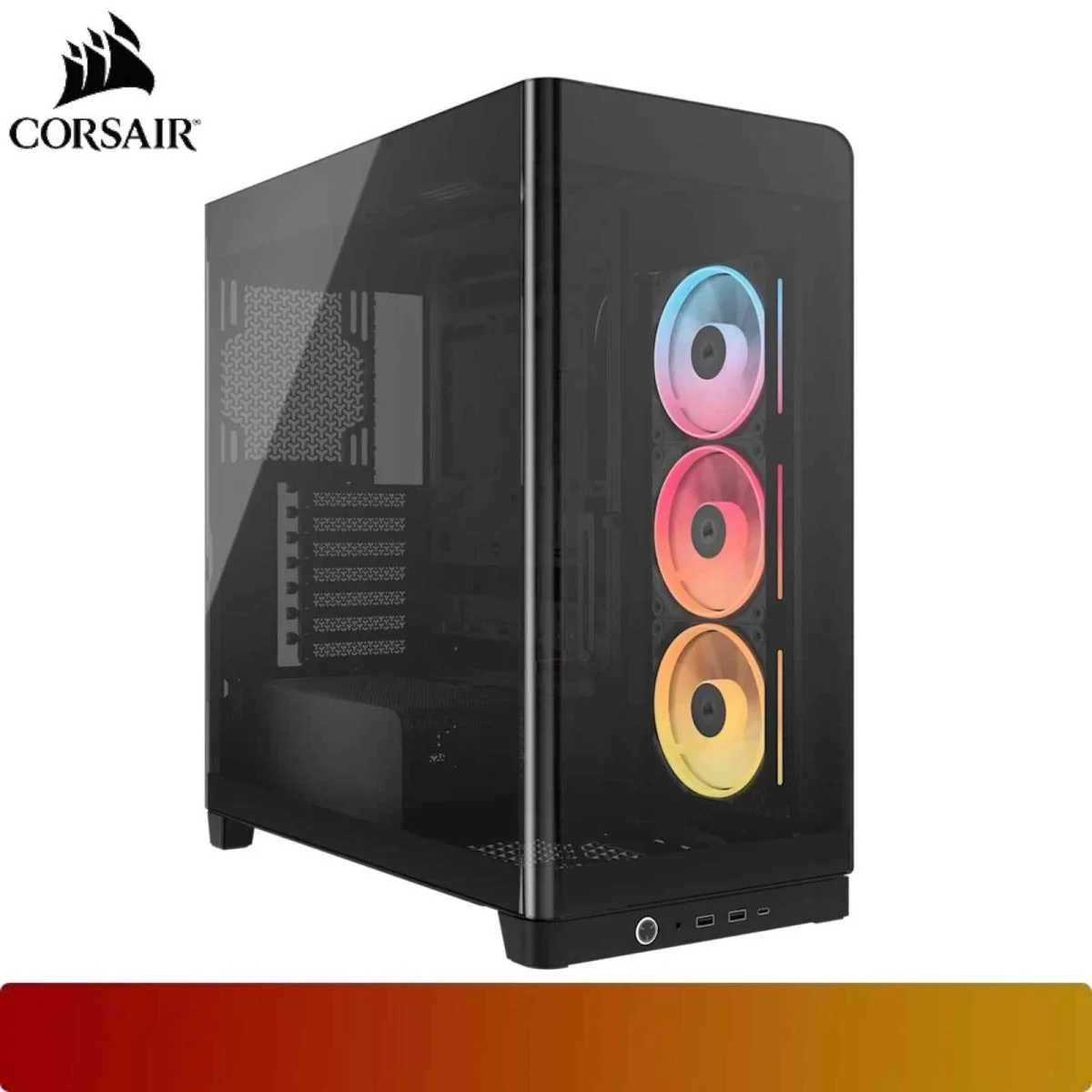

CORSAIR FRAME 4500X LX-R RGB iCUE LINK Panoramic Glass Mid-Tower PC Case

Specifications :

Case Supported
- Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height
- 478

Case Length
- 499

Case Width
- 246

Material
- Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Motherboard Support
- Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

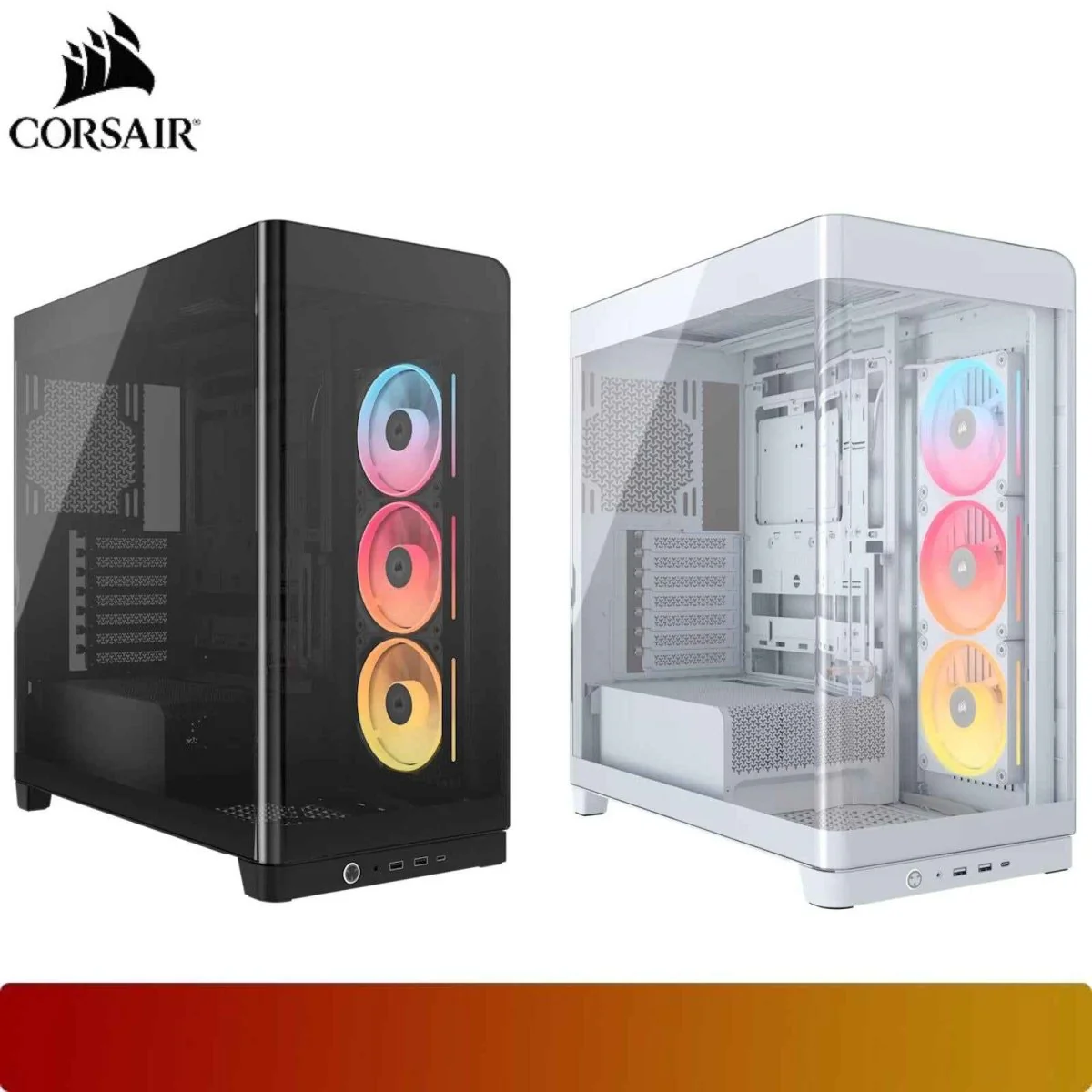

Color
- BLACK
- White

Case Size
- Mid-Tower

Radiator Compatibility
- 120mm, 140mm, 240mm, 280mm, 360mm

Case Window
- Tempered Glass

Compatible Liquid Coolers
- H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty
- 2 Year

Internal 3.5" Drive Bays
- 1

Internal 2.5" Drive Bays
- 2

Maximum CPU Cooler Height
- 185mm

Maximum PSU Length
- 250mm

Case Front IO
- (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length
- 460mm

Case Expansion Slots
- 7 Horizontal or 3 Vertical

Case Power Supply
- ATX

Radiator Support - Top
- 360mm, 280mm, 240mm

Radiator Support - Front
- None

Radiator Support - Bottom
- None

Radiator Support - Side
- 360mm, 280mm, 240mm

Radiator Support - Rear
- 140mm, 120mm

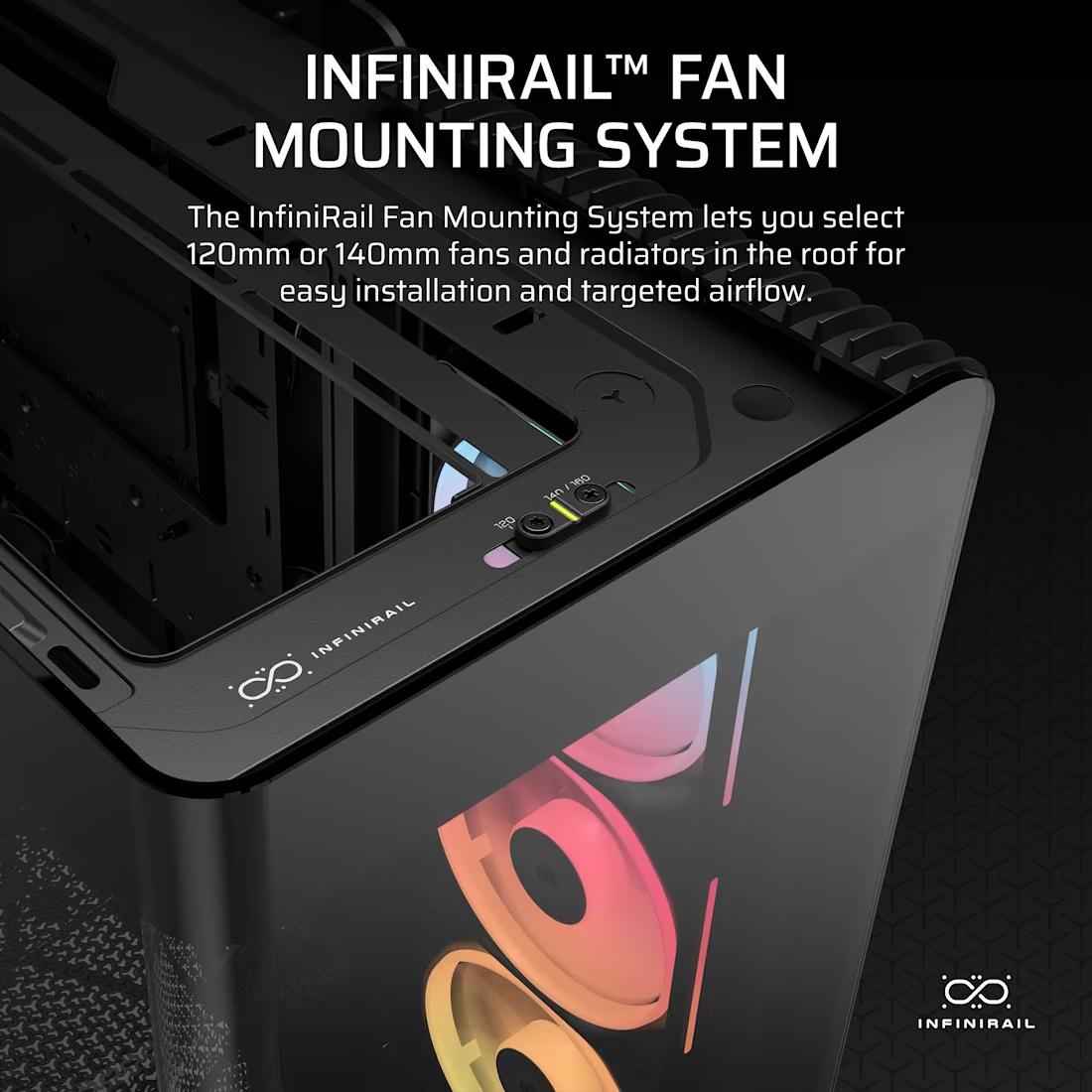

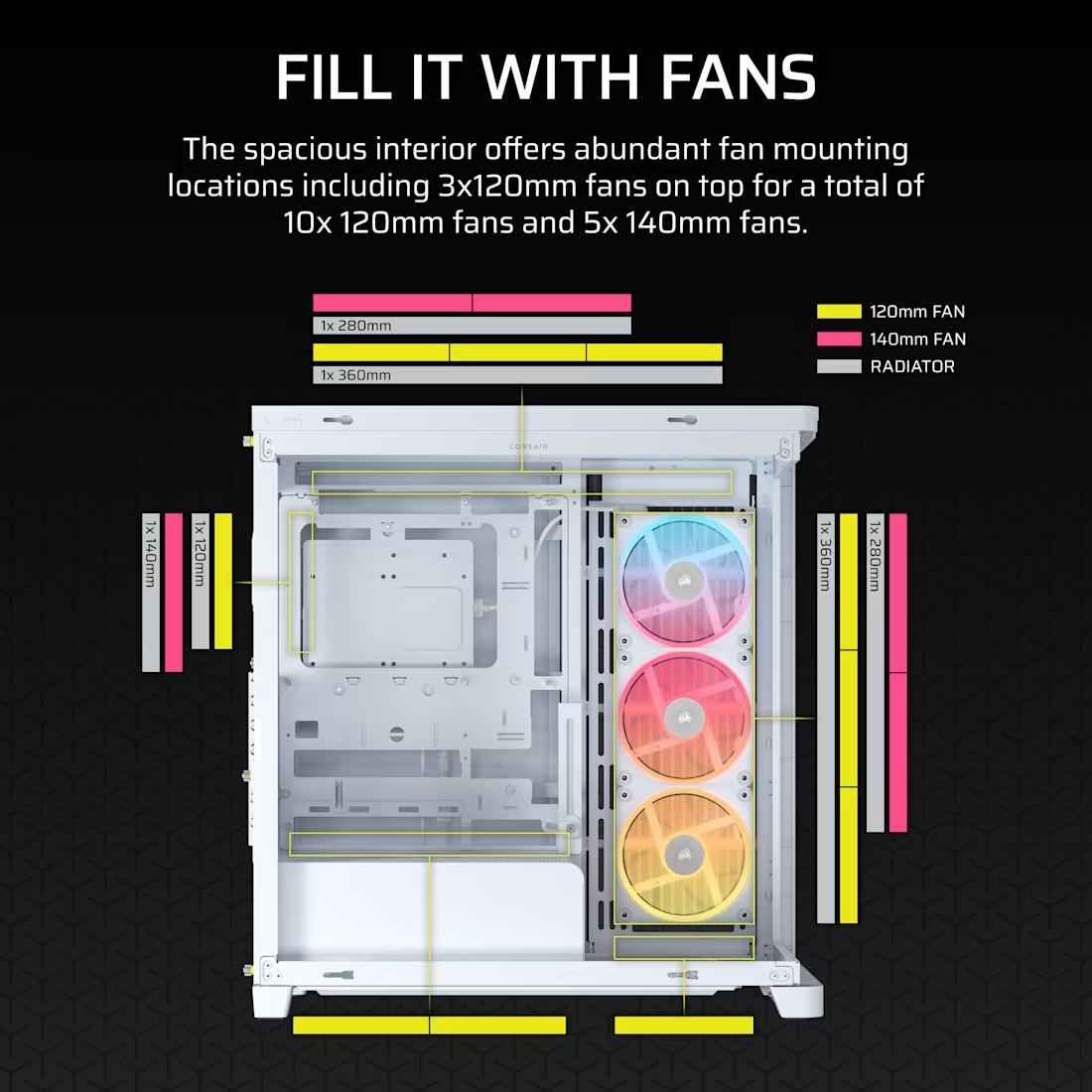

Fan Support - Top
- 3x 120mm, 2x 140mm

Fan Support - Front
- None

Fan Support - Bottom
- 3x 120mm, 1x 140mm

Fan Support - Side
- 3x 120mm, 2x 140mm

Fan Support - Rear
- 1x 120mm, 1x 140mm

Front IO Motherboard Connections
- 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

Reverse Connector Motherboard Support
- Yes

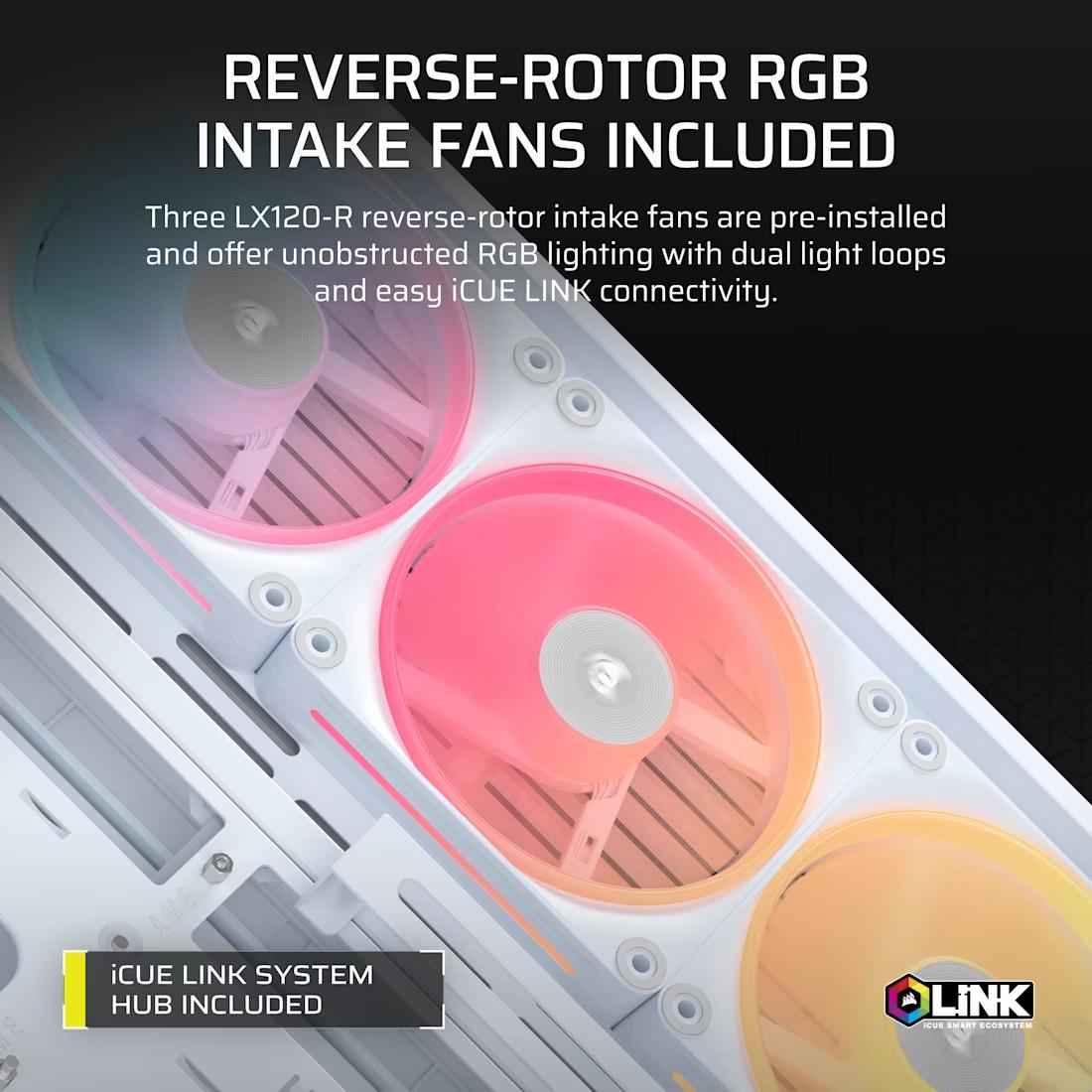

Included Fans
- iCUE LINK LX Series

Dust Filtration
- Yes

Cable Routing Space
- 37mm

RapidRoute Included
- No

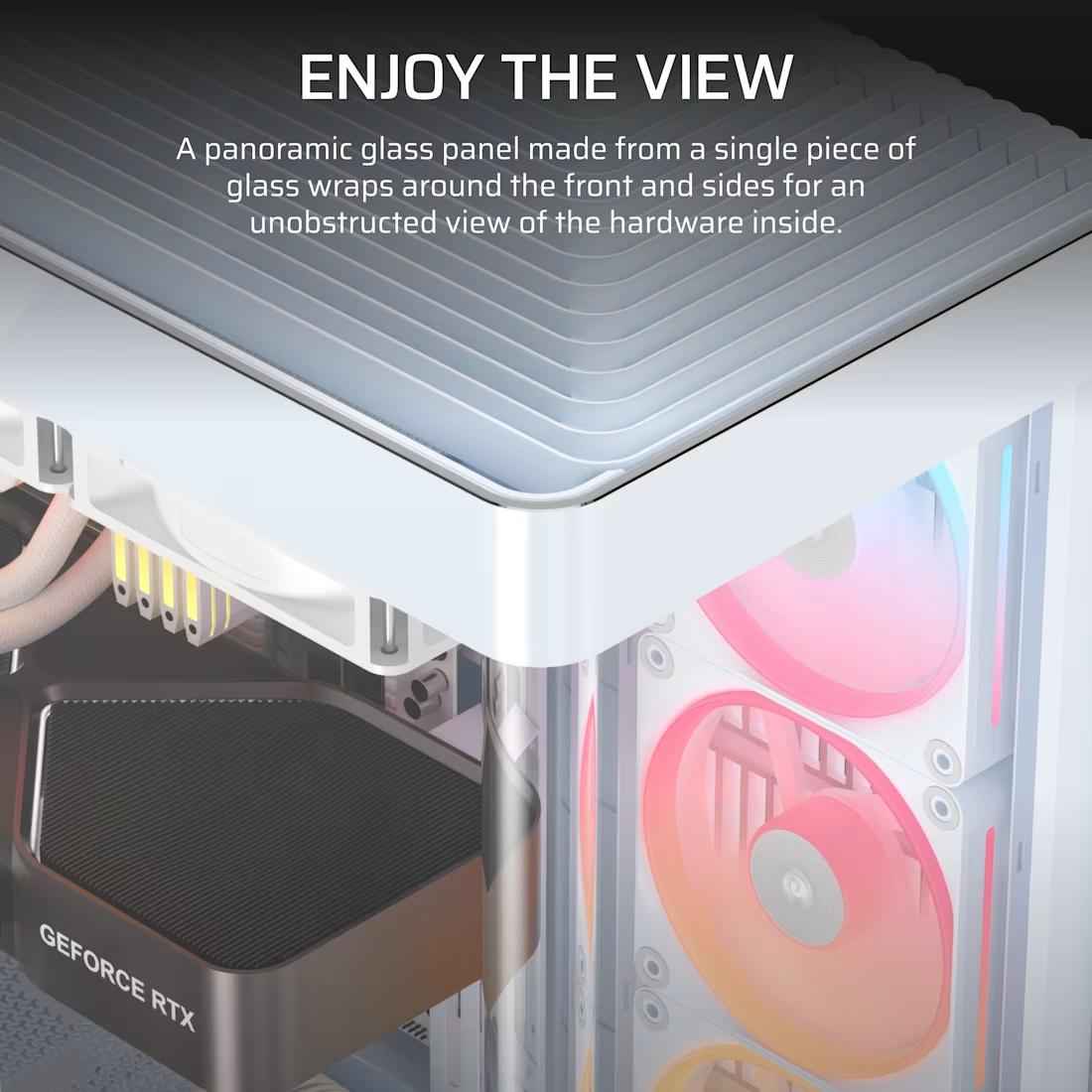

Left Side Panel
- Tempered Glass

Right Side Panel
- Steel

Vertical Mount Support
- Supported (Riser Card Sold Separately)
