COOLER MASTER MWE Gold 750 V3 ATX 3.1 | PSU 750W 80+ Gold Fully Modular

Specifications :

Model
- 750: MPX-7503-AFAG-2***

ATX Version
- ATX 12V Ver. 3.1

PFC
- Active PFC

Input Voltage
- 100-240V

Input Current
- 10-5A

Input Frequency
- 50-60Hz

Dimensions (L x W x H)
- 160 x 150 x 86 mm

Fan Size
- 120mm

Fan Bearing
- HDB

Fan Speed
- 2500 RPM

Efficiency
- ≥90% @ Typical Load

80 PLUS Rating
- 80 PLUS Gold

ErP 2014 Lot 3
- Yes

Operating Temperature
- 0-40°C

Power Good Signal
- 100 - 150 ms

Hold Up Time
- ≥16ms at 80% Load

MTBF
- >100,000 Hours

Protections
- OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

Regulatory
- cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

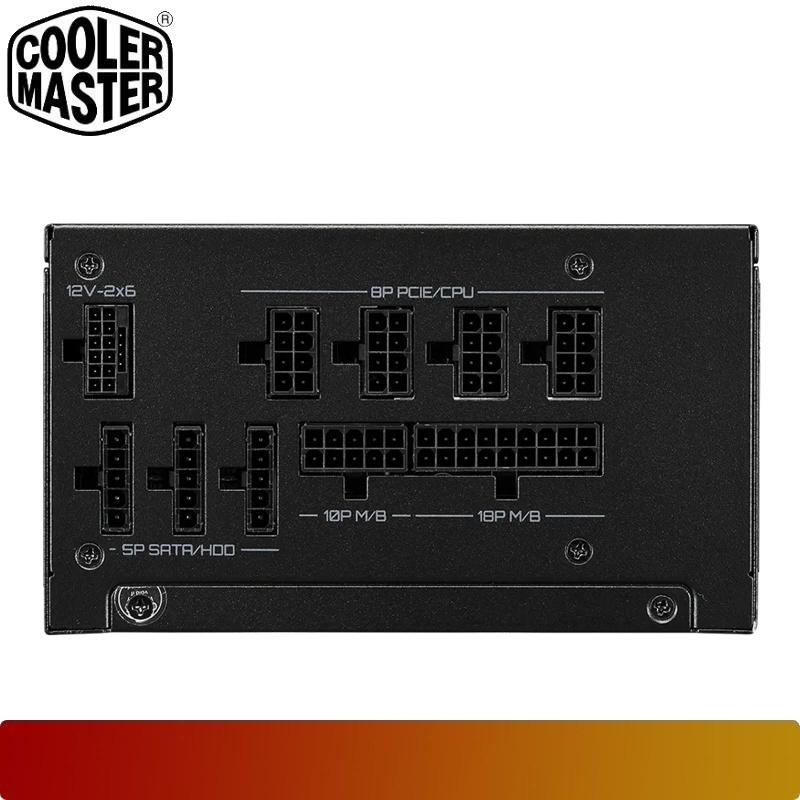

ATX 24 Pin Connectors
- 1

EPS 4+4 Pin Connectors
- 1

EPS 8 Pin Connector
- 1

SATA & Peripheral 4 Pin Connectors
- 6 (SATA) / 2 (Peripheral)

PCI-e 6+2 Pin Connectors
- 4

12V-2x6 Connectors
- 1

Series
- MWE Gold Series

Category
- Above 750W

Modular
- Fully Modular

80 Plus Efficiency
- Gold

Form Factor
- ATX

Watts
- 750W
