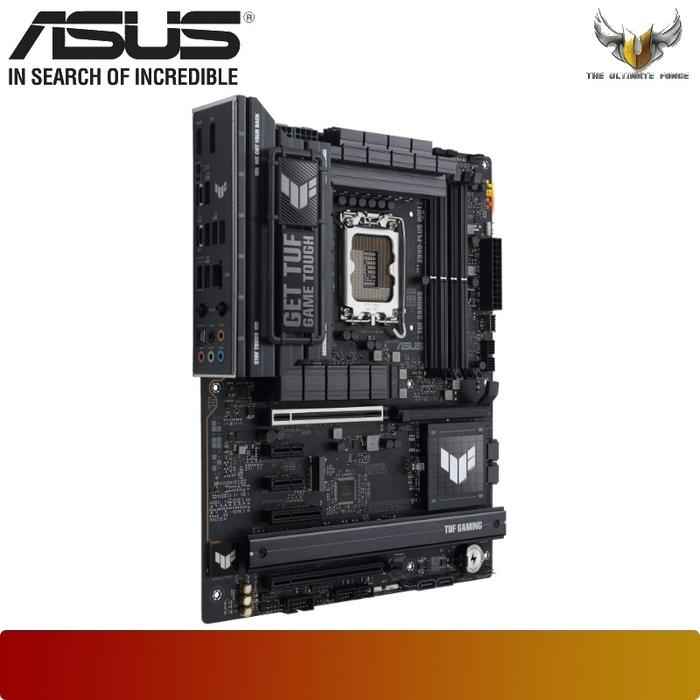

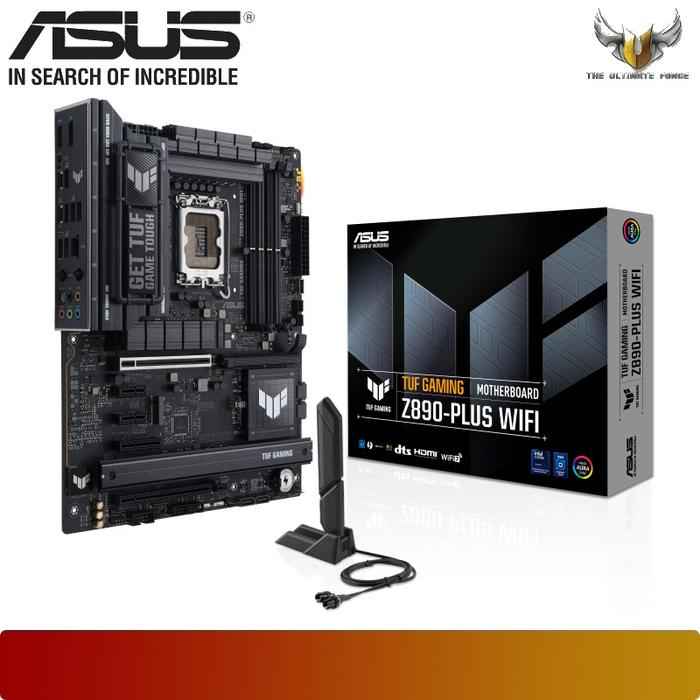

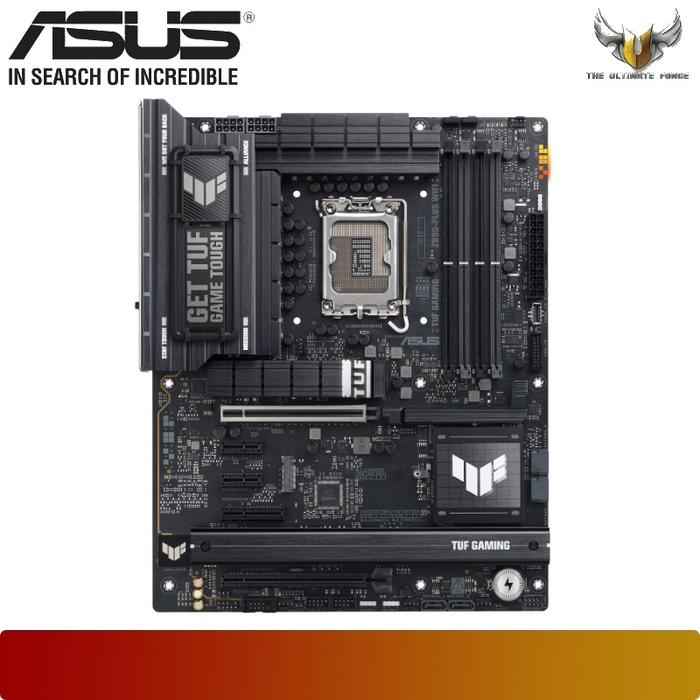

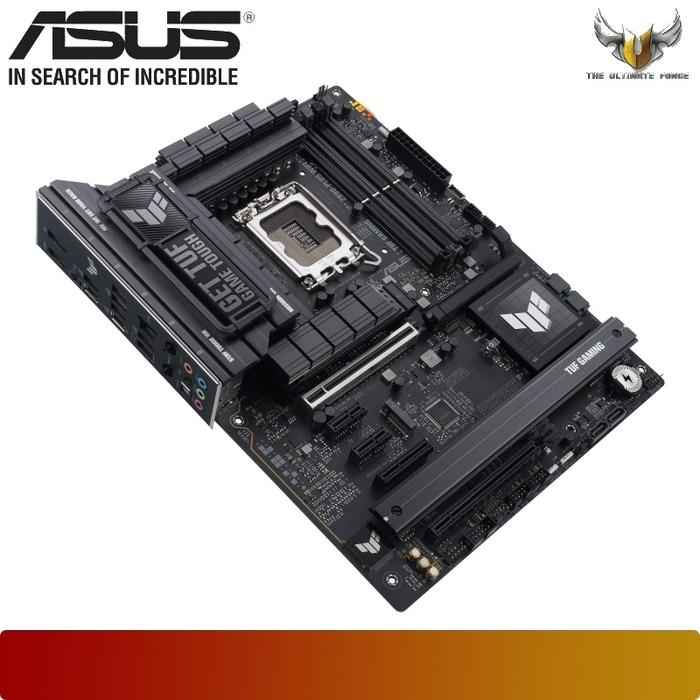

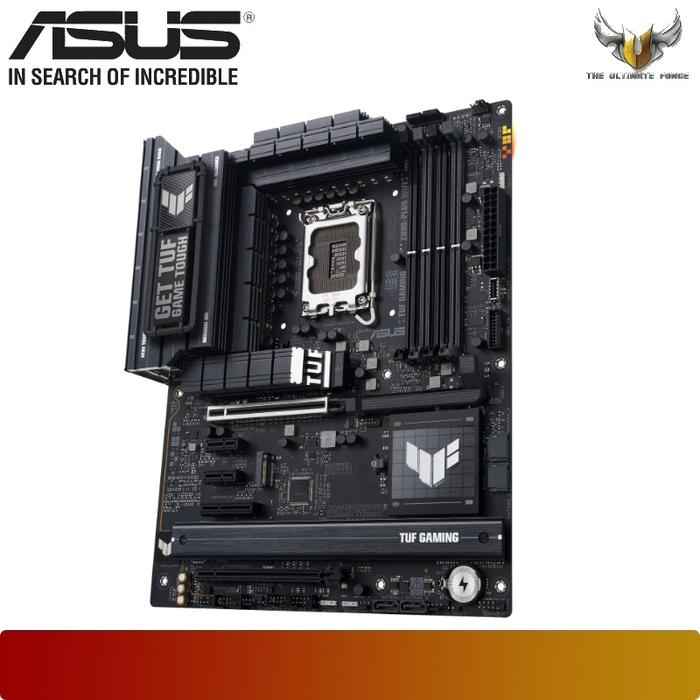

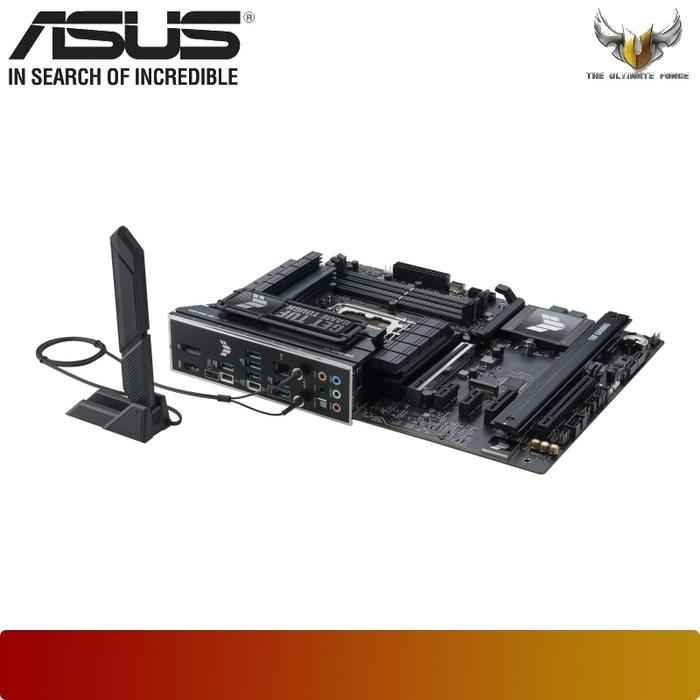

ASUS TUF GAMING Z890-PLUS WIFI | Motherboard Intel Z890 LGA 1851 DDR5 ATX

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- TUF GAMING Z890-PLUS WIFI

CPU
- Support Intel® Core™ Ultra Processors (Series 2), LGA1851
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
- Intel® Z890 Chipset

Memory
- 4 x DIMM slots, max. 192GB, DDR5
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP) memory module

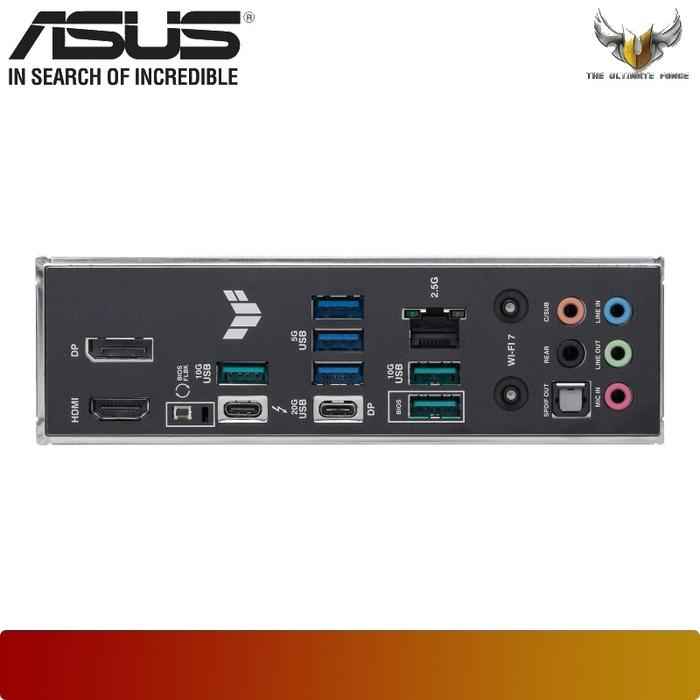

Graphics
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs
- 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Expansion Slots
Intel® Core™ Ultra Processors(Series 2)*
- 1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x4 slot
- 2 x PCIe 4.0 x1 slots

Storage
- Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Intel® 2.5Gb Ethernet
- TUF LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth® v5.4

Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

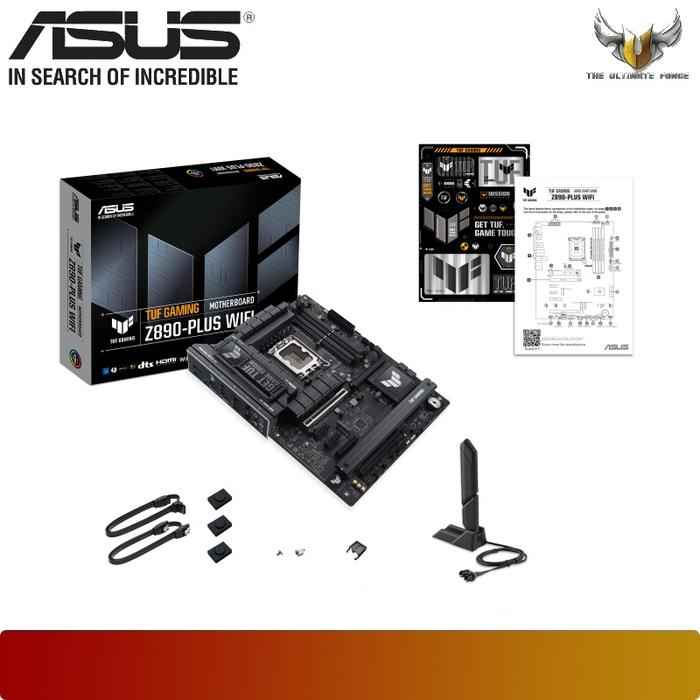

Accessories
Cables
- 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x M.2 Q-Slide package
- 2 x M.2 rubber packages
- 1 x Screw package for M.2 SSD
- 1 x TUF GAMING sticker
- 1 x TUF GAMING removable nameplate

Documentation
- 1 x Quick start guide

Operating System
- Windows 11 (22H2 & later)

Form Factor
ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
