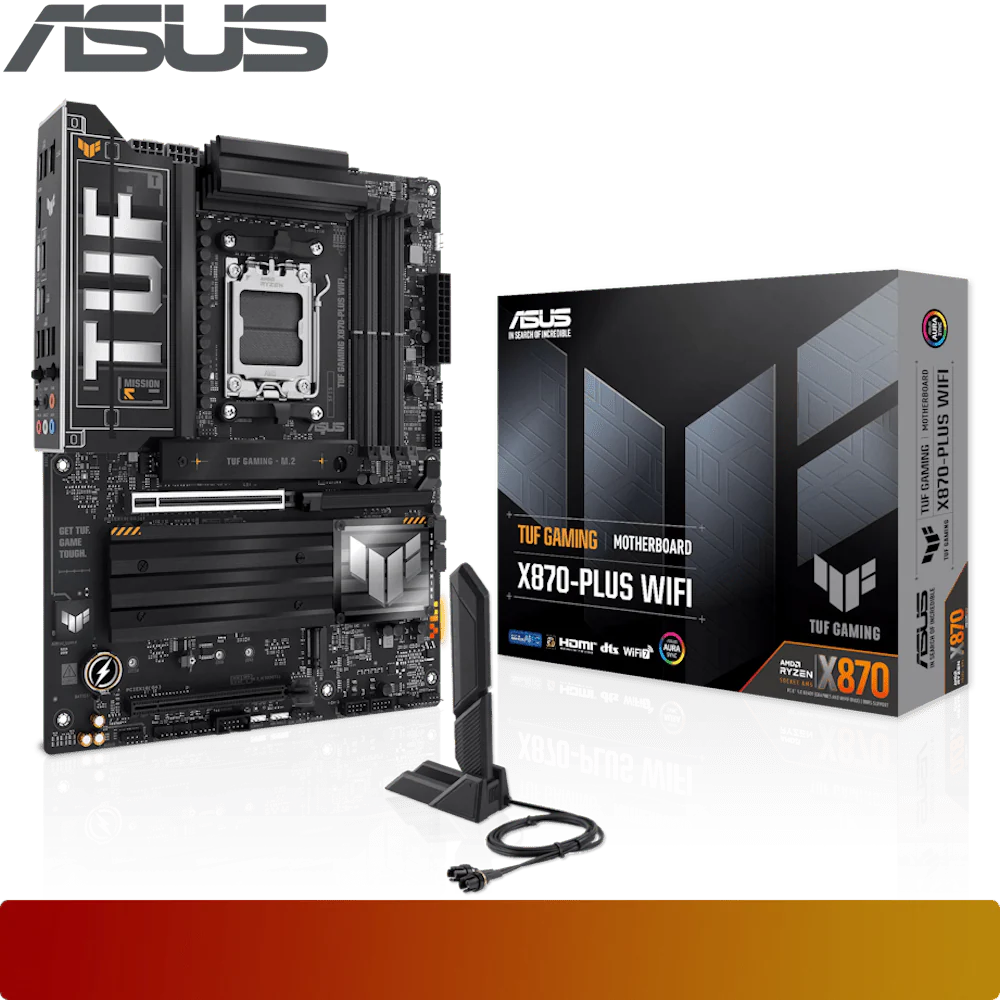

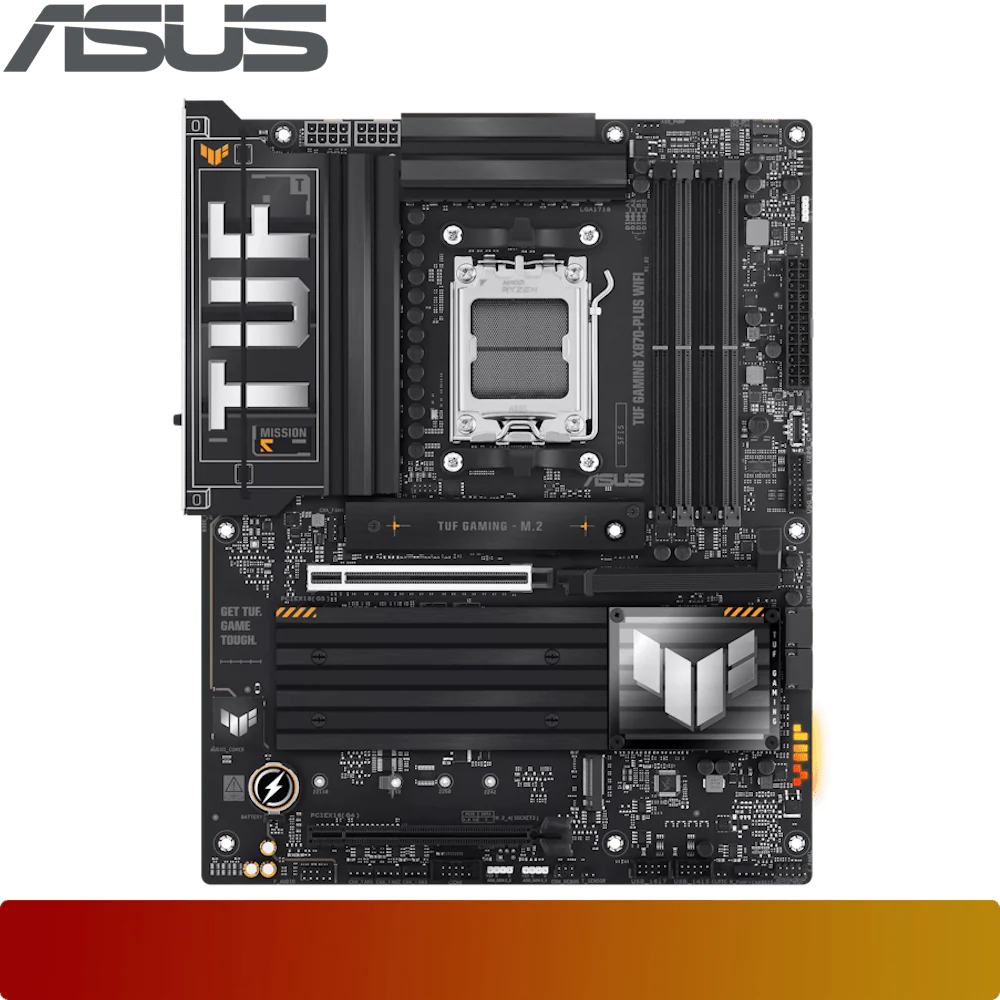

ASUS TUF GAMING X870-PLUS WIFI
| Model | TUF GAMING X870-PLUS WIFI |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) Dual Channel Memory Architecture Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot Chipset: 1 x PCIe 4.0 x16 slot (x4 mode) |
| Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports M.2 (CPU): 2 x slots (M.2_1, M.2_2 supports PCIe 5.0 x4 mode) M.2 (Chipset): 2 x slots (M.2_3, M.2_4 supports PCIe 4.0 x4 mode) SATA: 2 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology Supports PCIe RAID 0/1/5/10 and SATA RAID 0/1 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (802.11be) 2x2 Supports 2.4/5/6GHz frequency band, 160MHz bandwidth Bluetooth® v5.4*** |

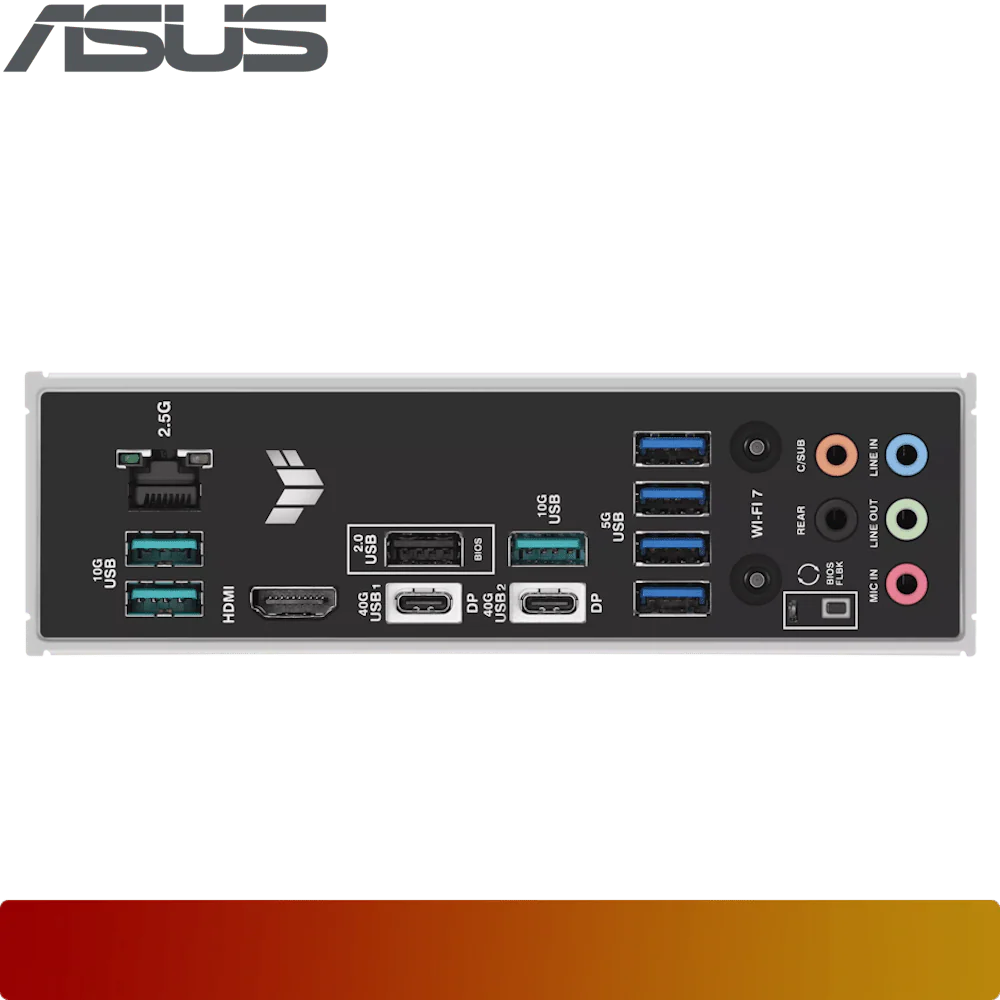

| USB (Total 17 Ports) | Rear USB (Total 10): 2 x USB4® (40Gbps, Type-C®) 3 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 1 x USB 2.0 (Type-A) Front USB (Total 7): 1 x USB 20Gbps connector (Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header (2 additional ports) 2 x USB 2.0 headers (4 additional ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC 120 dB SNR stereo playback output |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
$109.19
Original: $363.97
-70%ASUS TUF GAMING X870-PLUS WIFI—
$363.97
$109.19Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | TUF GAMING X870-PLUS WIFI |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) Dual Channel Memory Architecture Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot Chipset: 1 x PCIe 4.0 x16 slot (x4 mode) |
| Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports M.2 (CPU): 2 x slots (M.2_1, M.2_2 supports PCIe 5.0 x4 mode) M.2 (Chipset): 2 x slots (M.2_3, M.2_4 supports PCIe 4.0 x4 mode) SATA: 2 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology Supports PCIe RAID 0/1/5/10 and SATA RAID 0/1 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (802.11be) 2x2 Supports 2.4/5/6GHz frequency band, 160MHz bandwidth Bluetooth® v5.4*** |
| USB (Total 17 Ports) | Rear USB (Total 10): 2 x USB4® (40Gbps, Type-C®) 3 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 1 x USB 2.0 (Type-A) Front USB (Total 7): 1 x USB 20Gbps connector (Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header (2 additional ports) 2 x USB 2.0 headers (4 additional ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC 120 dB SNR stereo playback output |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
