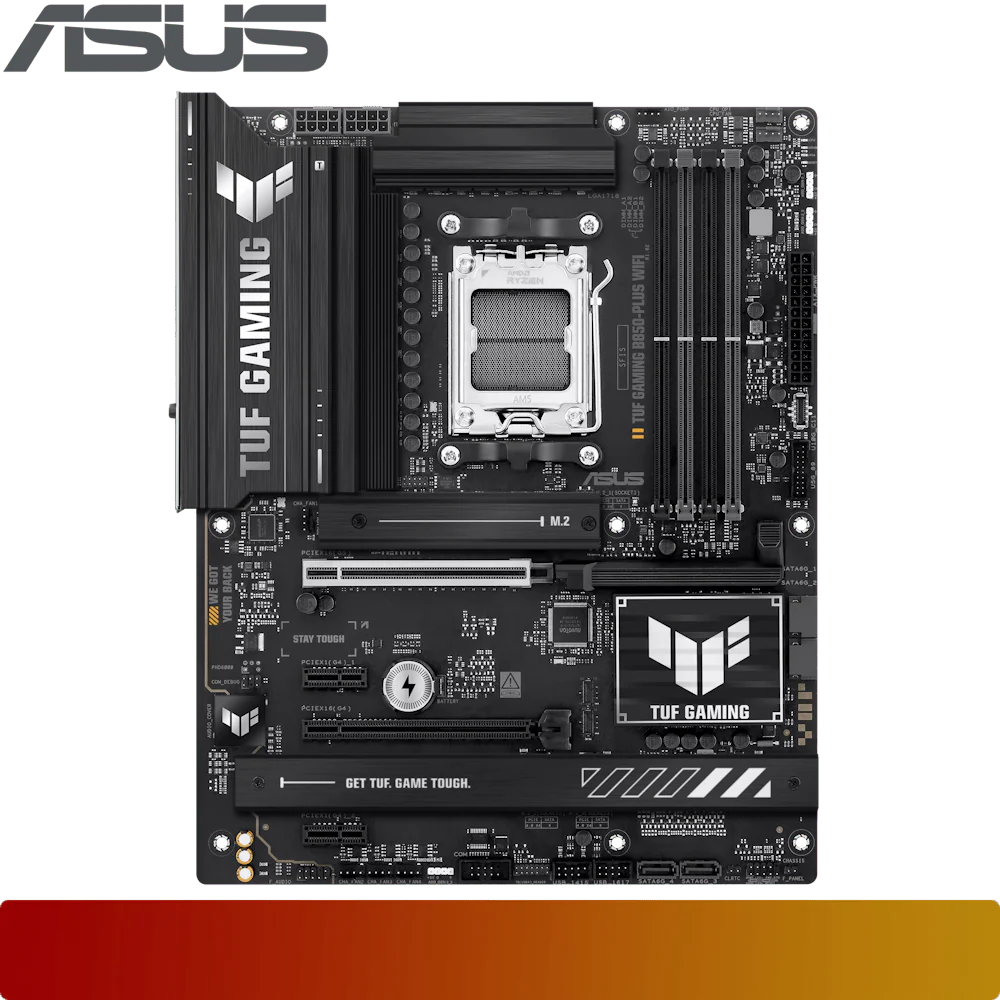

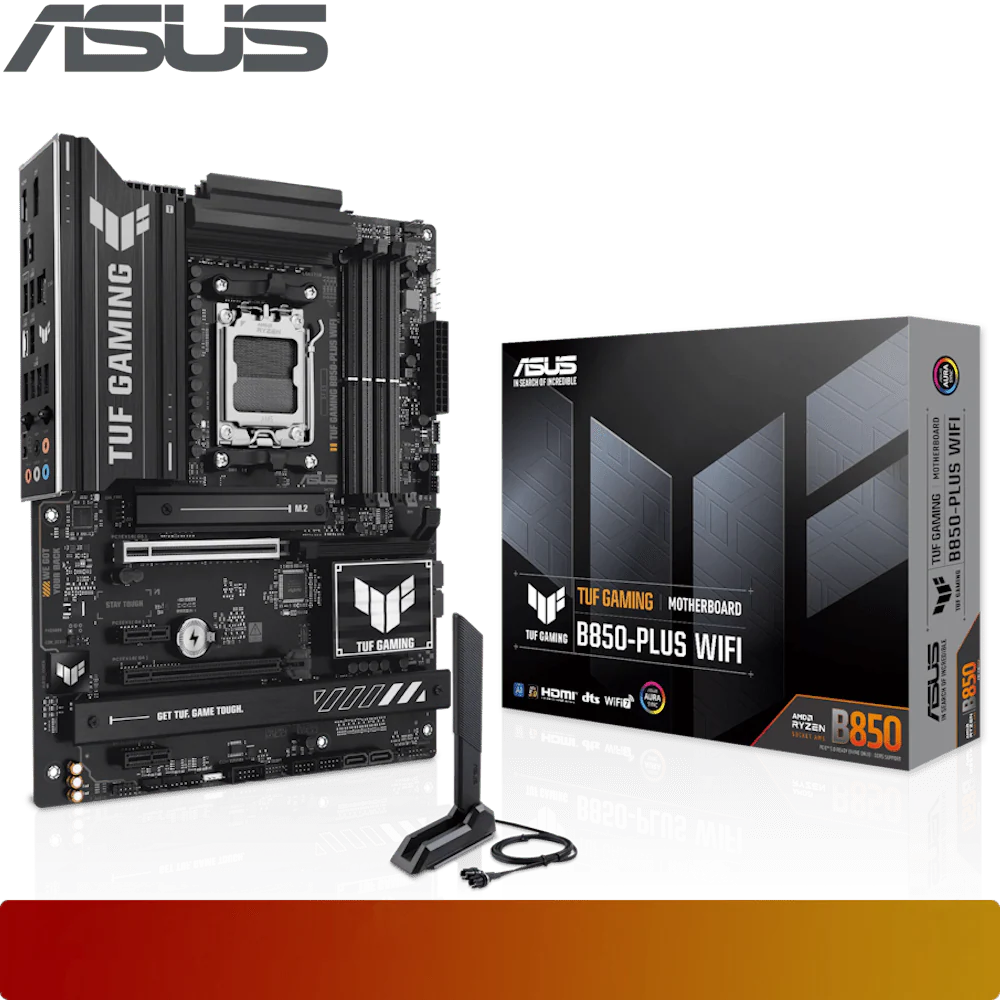

ASUS TUF GAMING B850-PLUS WIFI
| Model | TUF GAMING B850-PLUS WIFI |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) Dual Channel, Supports AMD EXPO™ / ASUS AEMP |

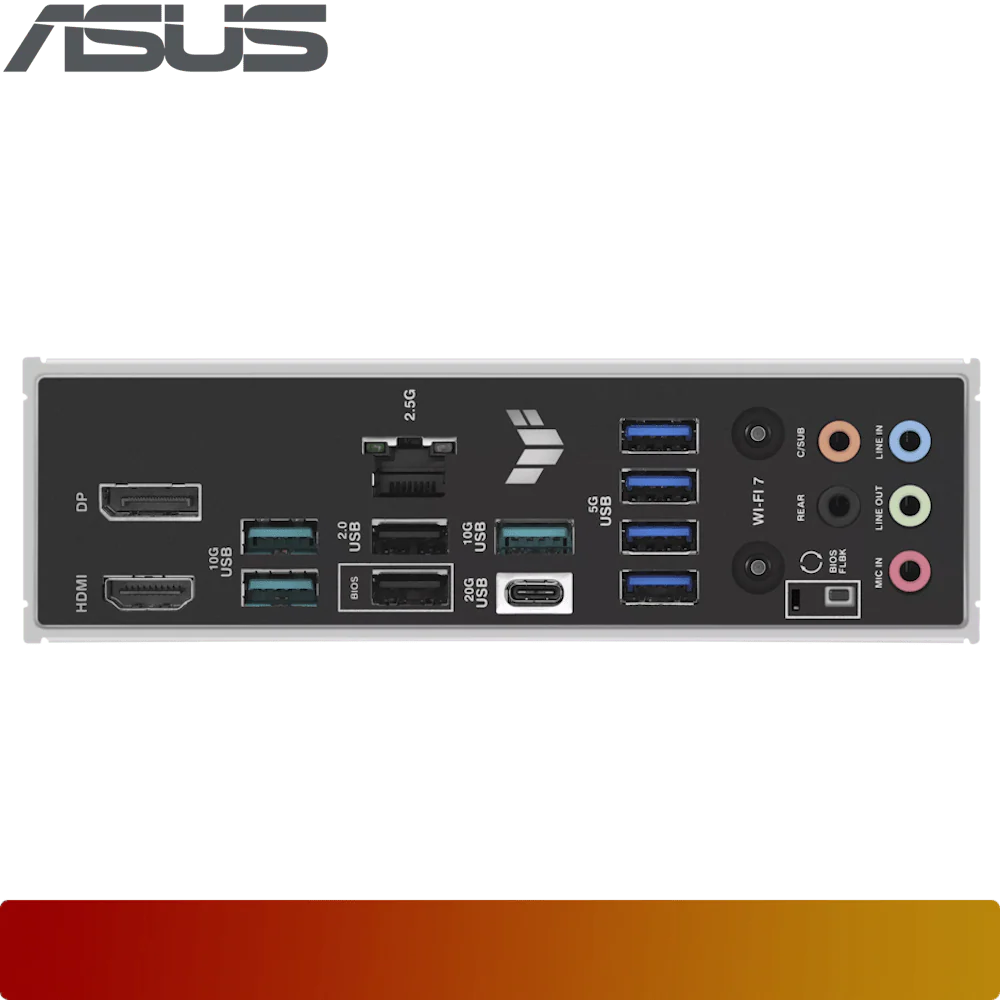

| Graphics | 1 x DisplayPort** (max. 8K@30Hz) 1 x HDMI™ port*** (max. 4K@60Hz) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot (x16 mode) Chipset: 1 x PCIe 4.0 x16 slot (x4 mode), 2 x PCIe 4.0 x1 slots |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1: PCIe 5.0 x4 M.2_2/M.2_3: PCIe 4.0 x4 |
| RAID Support | AMD RAIDXpert2 Technology Supports RAID 0/1/5/10 (Varies by CPU Series) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (2x2 802.11be, 160MHz bandwidth) Bluetooth® v5.4 |
| USB (Total 17 Ports) | Rear (10 Ports): 1x USB 20Gbps (Type-C), 3x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A), 2x USB 2.0 (Type-A) Front (7 Ports): 1x USB 10Gbps connector (Type-C), 1x USB 5Gbps header (2 ports), 2x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC 120 dB SNR stereo playback |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
$267.80
ASUS TUF GAMING B850-PLUS WIFI—
$267.80
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | TUF GAMING B850-PLUS WIFI |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) Dual Channel, Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 1 x DisplayPort** (max. 8K@30Hz) 1 x HDMI™ port*** (max. 4K@60Hz) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot (x16 mode) Chipset: 1 x PCIe 4.0 x16 slot (x4 mode), 2 x PCIe 4.0 x1 slots |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1: PCIe 5.0 x4 M.2_2/M.2_3: PCIe 4.0 x4 |
| RAID Support | AMD RAIDXpert2 Technology Supports RAID 0/1/5/10 (Varies by CPU Series) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (2x2 802.11be, 160MHz bandwidth) Bluetooth® v5.4 |
| USB (Total 17 Ports) | Rear (10 Ports): 1x USB 20Gbps (Type-C), 3x USB 10Gbps (Type-A), 4x USB 5Gbps (Type-A), 2x USB 2.0 (Type-A) Front (7 Ports): 1x USB 10Gbps connector (Type-C), 1x USB 5Gbps header (2 ports), 2x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1 HD Audio CODEC 120 dB SNR stereo playback |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
