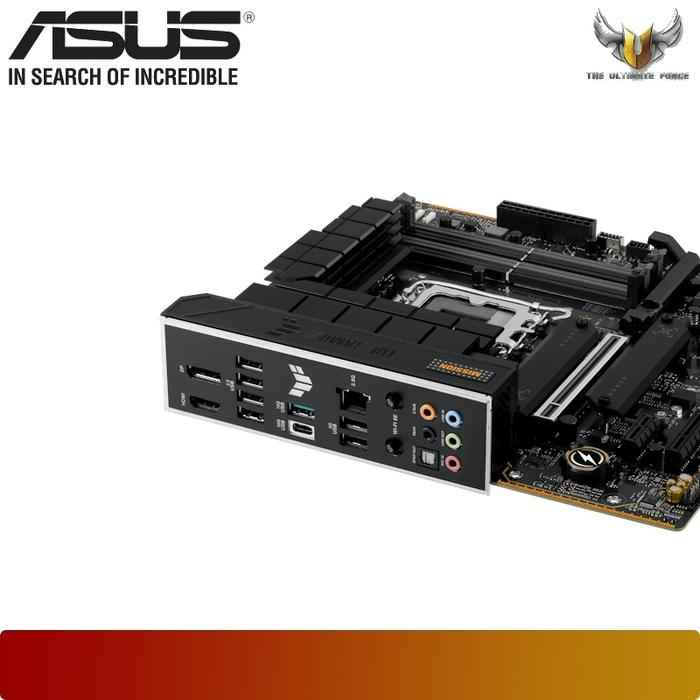

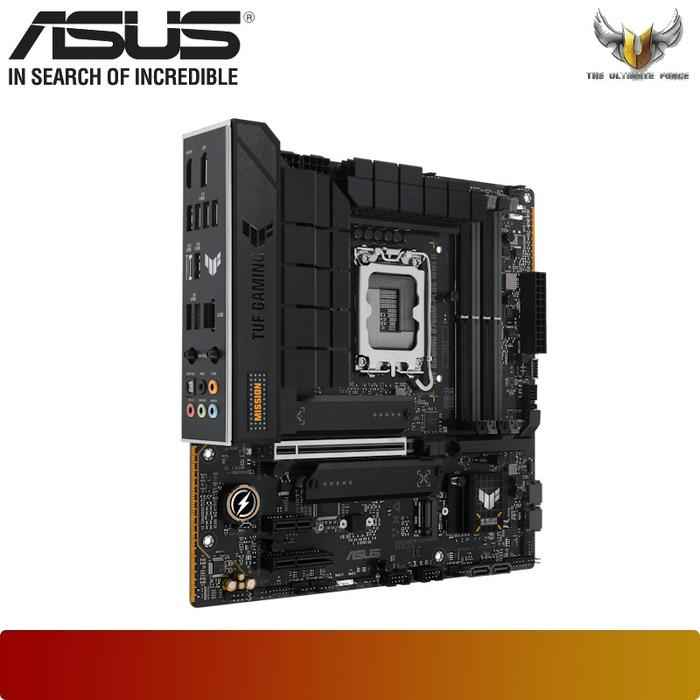

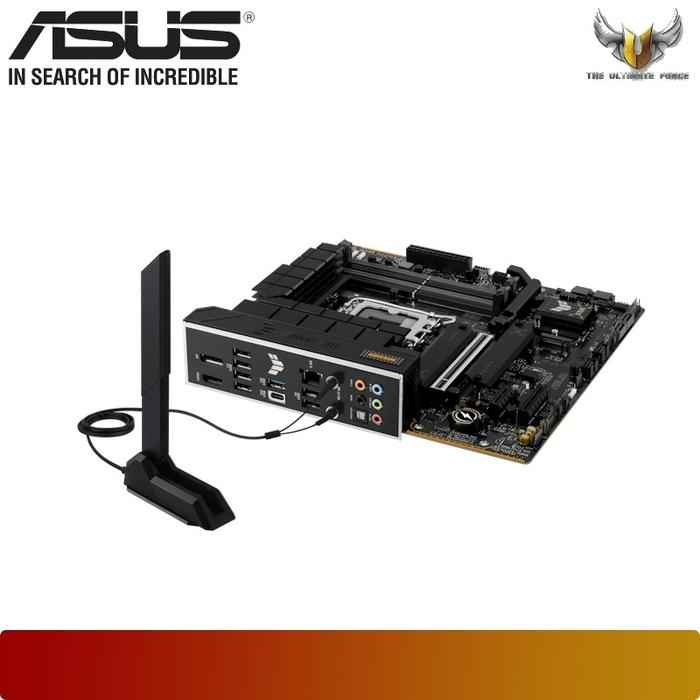

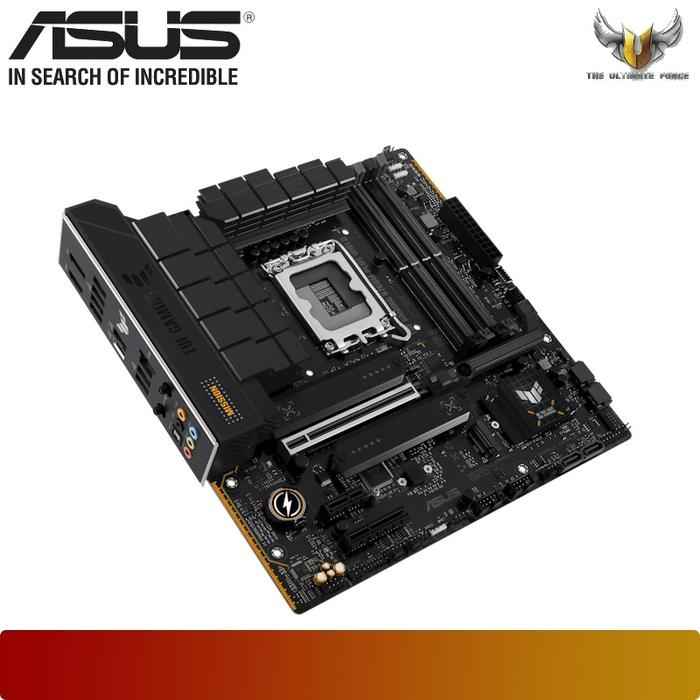

ASUS TUF GAMING B760M-PLUS WIFI II | Motherboard Intel B760 DDR5 mATX

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- TUF GAMING B760M-PLUS WIFI II

CPU
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Chipset
- Intel® B760 Chipset

Memory
- 4 x DIMM slots, Max. 192GB, DDR5
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)

Graphics
- 1 x DisplayPort**
- 1 x HDMI™port***

Expansion Slots
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x4 slot
- 1 x PCIe 3.0 x1 slot

Storage
- Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard

Wireless & Bluetooth
- Wi-Fi 6E
- 2x2 Wi-Fi 6E (802.11ax)
- Supports 2.4/5/6GHz frequency band*
- Bluetooth® v5.3**

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Accessories
Cables
- 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x ASUS Q-Antenna
- 1 x M.2 Rubber Package
- 1 x TUF Gaming sticker
- 2 x Screw packages for M.2 SSD
Documentation
- 1 x TUF Certification card
- 1 x User guide

Operating System
- Windows® 11, Windows® 10 64-bit

Form Factor
- mATX Form Factor
- 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
