ASUS TUF Gaming 750W Gold
| Model | TUF Gaming 750W Gold |
|---|---|
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 40°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage (Maximum Load / Combined Load) | +3.3V (25A / 130W) +5V (25A / 130W) +12V (62A / 744W) -12V (0.8A / 9.6W) +5Vsb (3A / 15W) |
| Total Output | 750W |

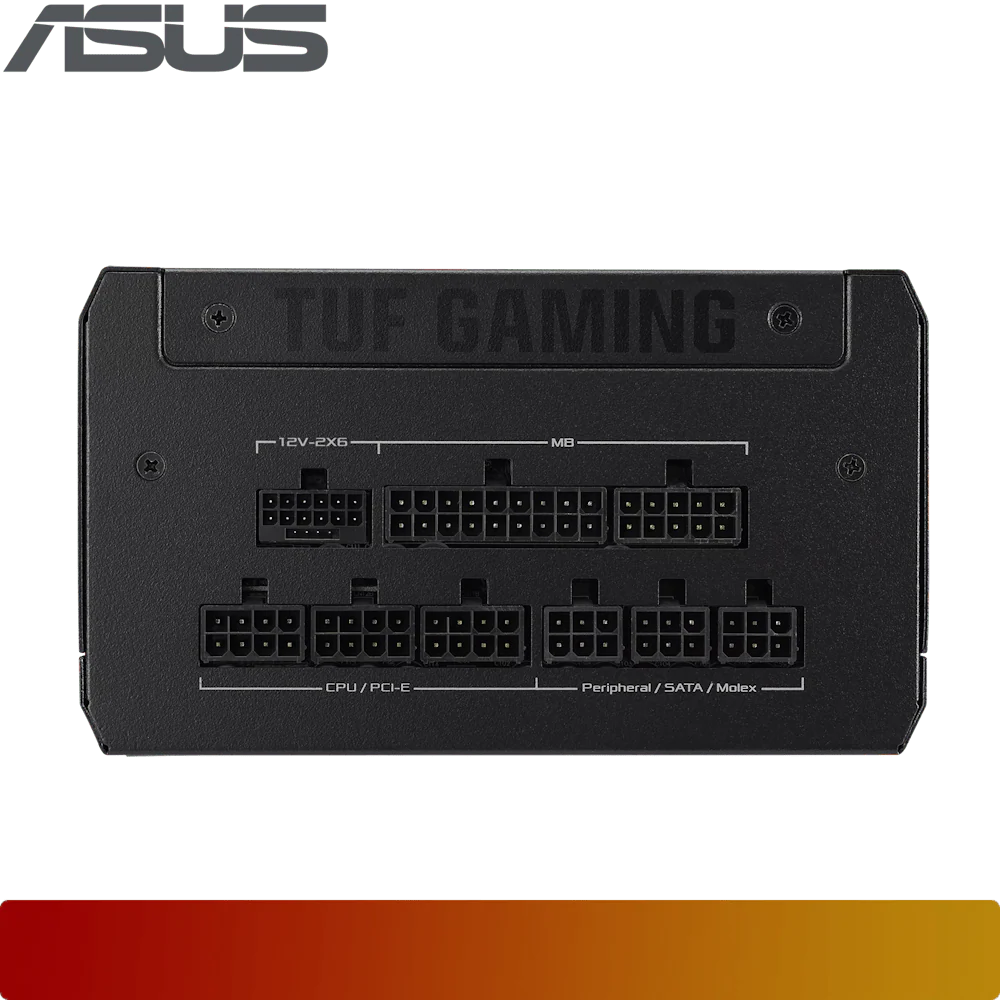

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
| Weight | 2.38kg (single PSU) |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load. |
$41.22
Original: $137.41
-70%ASUS TUF Gaming 750W Gold—
$137.41
$41.22Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | TUF Gaming 750W Gold |
|---|---|
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 40°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage (Maximum Load / Combined Load) | +3.3V (25A / 130W) +5V (25A / 130W) +12V (62A / 744W) -12V (0.8A / 9.6W) +5Vsb (3A / 15W) |
| Total Output | 750W |
| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
| Weight | 2.38kg (single PSU) |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load. |
