ASUS ROG STRIX B860-I GAMING WIFI | Motherboard Intel B860 LGA 1851 DDR5 Mini-ITX

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- ROG STRIX B860-I GAMING WIFI

CPU
- Support Intel Core Ultra Processors (Series 2)*

Chipset
- Intel B860 Chipset

Memory
- 2 x DIMM slots, max. 128GB, DDR5
- Dual channel memory architecture
- Supports Intel Extreme Memory Profile

Graphics
- 1 x DisplayPort**
- 1 x HDMI port***
- 1 x Intel Thunderbolt 4 supports
DisplayPort and Thunderbolt video outputs****

Expansion Slots
Intel Core Ultra Processors (Series 2)
- 1 x PCIe 5.0 x16 slot

Storage
- Total supports 2 x M.2 slots and 4 x SATA
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Intel 2.5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth v5.4***

Audio
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- - Supports up to 32-Bit/192 kHz playback*"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port

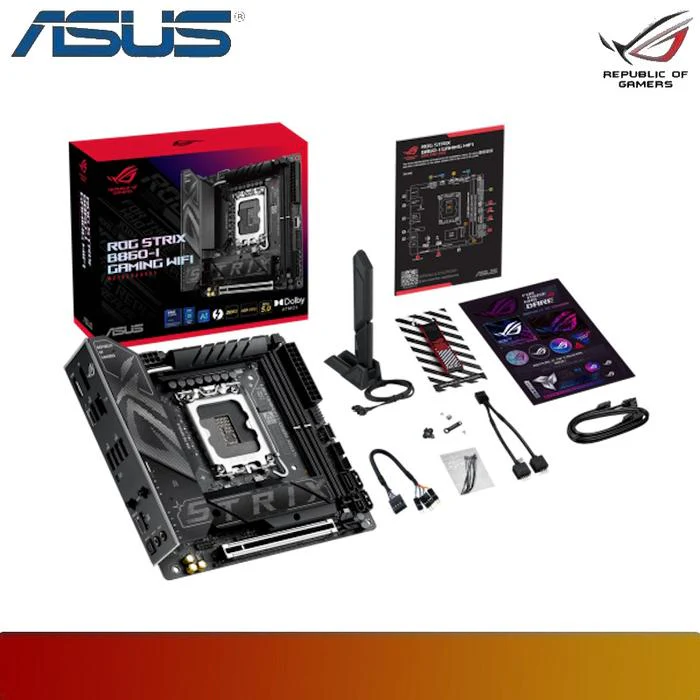

Accessories
Cables
- 2 x SATA 6Gb/s cables
- 1 x ROG USB2.0 splitter cable
- 1 x Panel cable
Miscellaneous
- 1 x ASUS WiFi Q-Antenna
- 1 x Cable ties package
- 1 x M.2 Q-Latch package
- 1 x Screw package for M.2 SSD
- 1 x M.2 Bracket
- 1 x ROG key chain
- 1 x ROG Strix stickers
Documentation
- 1 x Quick start guide

Operating System
- Windows 11 (22H2 & later)

Form Factor
- Mini-ITX Form Factor
- 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
