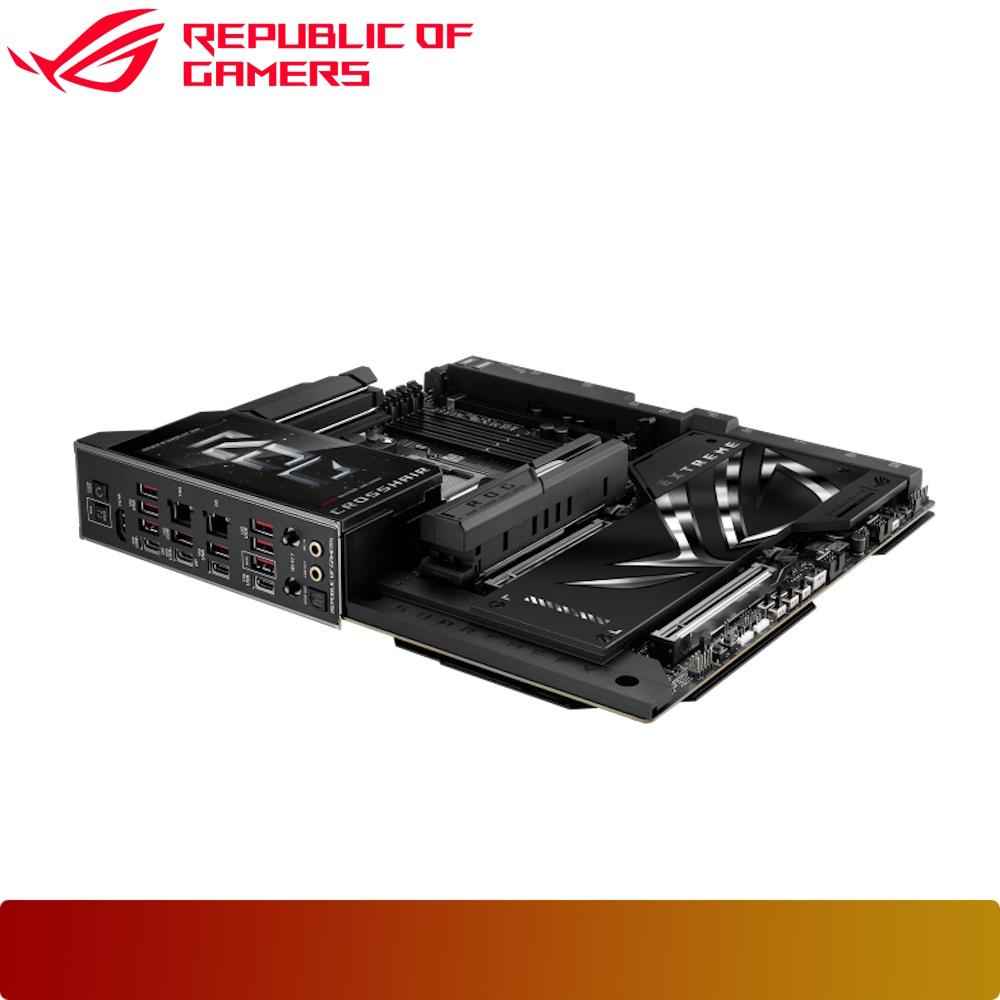

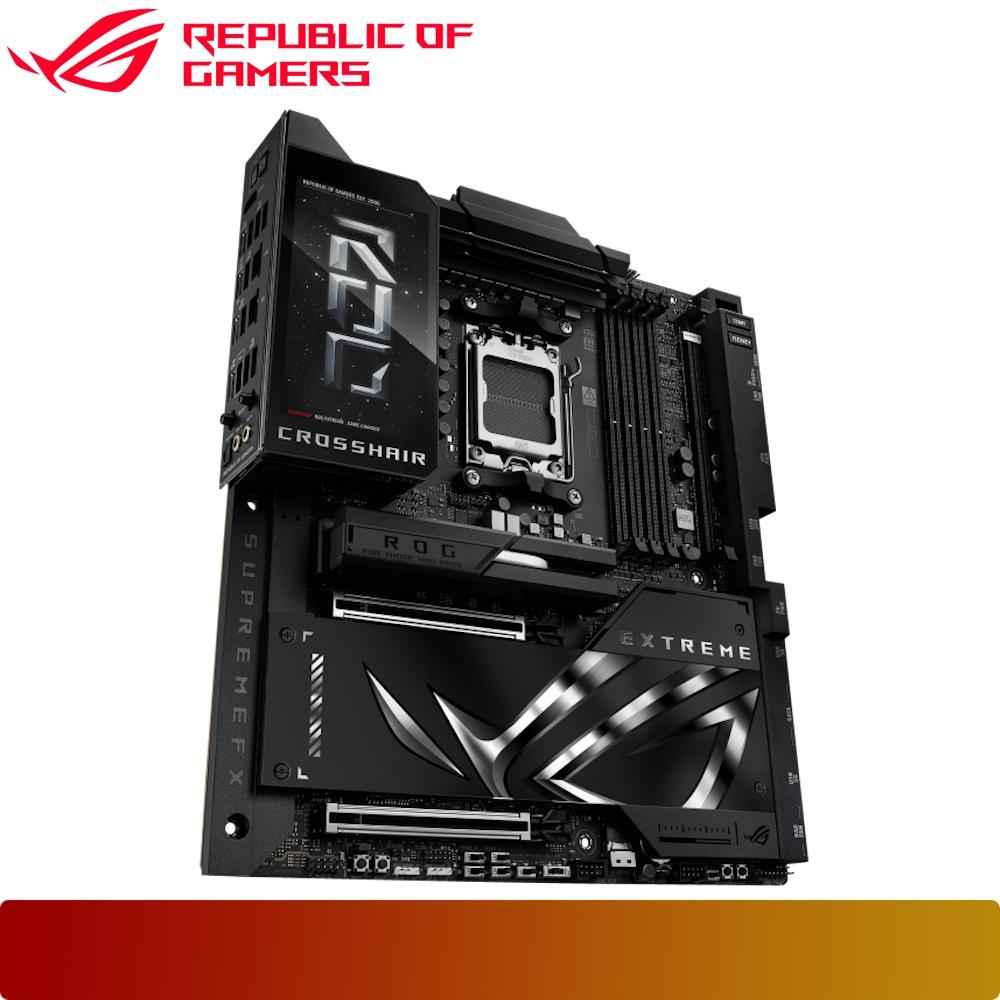

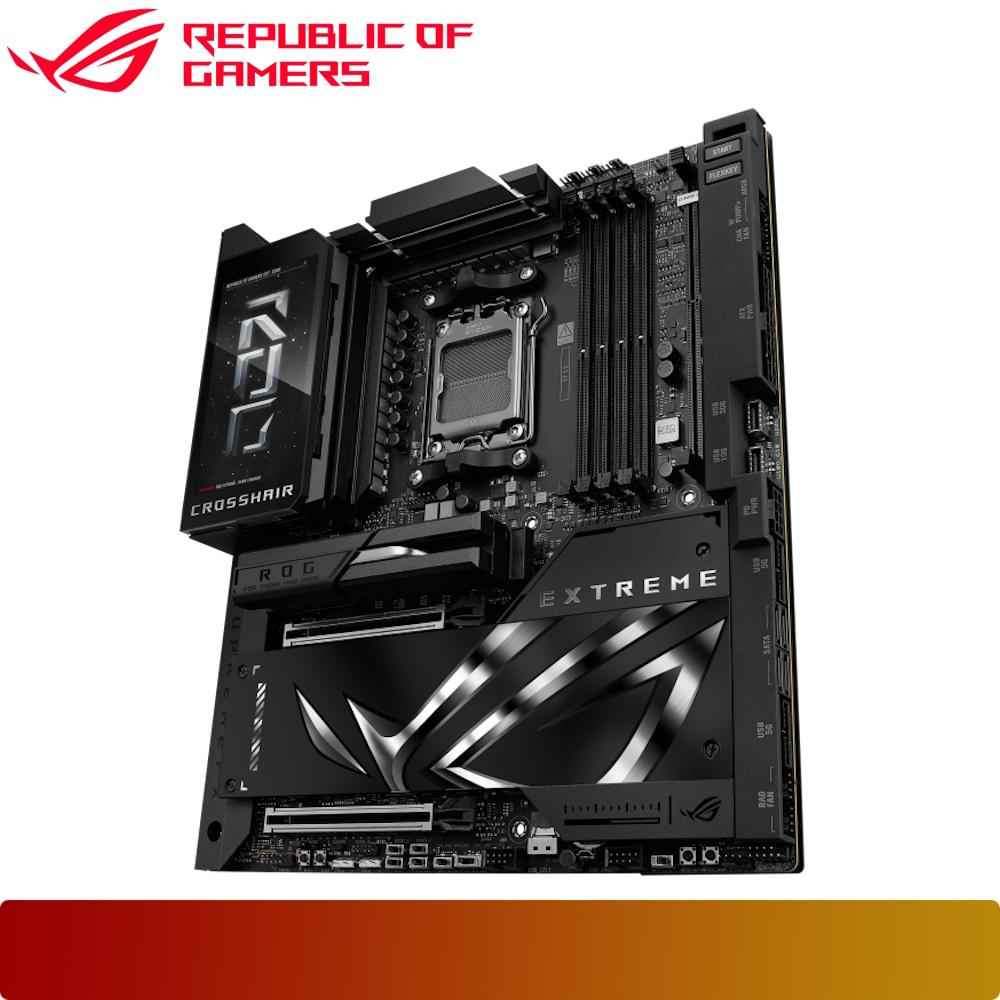

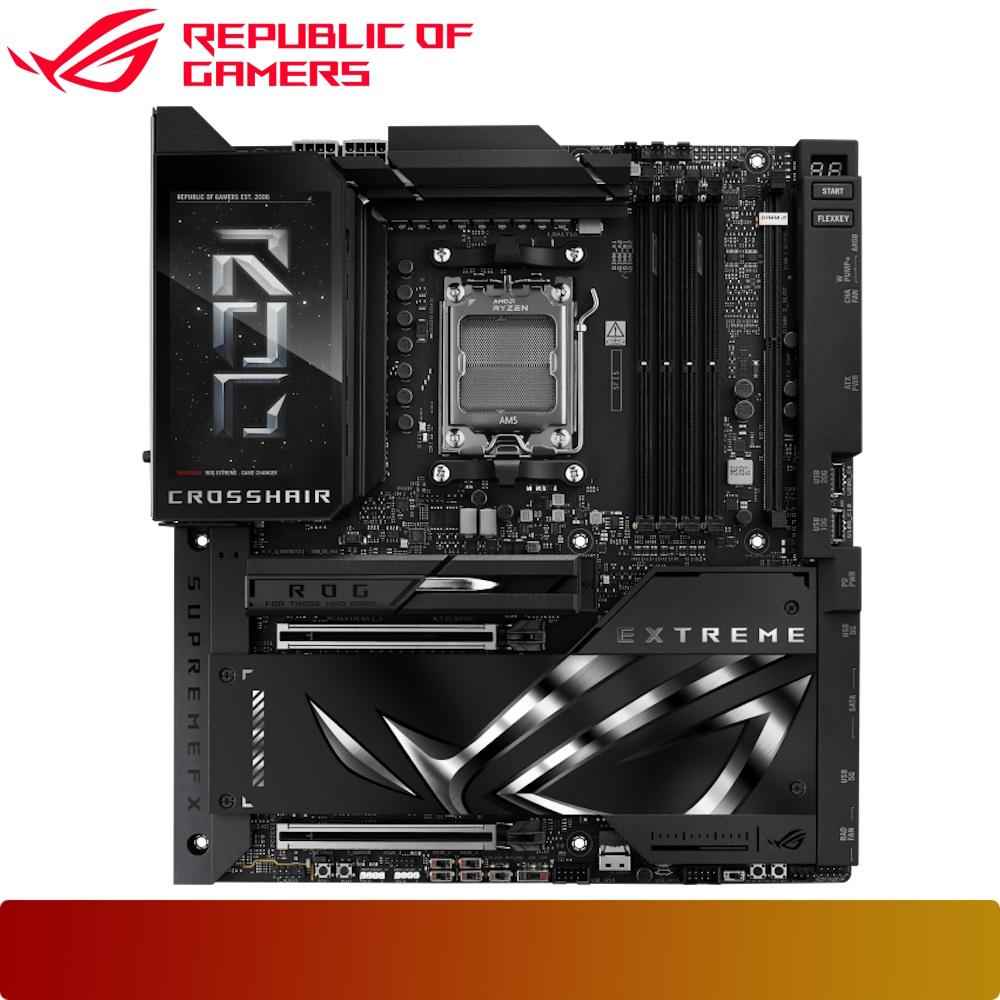

ASUS ROG CROSSHAIR X870E EXTREME
| Model | ROG CROSSHAIR X870E EXTREME |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, ECC and Non-ECC Supports up to 9000+MT/s (OC) Dual Channel Memory Architecture Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 2 x PCIe 5.0 x16 slots Ryzen™ 8000 Series (Specific): 2 x PCIe 4.0 x16 slots |
| Storage | Supports up to 5 x M.2 slots, 1 x SlimSAS connector, and 4 x SATA 6Gb/s ports Onboard M.2: 3 x slots (supports PCIe 5.0 x4 mode) ROG Q-DIMM.2: 2 x M.2 slots (supports PCIe 4.0 x4 mode) SATA: 4 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology Supports RAID 0/1/5/10 (Varies by CPU Series) |
| Ethernet | 1 x Realtek 5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (802.11be) 2x2 Supports 2.4/5/6GHz frequency band, 320MHz bandwidth, up to 6.5Gbps Bluetooth® v5.4*** |

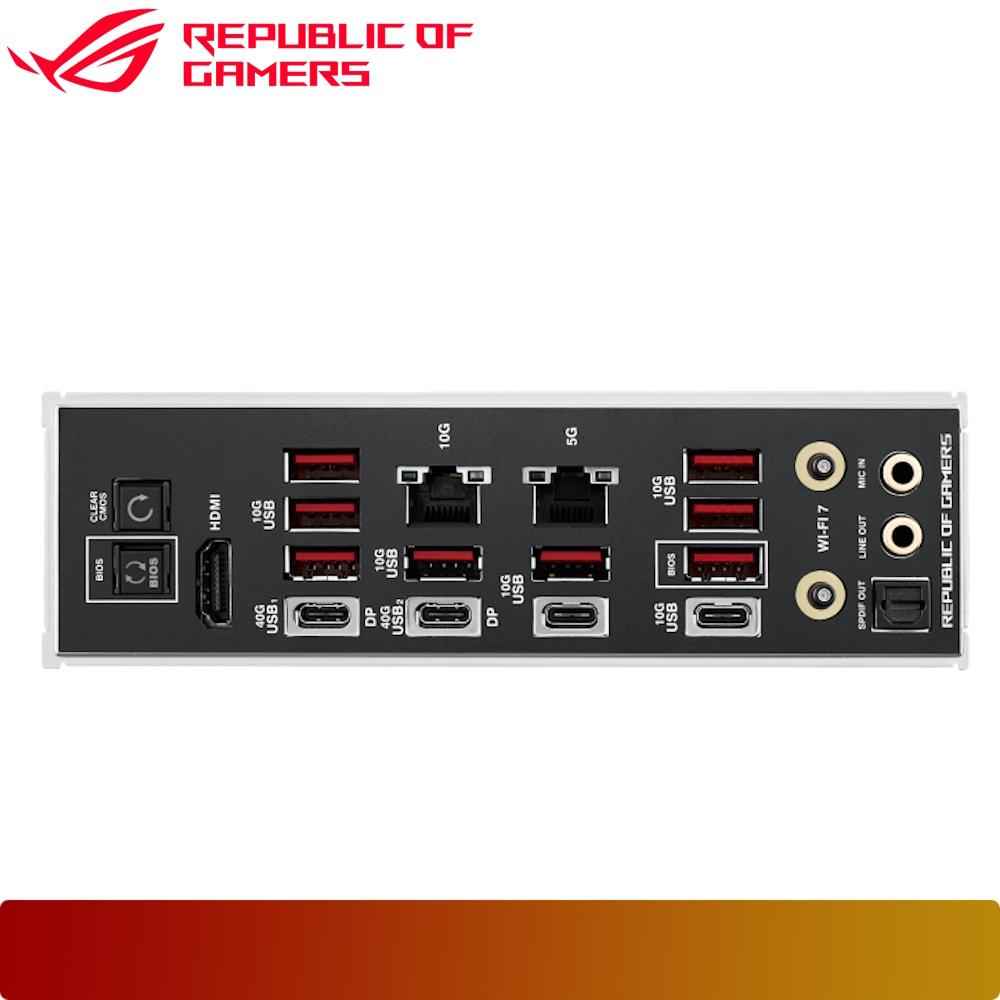

| USB (Total 22 Ports) | Rear USB (Total 12): 2 x USB4® (40Gbps, Type-C®) 10 x USB 10Gbps (8 x Type-A + 2 x Type-C®) Front USB (Total 10): 1 x USB 20Gbps connector (Type-C® with max. 60W PD/QC4+) 1 x USB 10Gbps connector (Type-C®) 2 x USB 5Gbps headers (4 additional ports) 2 x USB 2.0 headers (4 additional ports) |
| Audio | ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4082* ESS® ES9219 QUAD DAC 120 dB SNR stereo playback output Supports up to 32-Bit/384 kHz playback |
| Operating System | Windows® 11 |
| Form Factor | E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
$1,309.74
ASUS ROG CROSSHAIR X870E EXTREME—
$1,309.74
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | ROG CROSSHAIR X870E EXTREME |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, ECC and Non-ECC Supports up to 9000+MT/s (OC) Dual Channel Memory Architecture Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 2 x PCIe 5.0 x16 slots Ryzen™ 8000 Series (Specific): 2 x PCIe 4.0 x16 slots |
| Storage | Supports up to 5 x M.2 slots, 1 x SlimSAS connector, and 4 x SATA 6Gb/s ports Onboard M.2: 3 x slots (supports PCIe 5.0 x4 mode) ROG Q-DIMM.2: 2 x M.2 slots (supports PCIe 4.0 x4 mode) SATA: 4 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology Supports RAID 0/1/5/10 (Varies by CPU Series) |
| Ethernet | 1 x Realtek 5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (802.11be) 2x2 Supports 2.4/5/6GHz frequency band, 320MHz bandwidth, up to 6.5Gbps Bluetooth® v5.4*** |
| USB (Total 22 Ports) | Rear USB (Total 12): 2 x USB4® (40Gbps, Type-C®) 10 x USB 10Gbps (8 x Type-A + 2 x Type-C®) Front USB (Total 10): 1 x USB 20Gbps connector (Type-C® with max. 60W PD/QC4+) 1 x USB 10Gbps connector (Type-C®) 2 x USB 5Gbps headers (4 additional ports) 2 x USB 2.0 headers (4 additional ports) |
| Audio | ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4082* ESS® ES9219 QUAD DAC 120 dB SNR stereo playback output Supports up to 32-Bit/384 kHz playback |
| Operating System | Windows® 11 |
| Form Factor | E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
