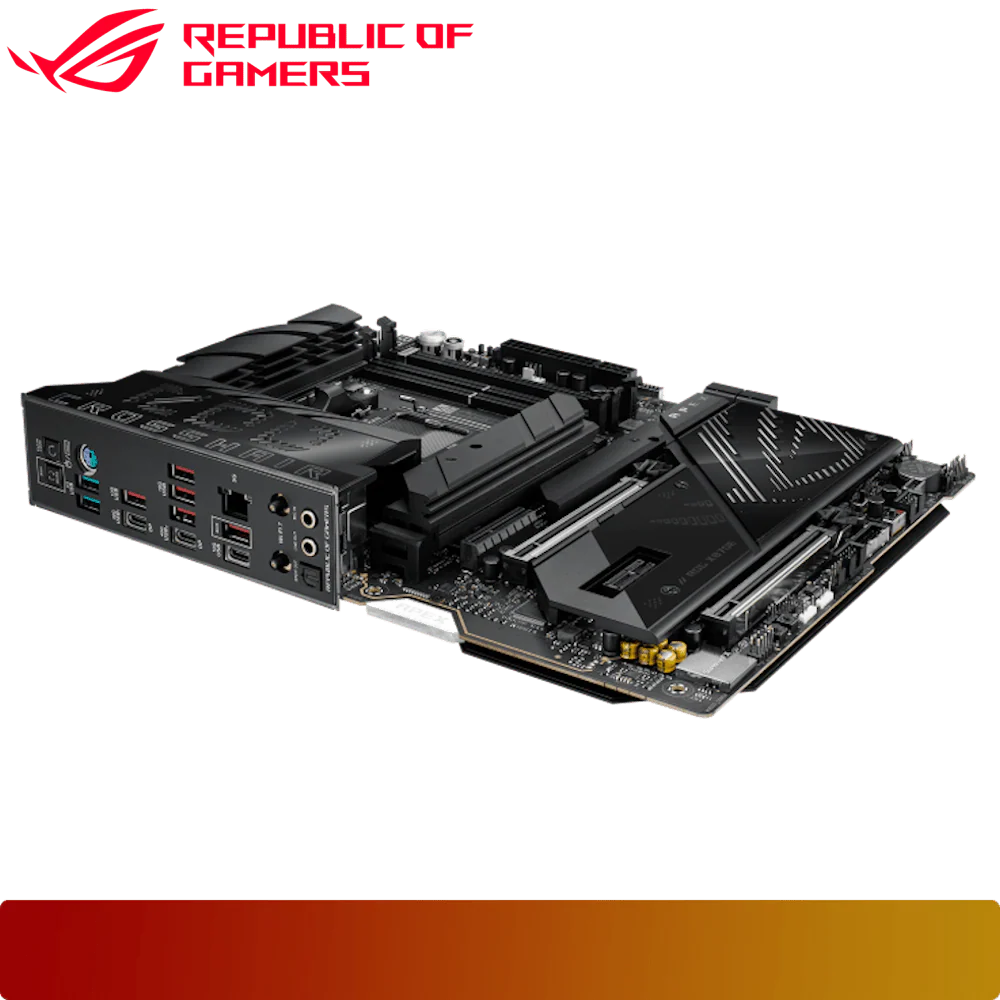

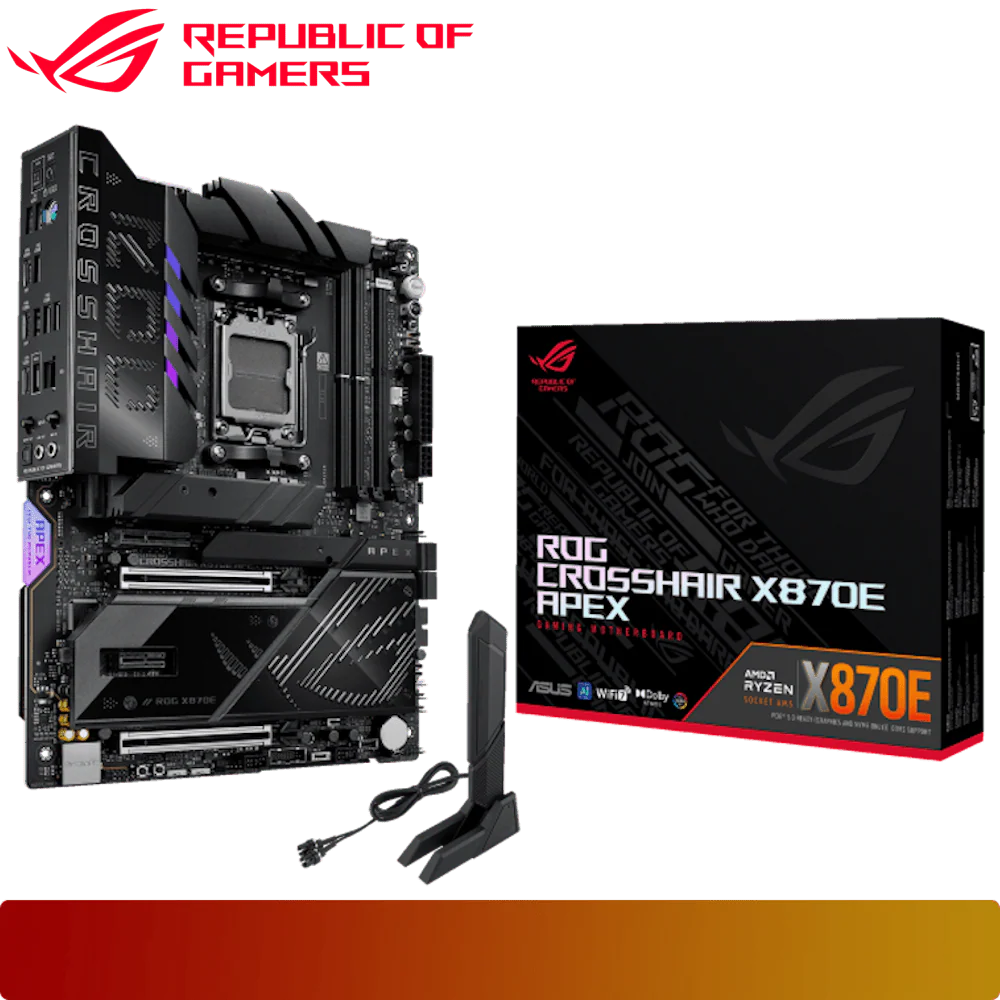

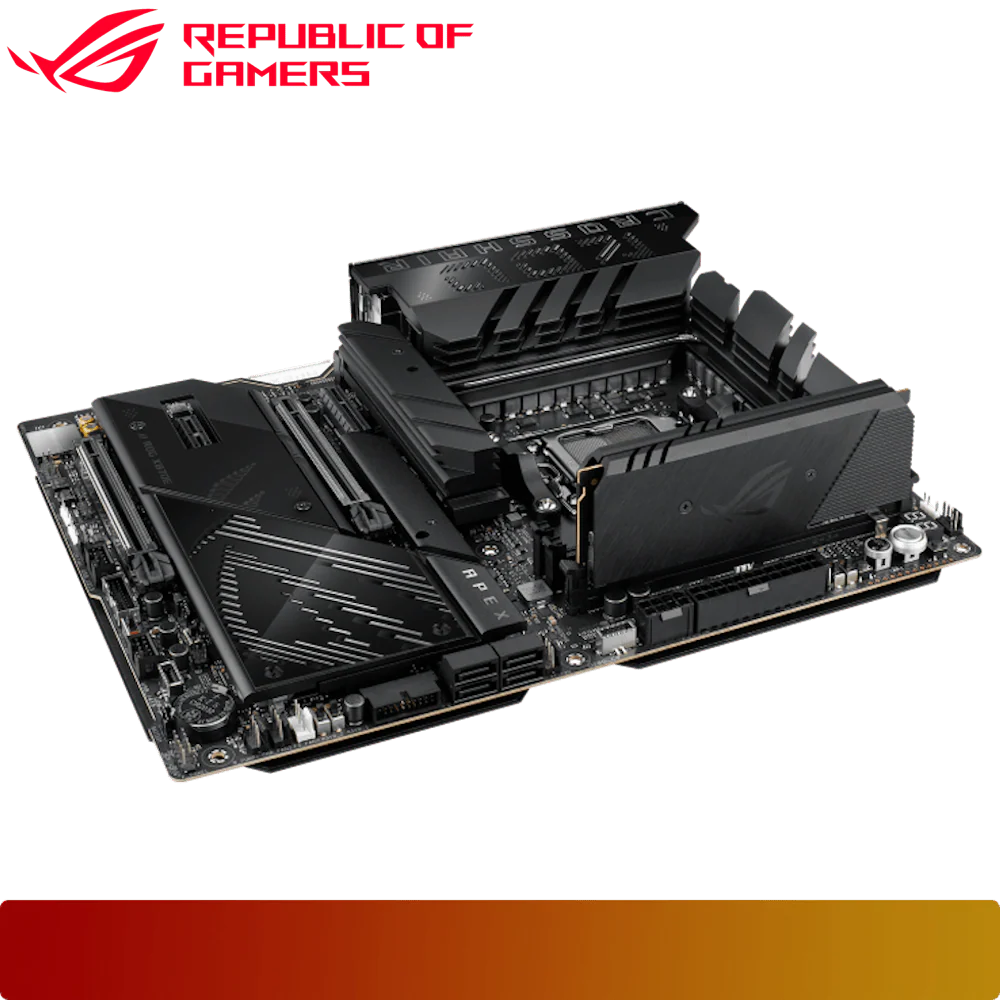

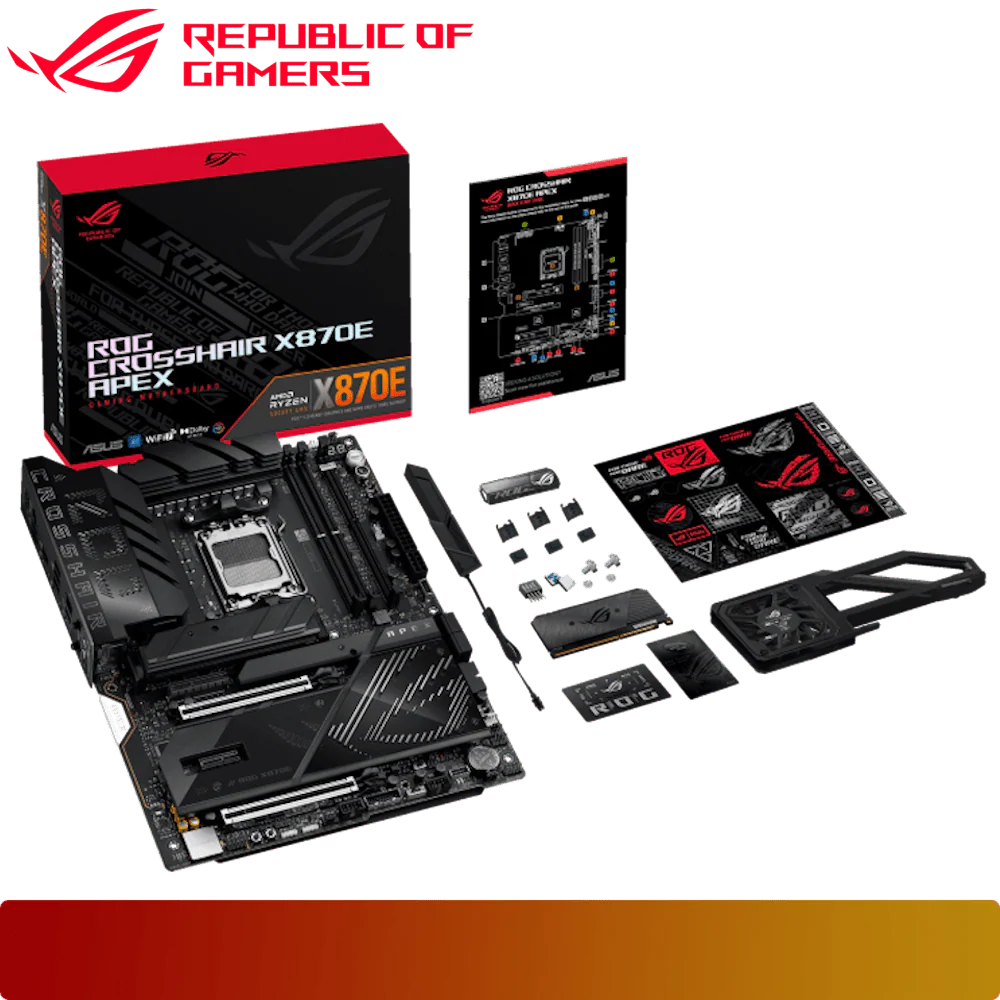

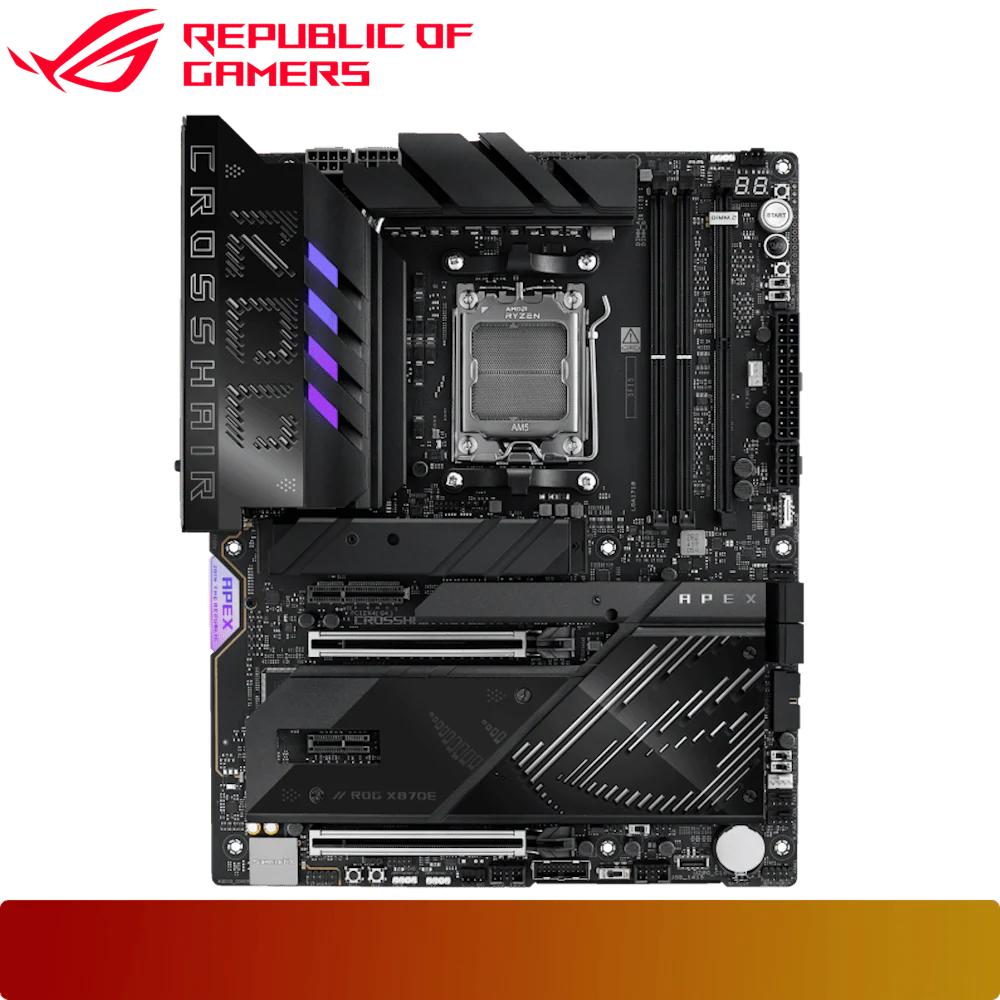

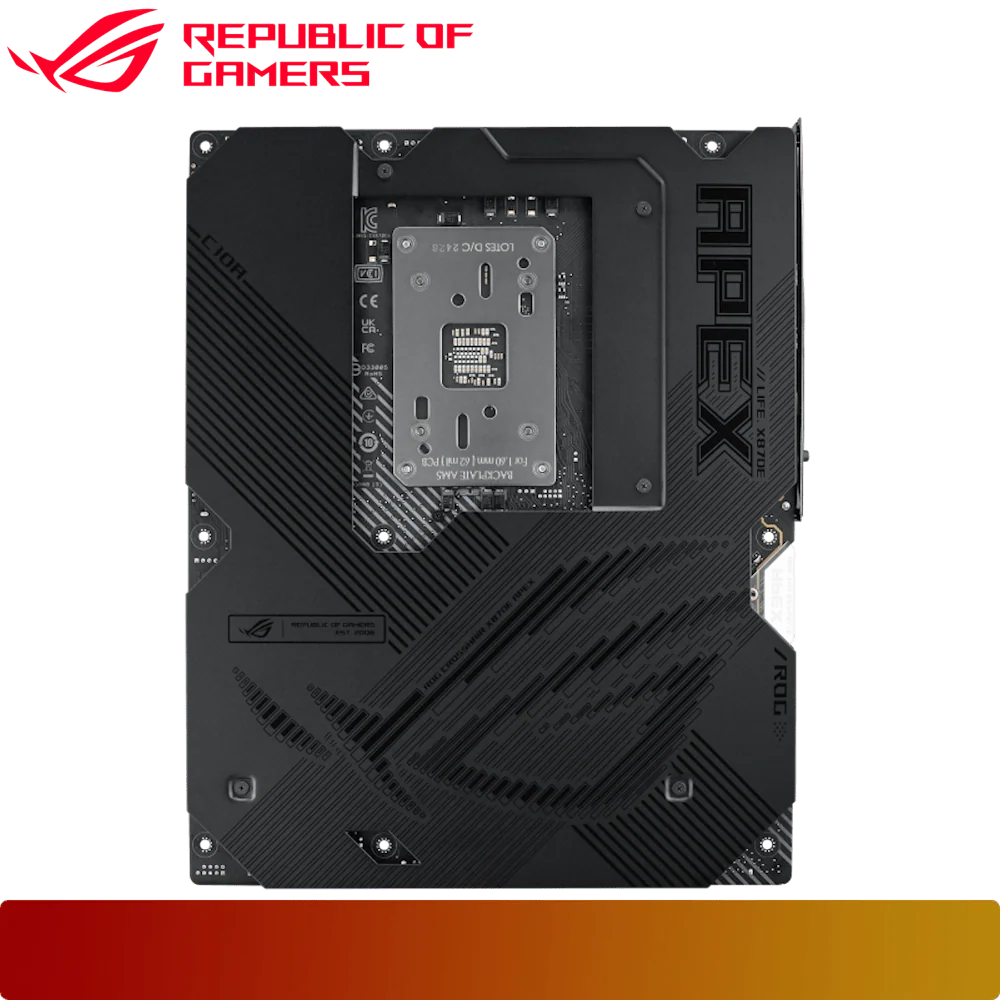

ASUS ROG CROSSHAIR X870E APEX
| Model | ROG CROSSHAIR X870E APEX |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9600+MT/s (OC) Dual Channel Memory Architecture Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 2 x USB4® (40Gbps) ports support USB Type-C® display outputs* |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 2 x PCIe 5.0 x16 slots Chipset: 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot |
| Storage | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports M.2 Onboard: 3 x slots (M.2_1, M.2_2, M.2_3 supports PCIe 5.0 x4 mode) ROG DIMM.2: 2 x M.2 slots (supports PCIe 4.0 x4 mode) SATA: 4 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology Supports RAID 0/1/5/10 (Varies by CPU Series) |
| Ethernet | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (802.11be) 2x2 Supports 2.4/5/6GHz frequency band, 320MHz bandwidth Bluetooth® v5.4**** |
| USB (Total 20 Ports) | Rear USB (Total 10): 2 x USB4® (40Gbps, Type-C®) 6 x USB 10Gbps (5 x Type-A + 1 x Type-C®) 2 x USB 5Gbps (Type-A) Front USB (Total 10): 1 x USB 20Gbps connector (Type-C® with max. 60W PD/QC4+) 1 x USB 20Gbps connector (Type-C®) 2 x USB 5Gbps headers (4 additional ports) 2 x USB 2.0 headers (4 additional ports) |
| Audio | ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4080* Savitech SV3H712 AMP 120 dB SNR stereo playback output Supports up to 32-Bit/384 kHz playback |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
$731.54
ASUS ROG CROSSHAIR X870E APEX—
$731.54
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | ROG CROSSHAIR X870E APEX |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9600+MT/s (OC) Dual Channel Memory Architecture Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 2 x USB4® (40Gbps) ports support USB Type-C® display outputs* |
| Expansion Slots | Ryzen™ 9000 & 7000 Series: 2 x PCIe 5.0 x16 slots Chipset: 1 x PCIe 4.0 x4 slot, 1 x PCIe 3.0 x1 slot |
| Storage | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports M.2 Onboard: 3 x slots (M.2_1, M.2_2, M.2_3 supports PCIe 5.0 x4 mode) ROG DIMM.2: 2 x M.2 slots (supports PCIe 4.0 x4 mode) SATA: 4 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology Supports RAID 0/1/5/10 (Varies by CPU Series) |
| Ethernet | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (802.11be) 2x2 Supports 2.4/5/6GHz frequency band, 320MHz bandwidth Bluetooth® v5.4**** |
| USB (Total 20 Ports) | Rear USB (Total 10): 2 x USB4® (40Gbps, Type-C®) 6 x USB 10Gbps (5 x Type-A + 1 x Type-C®) 2 x USB 5Gbps (Type-A) Front USB (Total 10): 1 x USB 20Gbps connector (Type-C® with max. 60W PD/QC4+) 1 x USB 20Gbps connector (Type-C®) 2 x USB 5Gbps headers (4 additional ports) 2 x USB 2.0 headers (4 additional ports) |
| Audio | ROG SupremeFX 7.1 Surround Sound HD Audio CODEC ALC4080* Savitech SV3H712 AMP 120 dB SNR stereo playback output Supports up to 32-Bit/384 kHz playback |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
