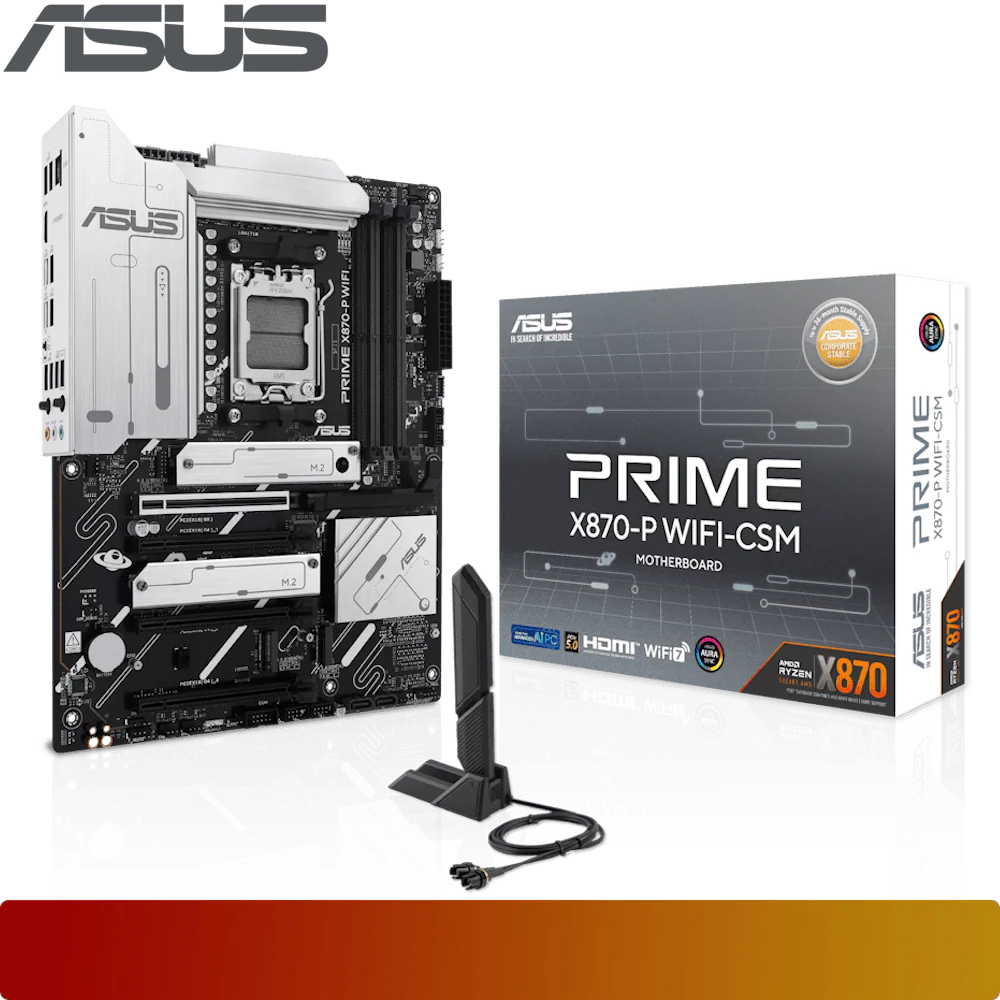

ASUS PRIME X870-P WIFI-CSM
| Model | PRIME X870-P WIFI-CSM |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) Dual Channel, Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot (x16 mode) Chipset: 3 x PCIe 4.0 x16 slots (support x1 mode) |
| Storage | Total 4 x M.2 slots and 2 x SATA 6Gb/s ports M.2 Slots support: 1x PCIe 5.0 x4, 2x PCIe 4.0 x4, 1x PCIe 3.0 x2 |
| RAID Support | AMD RAIDXpert2 Technology Supports RAID 0/1/5/10 (Varies by CPU Series) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (2x2 802.11be, 160MHz bandwidth) Bluetooth® v5.4 |

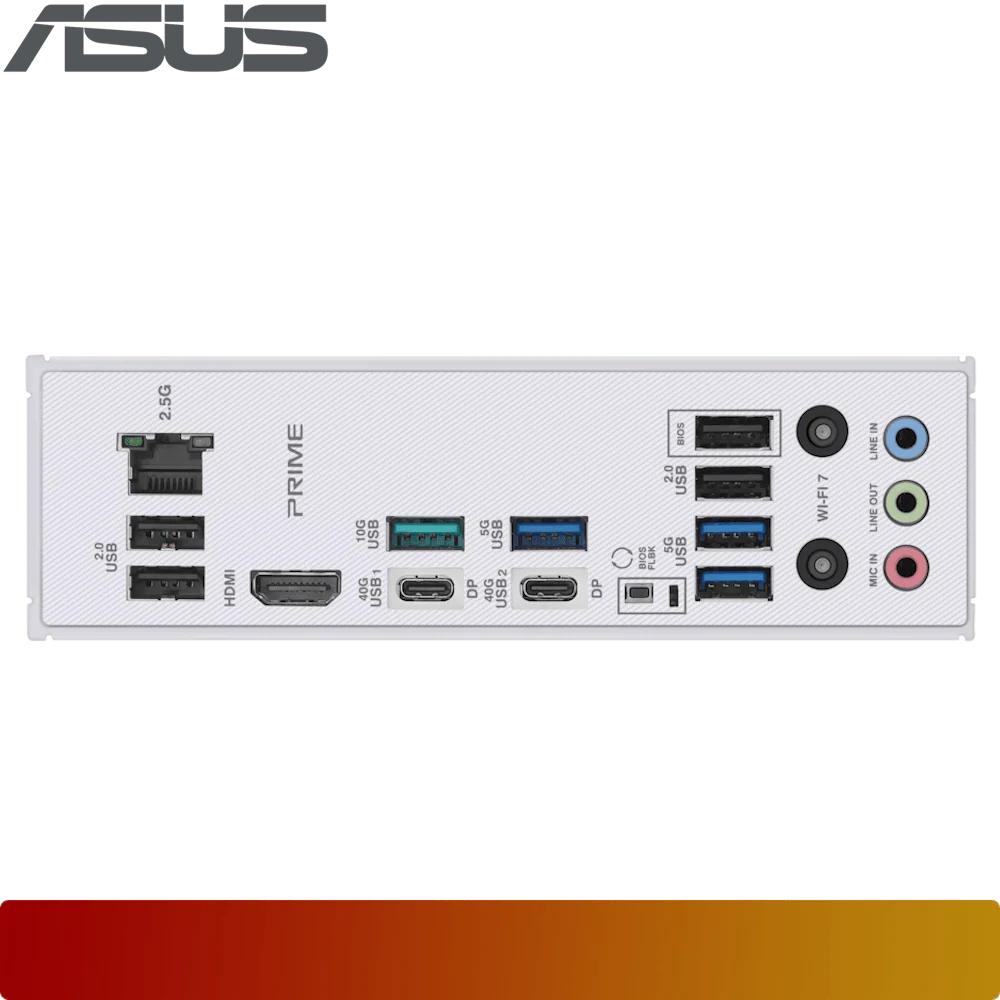

| USB (Total 17 Ports) | Rear (10 ports): 2 x USB4® (40Gbps Type-C), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) Front (7 ports): 1 x USB 10Gbps connector (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 HD Audio CODEC Supports up to 24-Bit/192 kHz playback |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| CSM Feature | ASUS Control Center Express (ACCE) included |
$92.55
Original: $308.51
-70%ASUS PRIME X870-P WIFI-CSM—
$308.51
$92.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | PRIME X870-P WIFI-CSM |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) Dual Channel, Supports AMD EXPO™ / ASUS AEMP |
| Graphics | 1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot (x16 mode) Chipset: 3 x PCIe 4.0 x16 slots (support x1 mode) |
| Storage | Total 4 x M.2 slots and 2 x SATA 6Gb/s ports M.2 Slots support: 1x PCIe 5.0 x4, 2x PCIe 4.0 x4, 1x PCIe 3.0 x2 |
| RAID Support | AMD RAIDXpert2 Technology Supports RAID 0/1/5/10 (Varies by CPU Series) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (2x2 802.11be, 160MHz bandwidth) Bluetooth® v5.4 |
| USB (Total 17 Ports) | Rear (10 ports): 2 x USB4® (40Gbps Type-C), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) Front (7 ports): 1 x USB 10Gbps connector (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 HD Audio CODEC Supports up to 24-Bit/192 kHz playback |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| CSM Feature | ASUS Control Center Express (ACCE) included |
