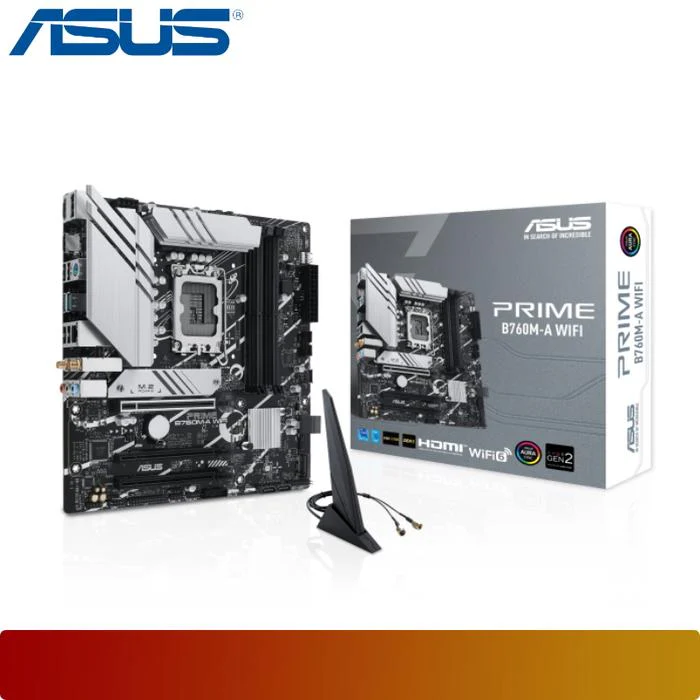

ASUS PRIME B760M-A WIFI | Motherboard Intel LGA 1700 DDR5 Micro ATX

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Model
- PRIME B760M-A WIFI

CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Chipset
- Intel® B760 Chipset

Memory
- 4 x DIMM slots, Max. 128GB
- Supports Intel® Extreme Memory Profile (XMP)

Graphics
- 1 x DisplayPort**
- 2 x HDMITM ports***

Expansion Slots
- 1 x PCIe 4.0 x16 slot
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage.
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports

Ethernet
- 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2

Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Accessories
Cables
- 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
Documentation
- 1 x User guide

Operating System
- Windows® 11, Windows® 10 64-bit

Form Factor
- mATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
