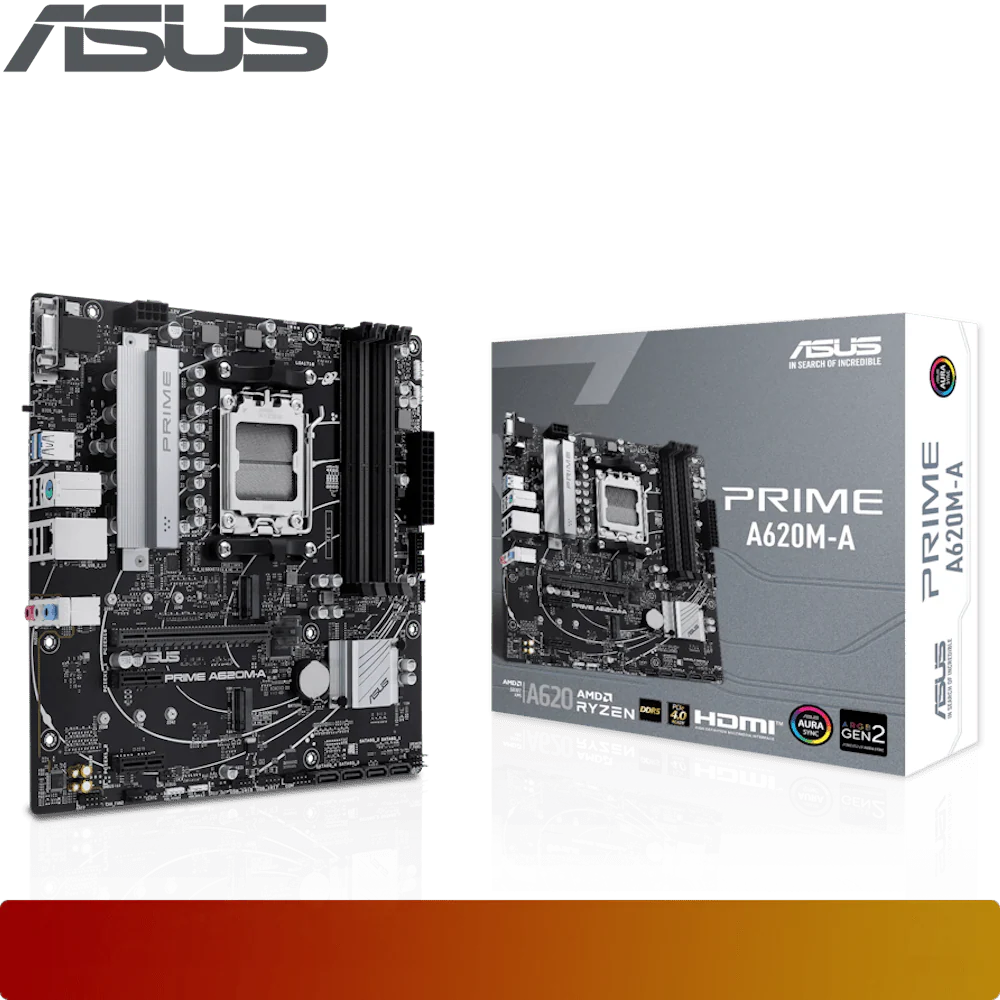

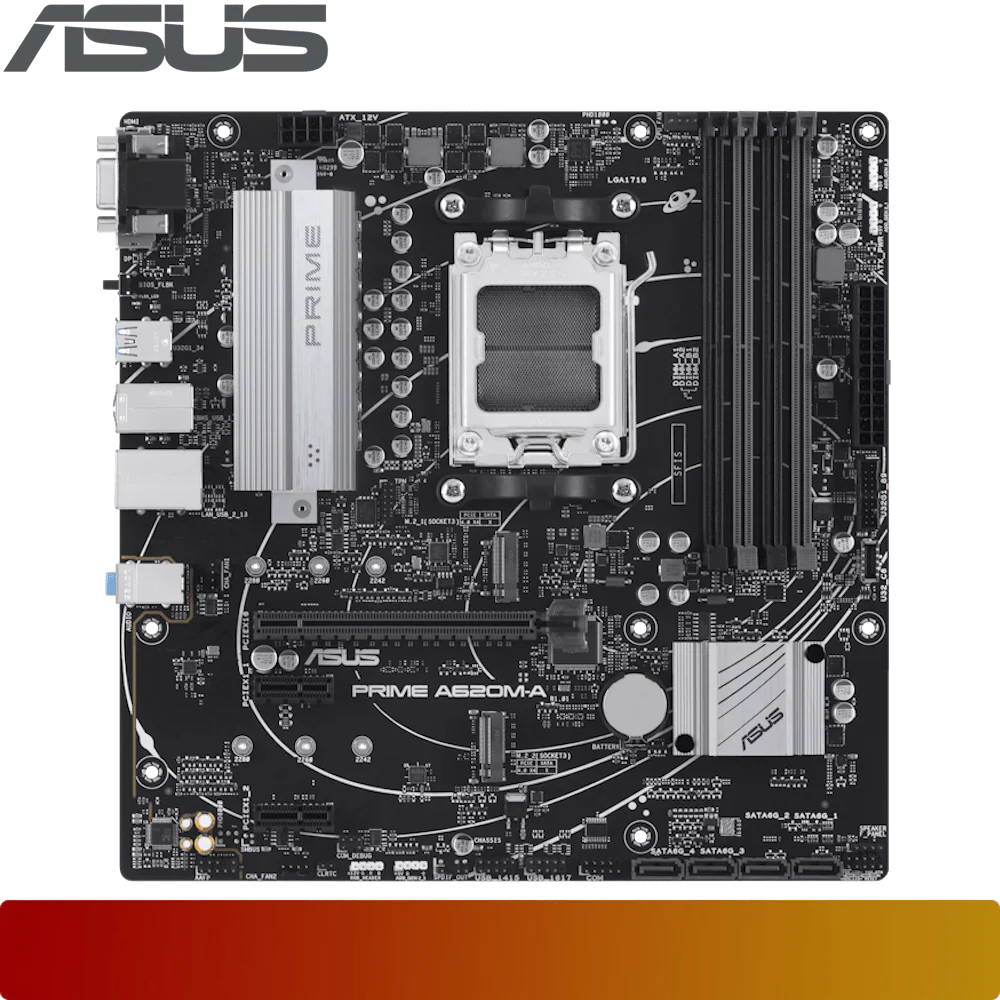

ASUS PRIME A620M-A
| Model | PRIME A620M-A |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD A620 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/.../4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) & OptiMem II |
| Graphics | 1 x DisplayPort** (Max. 8K@60Hz) 1 x VGA port 1 x HDMI™ port*** (Max. 4K@60Hz) |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 4.0 x16 slot (x16 mode) AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (x8/x4 mode)** AMD A620 Chipset: 2 x PCIe 3.0 x1 slots |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* M.2_1 slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode via CPU) M.2_2 slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode via CPU/Chipset) 4 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB (Total 13 Ports) | Rear USB (Total 6): 2 x USB 3.2 Gen 1 (5G) (Type-A), 4 x USB 2.0 (Type-A) Front USB (Total 7): 1 x USB 3.2 Gen 1 (5G) connector (Type-C®), 1 x USB 3.2 Gen 1 (5G) header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC* Supports up to 24-Bit/192 kHz playback |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 (5G) (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI™ port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
$32.73
Original: $109.09
-70%ASUS PRIME A620M-A—
$109.09
$32.73Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | PRIME A620M-A |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD A620 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/.../4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) & OptiMem II |
| Graphics | 1 x DisplayPort** (Max. 8K@60Hz) 1 x VGA port 1 x HDMI™ port*** (Max. 4K@60Hz) |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 4.0 x16 slot (x16 mode) AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot (x8/x4 mode)** AMD A620 Chipset: 2 x PCIe 3.0 x1 slots |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* M.2_1 slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode via CPU) M.2_2 slot: Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode via CPU/Chipset) 4 x SATA 6Gb/s ports |
| RAID Support | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB (Total 13 Ports) | Rear USB (Total 6): 2 x USB 3.2 Gen 1 (5G) (Type-A), 4 x USB 2.0 (Type-A) Front USB (Total 7): 1 x USB 3.2 Gen 1 (5G) connector (Type-C®), 1 x USB 3.2 Gen 1 (5G) header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC* Supports up to 24-Bit/192 kHz playback |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 (5G) (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI™ port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
