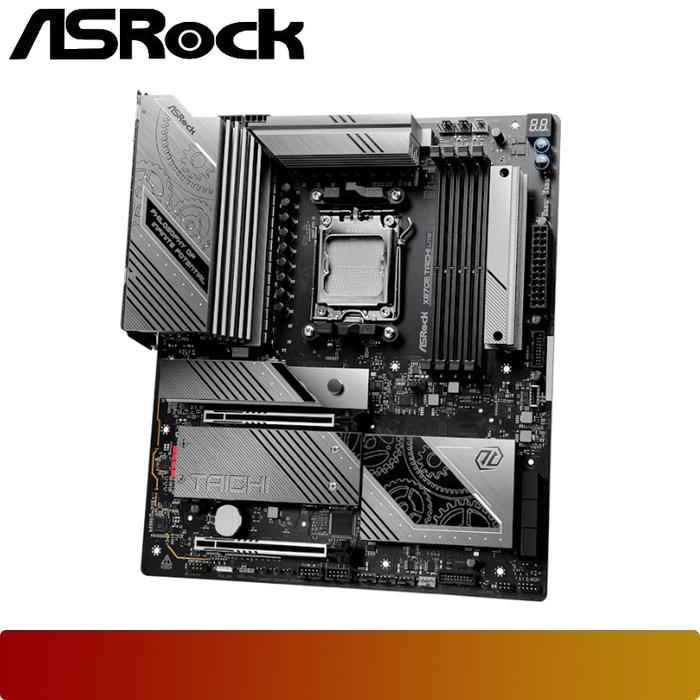

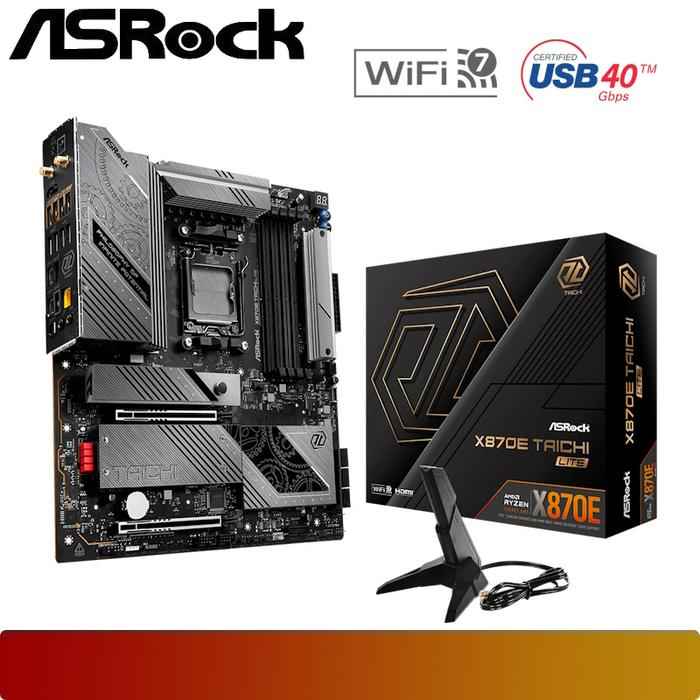

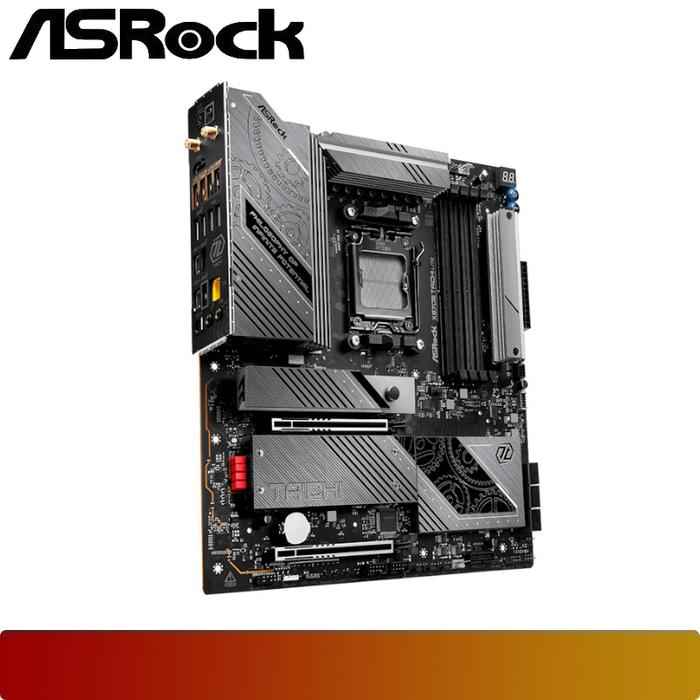

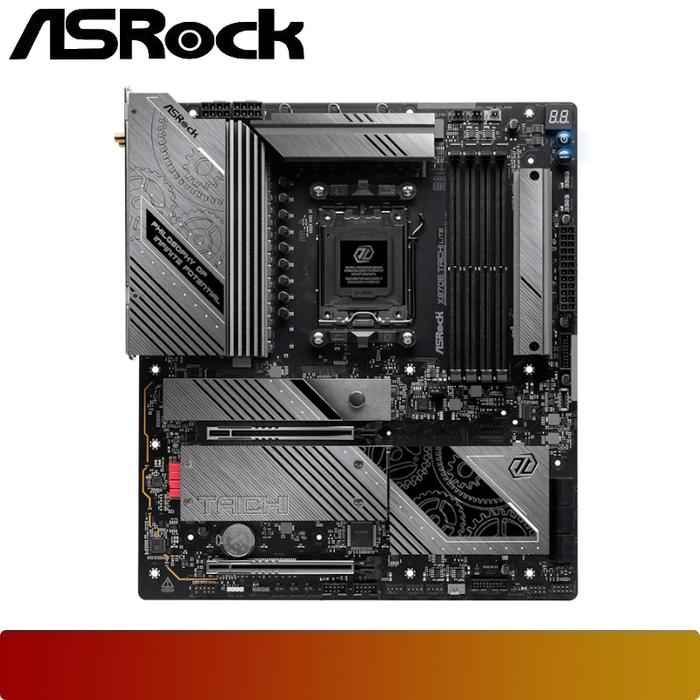

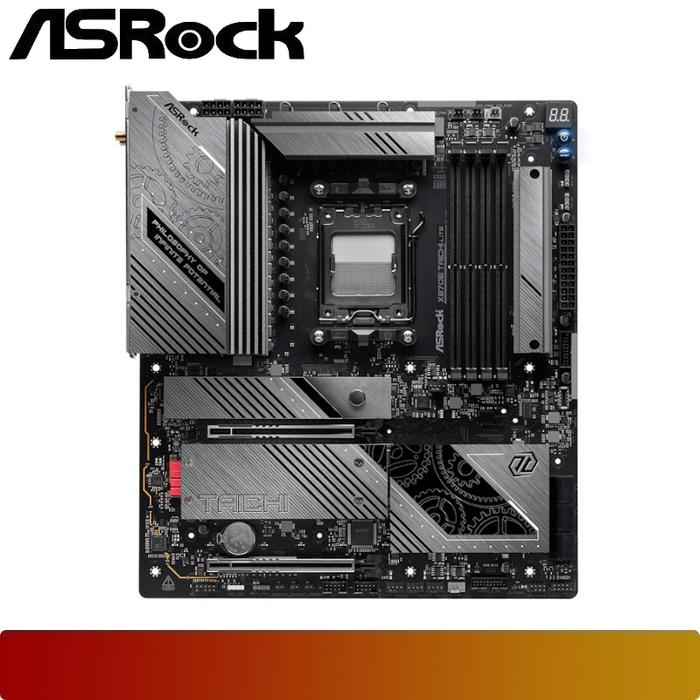

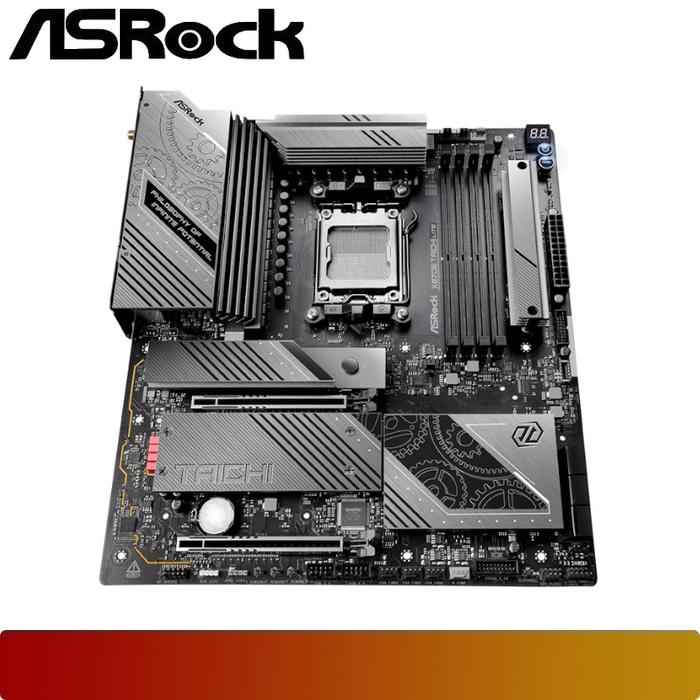

ASROCK X870E Taichi Lite
| Component | Detail |
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | 4 x DDR5 DIMM, Max. 256GB, Supports up to DDR5 8200+(OC) |
| PCIe Slots | 2 x PCIe 5.0 x16 Slots (supports x16 or x8/x8 mode) |
| Graphics Output | 1 x HDMI 2.1, 2 x USB4 (supports DisplayPort 1.4) |
| Form Factor | EATX (Extended ATX) |
| Unique Feature | Server-Grade Low-Loss PCB, 20+2+1 Power Phase, 105A SPS, Flexible Integrated I/O Shield |
| Type | Quantity & Standard |
|---|---|
| M.2 (SSD) | 1 x Blazing M.2 Socket (PCIe Gen5x4) 3 x Hyper M.2 Sockets (PCIe Gen4x4) |
| SATA | 6 x SATA3 6.0 Gb/s Connectors |
| Interface | Detail |
|---|---|
| LAN | 2.5 Gigabit LAN (Realtek RTL8125BG) |
| Wireless LAN | 802.11be 2x2 Wi-Fi 7 Module + Bluetooth |

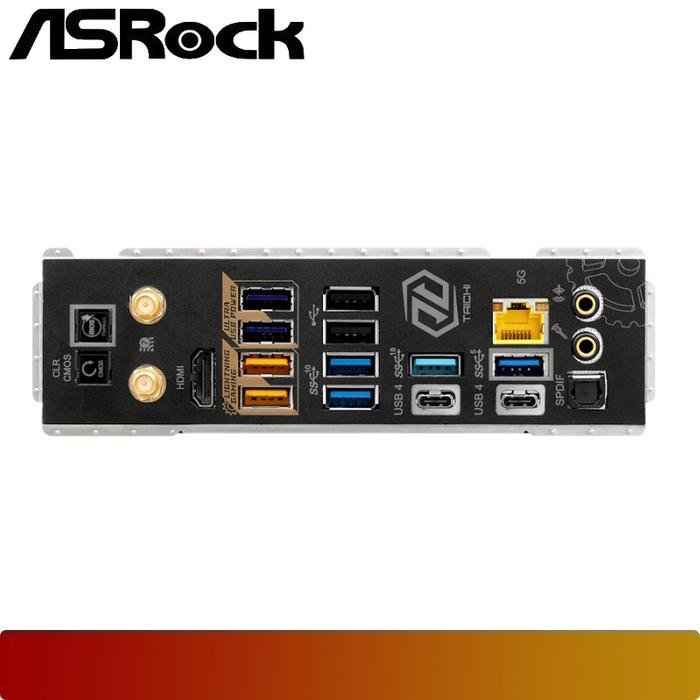

| Rear USB Ports | 2 x USB4 Type-C (40 Gb/s) 5 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen2x2 Type-C Connector 2 x USB 3.2 Gen1 Connectors 3 x USB 2.0 Connectors |
$144.41
Original: $481.38
-70%ASROCK X870E Taichi Lite—
$481.38
$144.41Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Component | Detail |
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | 4 x DDR5 DIMM, Max. 256GB, Supports up to DDR5 8200+(OC) |
| PCIe Slots | 2 x PCIe 5.0 x16 Slots (supports x16 or x8/x8 mode) |
| Graphics Output | 1 x HDMI 2.1, 2 x USB4 (supports DisplayPort 1.4) |
| Form Factor | EATX (Extended ATX) |
| Unique Feature | Server-Grade Low-Loss PCB, 20+2+1 Power Phase, 105A SPS, Flexible Integrated I/O Shield |
| Type | Quantity & Standard |
|---|---|
| M.2 (SSD) | 1 x Blazing M.2 Socket (PCIe Gen5x4) 3 x Hyper M.2 Sockets (PCIe Gen4x4) |
| SATA | 6 x SATA3 6.0 Gb/s Connectors |
| Interface | Detail |
|---|---|
| LAN | 2.5 Gigabit LAN (Realtek RTL8125BG) |
| Wireless LAN | 802.11be 2x2 Wi-Fi 7 Module + Bluetooth |
| Rear USB Ports | 2 x USB4 Type-C (40 Gb/s) 5 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen2x2 Type-C Connector 2 x USB 3.2 Gen1 Connectors 3 x USB 2.0 Connectors |
