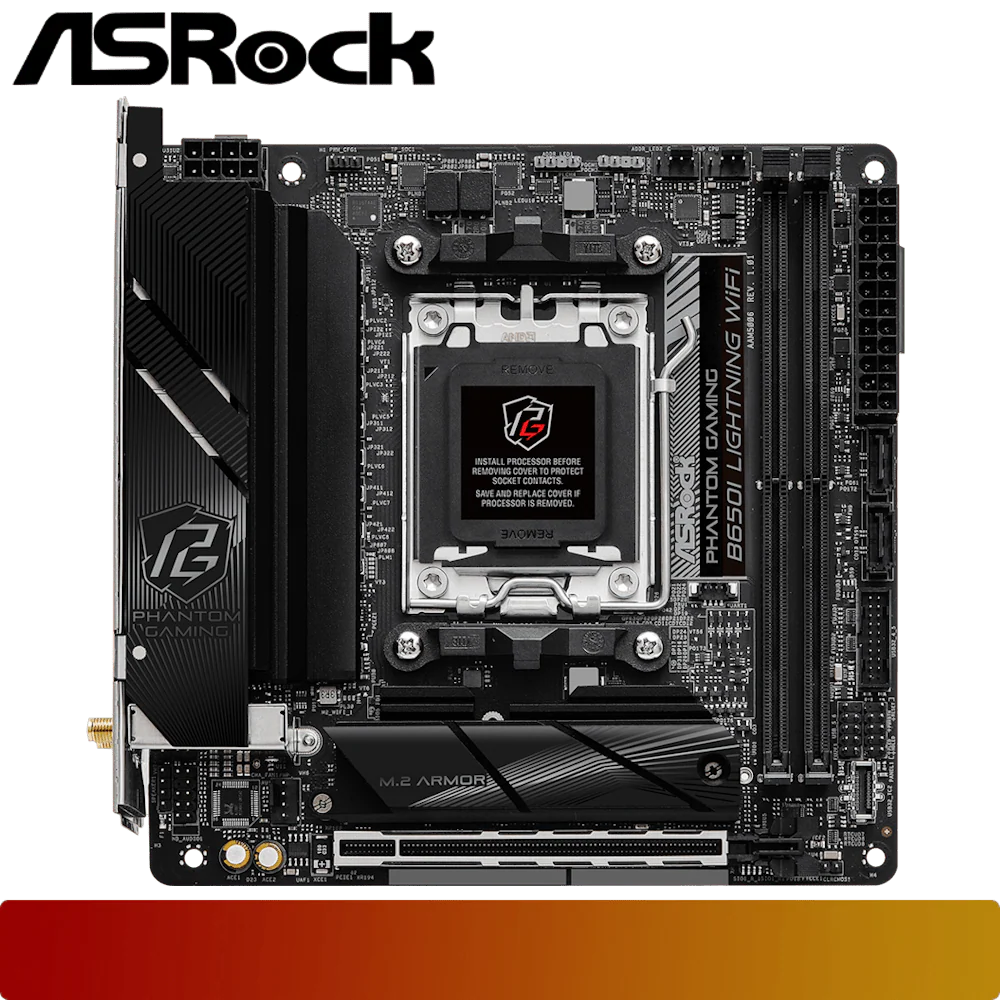

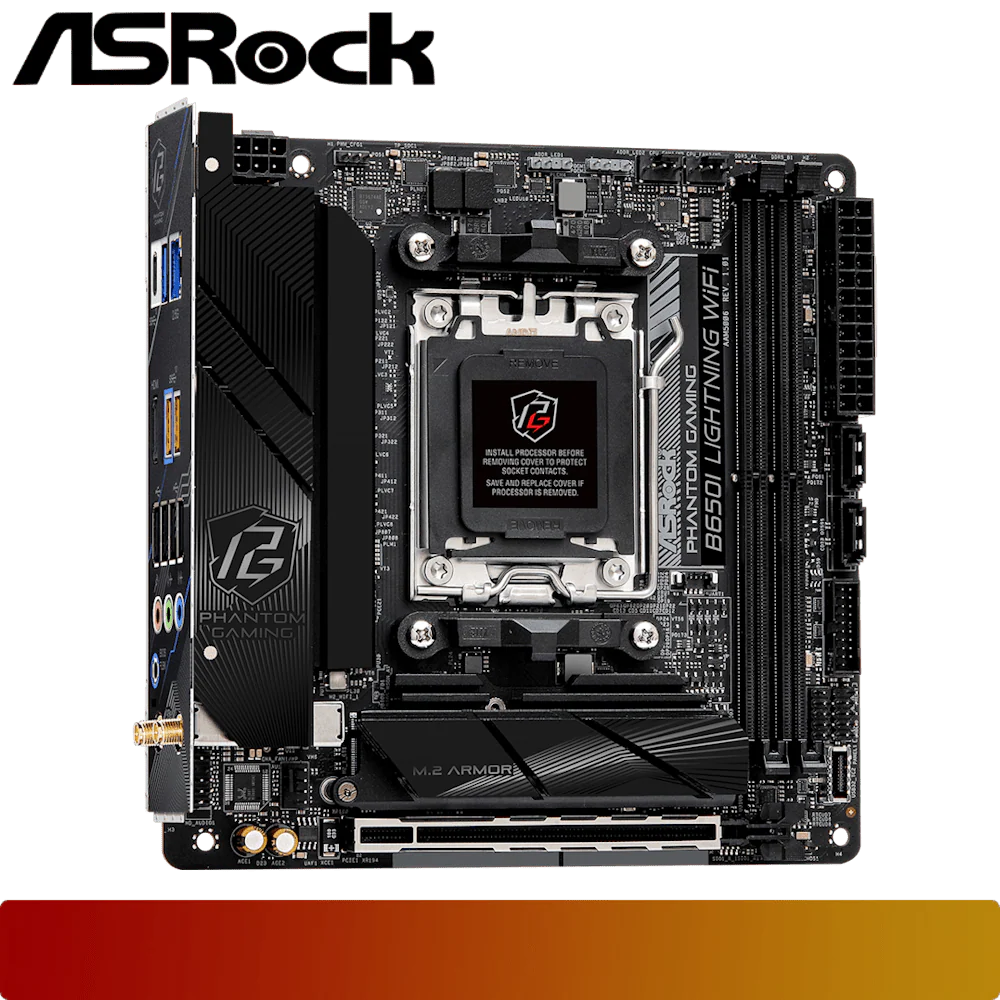

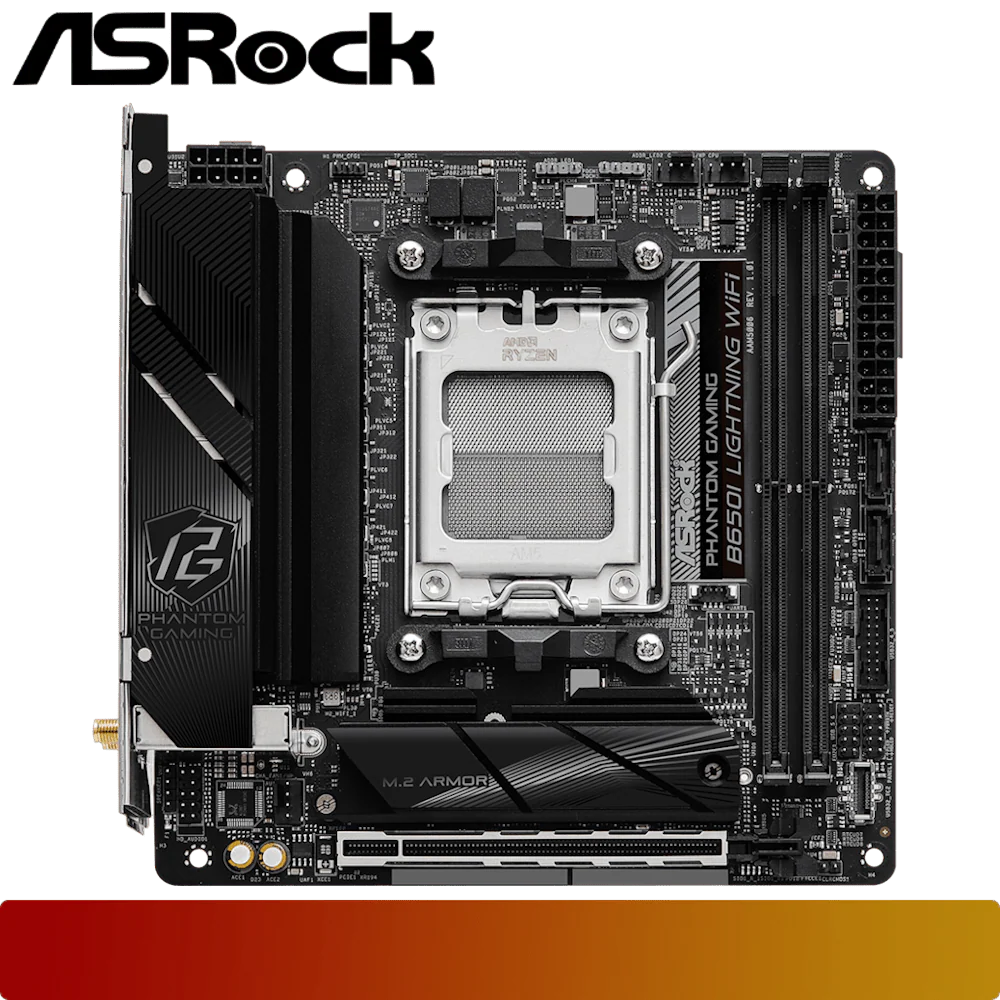

ASROCK B650I Lightning WiFi
| Unique Feature |
|
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots |
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software |
| Wireless LAN | 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| Slots | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | 1 x Blazing M.2 Socket (M2_1, Key M) 1 x Hyper M.2 Socket (M2_2, Key M) 2 x SATA3 6.0 Gb/s Connectors |

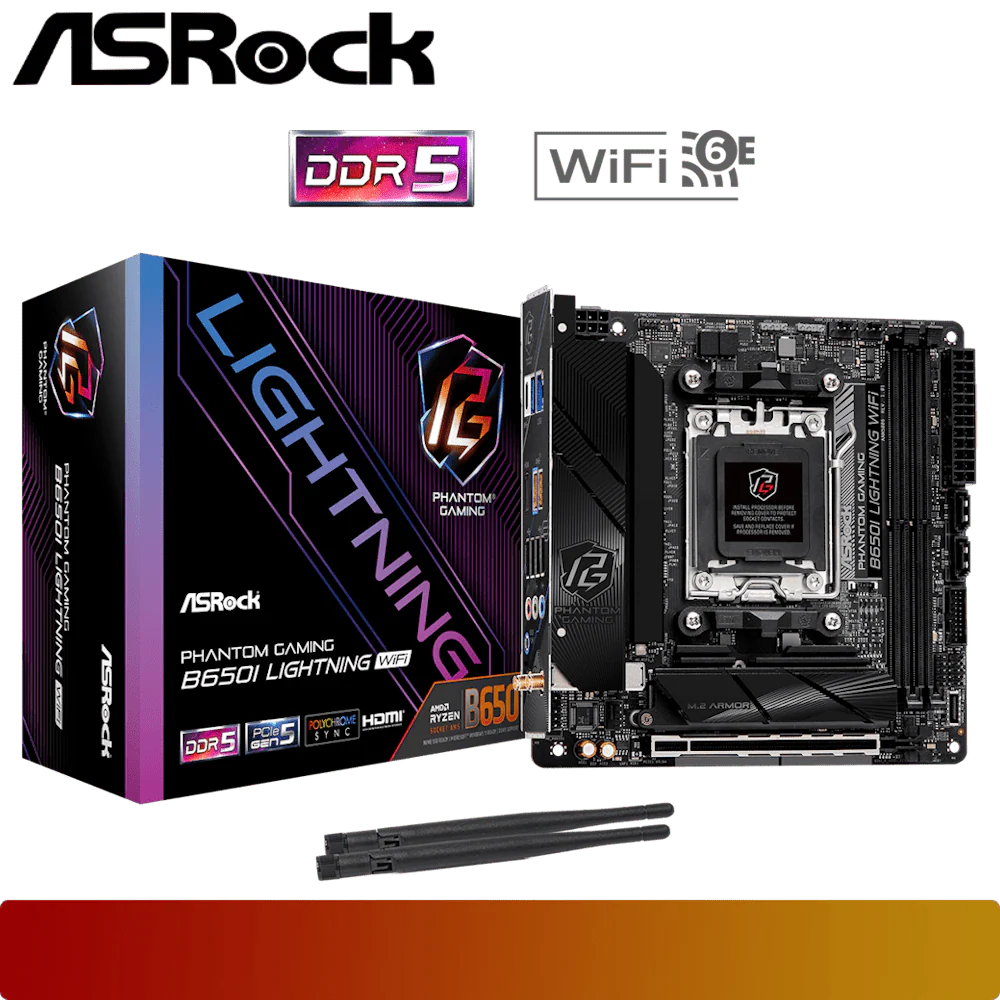

| Accessories | 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Screw for M.2 Socket |
| Form Factor | Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm 8 Layer PCB |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
$62.99
Original: $209.98
-70%ASROCK B650I Lightning WiFi—
$209.98
$62.99Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Unique Feature |
|
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots |
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software |
| Wireless LAN | 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| Slots | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | 1 x Blazing M.2 Socket (M2_1, Key M) 1 x Hyper M.2 Socket (M2_2, Key M) 2 x SATA3 6.0 Gb/s Connectors |
| Accessories | 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Screw for M.2 Socket |
| Form Factor | Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm 8 Layer PCB |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
