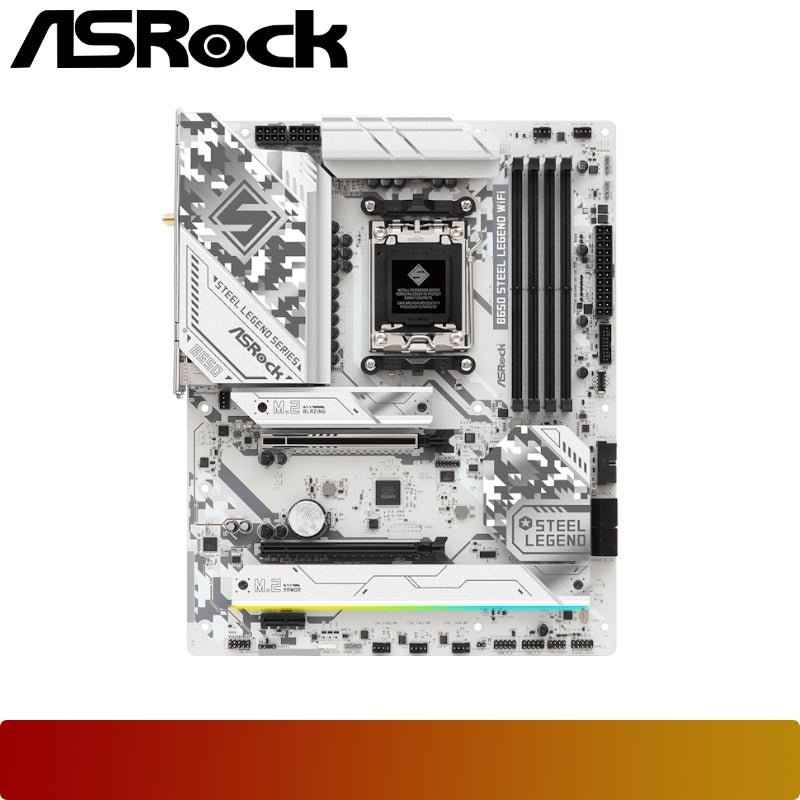

ASROCK B650 Steel Legend WiFi
| Component | Detail |
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Memori | 4 x DDR5 DIMM, Max. 128GB, Supports up to DDR5 6600+(OC) |
| PCIe Slots | 1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x4 Slot, 1 x PCIe 3.0 x1 Slot |
| Graphics Output | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Form Factor | ATX |
| Unique Feature | 16+2+1 Power Phase, 90A SPS, Dr.MOS, Flexible Integrated I/O Shield |
| Type | Quantity & Standard |
|---|---|
| M.2 (SSD) | 1 x Blazing M.2 Socket (PCIe Gen5x4) 2 x Hyper M.2 Sockets (PCIe Gen4x4) |
| SATA | 4 x SATA3 6.0 Gb/s Connectors |
| Interface | Detail |
|---|---|
| LAN | 2.5 Gigabit LAN (Realtek Dragon RTL8125BG) |
| Wireless LAN | 802.11ax Wi-Fi 6E Module + Bluetooth |
| Rear USB Ports | 1 x USB 3.2 Gen2x2 Type-C (20 Gb/s) 5 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen2x2 Type-C Connector 2 x USB 3.2 Gen1 Connectors 3 x USB 2.0 Connectors |
$219.42
ASROCK B650 Steel Legend WiFi—
$219.42
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Component | Detail |
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Memori | 4 x DDR5 DIMM, Max. 128GB, Supports up to DDR5 6600+(OC) |
| PCIe Slots | 1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x4 Slot, 1 x PCIe 3.0 x1 Slot |
| Graphics Output | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Form Factor | ATX |
| Unique Feature | 16+2+1 Power Phase, 90A SPS, Dr.MOS, Flexible Integrated I/O Shield |
| Type | Quantity & Standard |
|---|---|
| M.2 (SSD) | 1 x Blazing M.2 Socket (PCIe Gen5x4) 2 x Hyper M.2 Sockets (PCIe Gen4x4) |
| SATA | 4 x SATA3 6.0 Gb/s Connectors |
| Interface | Detail |
|---|---|
| LAN | 2.5 Gigabit LAN (Realtek Dragon RTL8125BG) |
| Wireless LAN | 802.11ax Wi-Fi 6E Module + Bluetooth |
| Rear USB Ports | 1 x USB 3.2 Gen2x2 Type-C (20 Gb/s) 5 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen2x2 Type-C Connector 2 x USB 3.2 Gen1 Connectors 3 x USB 2.0 Connectors |
