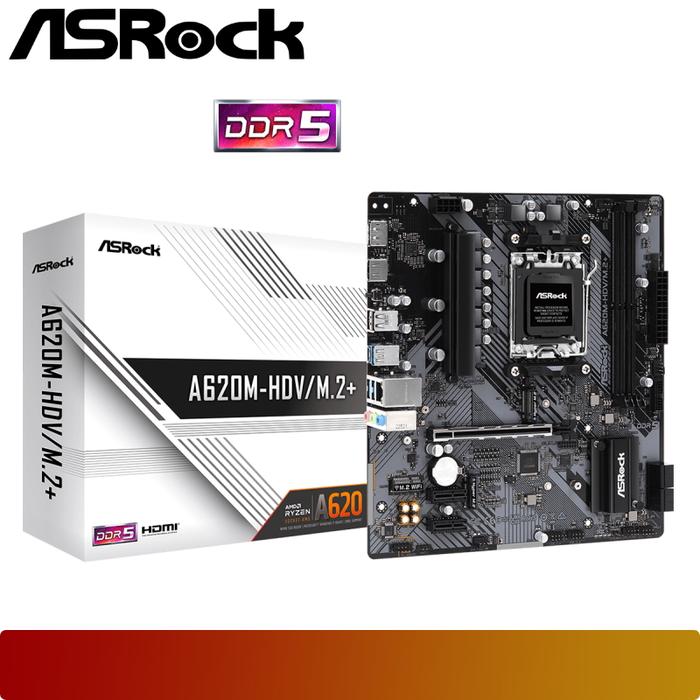

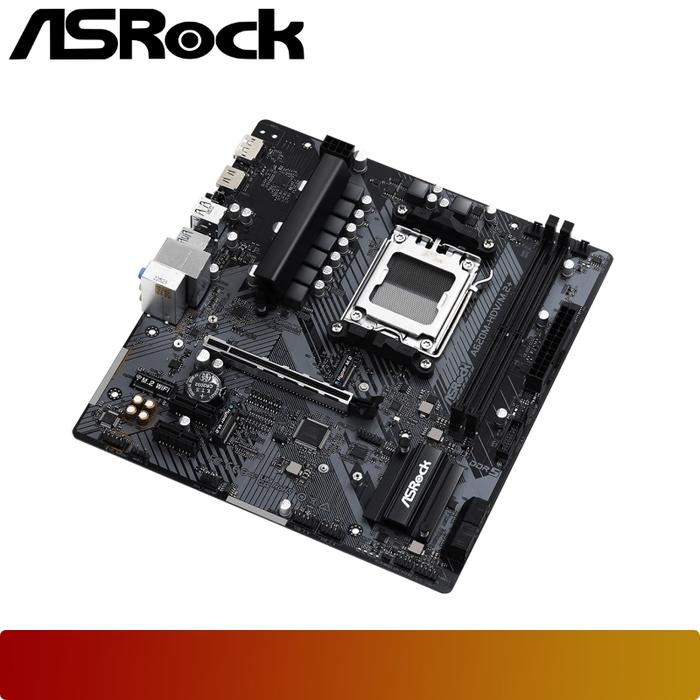

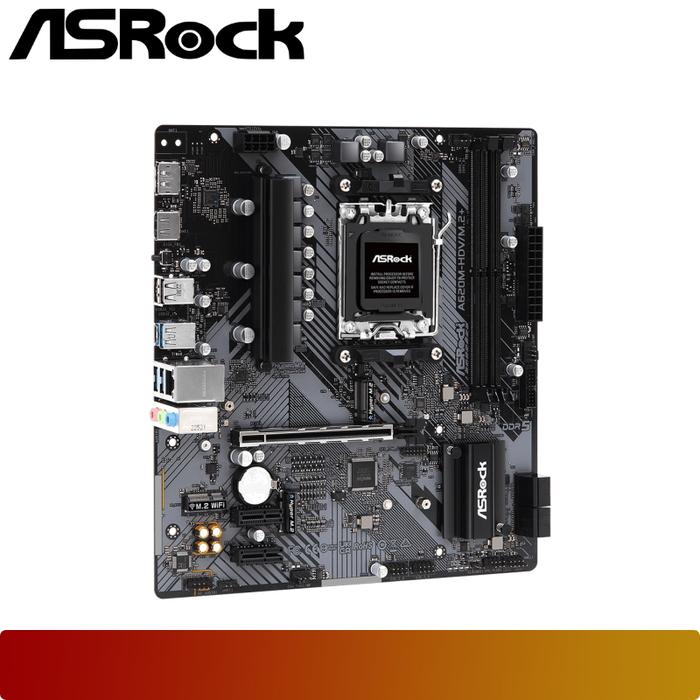

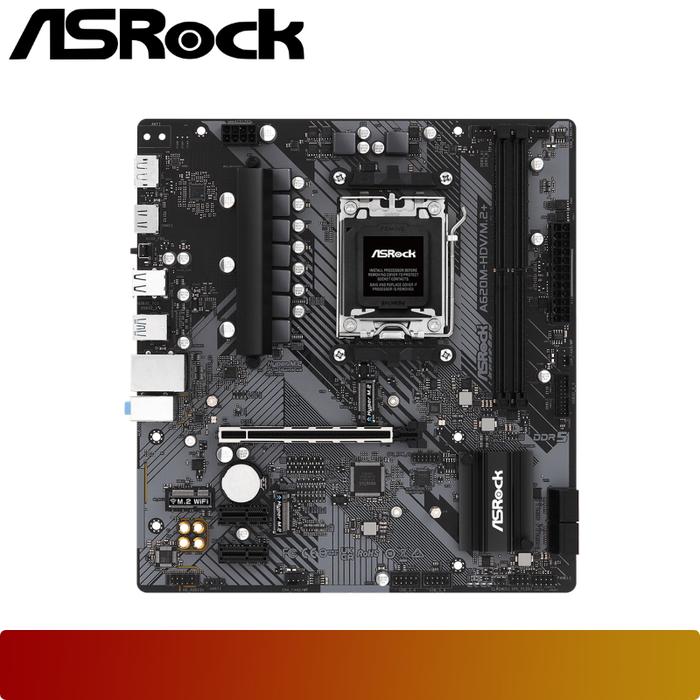

ASROCK A620M-HDV/M.2+
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD A620 |
| Memory (RAM) | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots, max. 64GB Supports DDR5 ECC/non-ECC, un-buffered up to 6400+(OC) Supports XMP and EXPO memory modules |
| Onboard Graphics | Integrated AMD RDNA™ Graphics (CPU dependent): 1 x HDMI 2.1 (max. 4K 120Hz) 1 x DisplayPort 1.4 with DSC (max. 4K 120Hz) 1 x D-Sub (VGA) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Codec) |
| LAN | Gigabit LAN (Realtek RTL8111H) |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (x16 mode) - From CPU 1 x PCIe 3.0 x1 Slot (From Chipset) 1 x M.2 Socket (Key E) for WiFi/BT PCIe module |
| Storage Interface | CPU - 1 x Hyper M.2 (Gen4x4, 64 Gb/s) (M2_1) Chipset - 2 x SATA3 6.0 Gb/s Connectors Supports RAID 0/1 (SATA) |
| USB Ports | Rear - 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Front Header - 1 x USB 3.2 Gen1 Header (supports 2 ports), 2 x USB 2.0 Headers (supports 4 ports) |

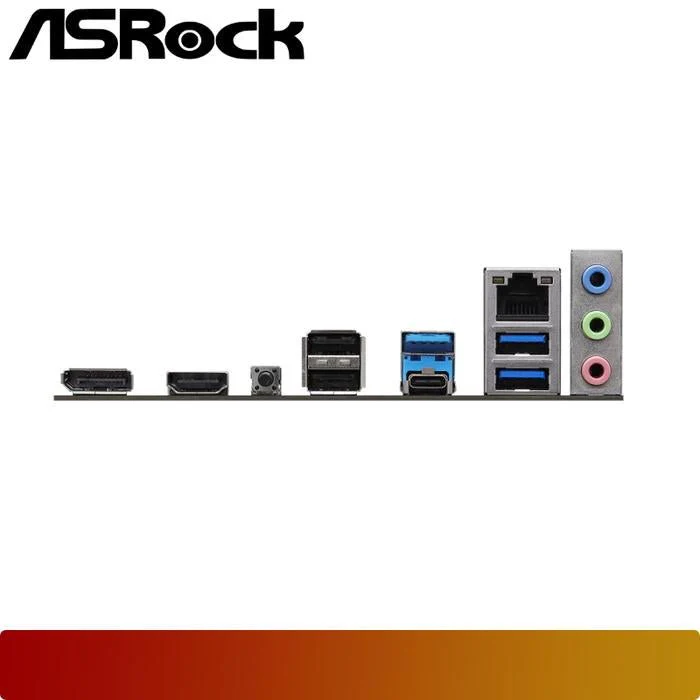

| Rear I/O Ports | 1 x D-Sub, 1 x HDMI, 1 x DisplayPort 1.4 1 x RJ-45 LAN 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x BIOS Flashback Button, Audio Jacks |
| Form Factor | Micro ATX (9.6-in x 8.0-in, 24.4 cm x 20.3 cm) |
| Operating System | Microsoft Windows® 10 64-bit / 11 64-bit |
$99.06
ASROCK A620M-HDV/M.2+—
$99.06
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD A620 |
| Memory (RAM) | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots, max. 64GB Supports DDR5 ECC/non-ECC, un-buffered up to 6400+(OC) Supports XMP and EXPO memory modules |
| Onboard Graphics | Integrated AMD RDNA™ Graphics (CPU dependent): 1 x HDMI 2.1 (max. 4K 120Hz) 1 x DisplayPort 1.4 with DSC (max. 4K 120Hz) 1 x D-Sub (VGA) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Codec) |
| LAN | Gigabit LAN (Realtek RTL8111H) |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (x16 mode) - From CPU 1 x PCIe 3.0 x1 Slot (From Chipset) 1 x M.2 Socket (Key E) for WiFi/BT PCIe module |
| Storage Interface | CPU - 1 x Hyper M.2 (Gen4x4, 64 Gb/s) (M2_1) Chipset - 2 x SATA3 6.0 Gb/s Connectors Supports RAID 0/1 (SATA) |
| USB Ports | Rear - 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Front Header - 1 x USB 3.2 Gen1 Header (supports 2 ports), 2 x USB 2.0 Headers (supports 4 ports) |
| Rear I/O Ports | 1 x D-Sub, 1 x HDMI, 1 x DisplayPort 1.4 1 x RJ-45 LAN 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A 4 x USB 2.0 1 x BIOS Flashback Button, Audio Jacks |
| Form Factor | Micro ATX (9.6-in x 8.0-in, 24.4 cm x 20.3 cm) |
| Operating System | Microsoft Windows® 10 64-bit / 11 64-bit |
