ARCTIC P8 Max

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

ARCTIC P8 Max

Specifications :
MODEL NAME
- ARCTIC P8 Max

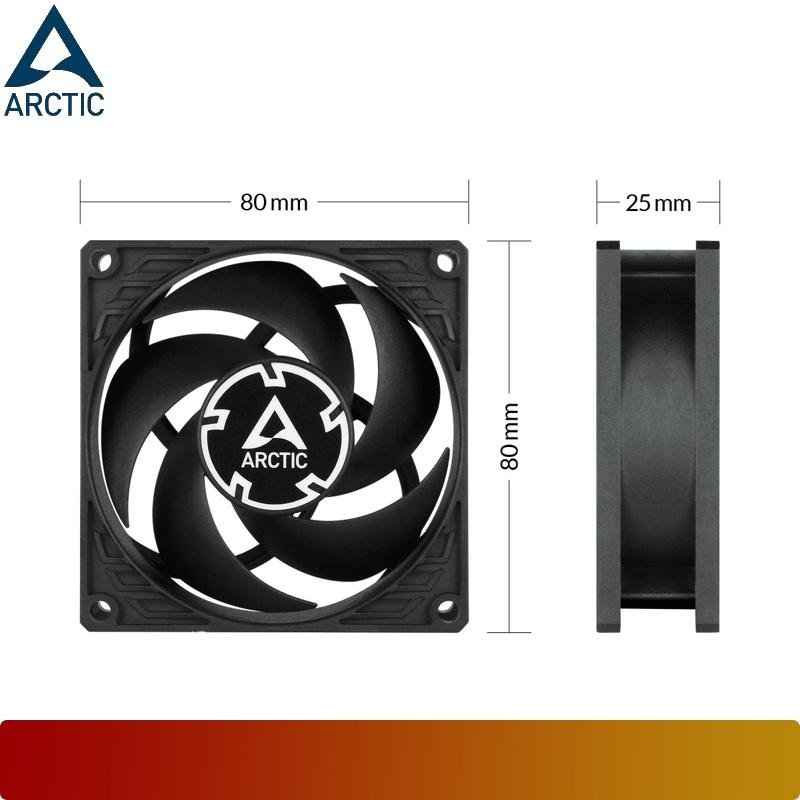

FAN DIMENSIONS
- 80 x 80 x 25 mm
FAN SPEED
- 500 - 5000 RPM (0 RPM below 5% PWM)
AIRFLOW
- 40 CFM / 67.96 m³/h
STATIC PRESSURE
- 5.30 mm H2O
NOISE LEVEL
- 0.6 Sone (@ 5000 RPM)
BEARING TECHNOLOGY
- Dual Ball Bearing (for continuous operation)
ELECTRICAL SPECIFICATIONS
- Typical Voltage: 12V DC
- Starting Voltage: 3.3V
- Current: 0.19A
CONNECTOR
- 4-Pin PWM Connector
SPECIAL FEATURES
- Extreme Static Pressure (5.30 mm H2O)
- Dual Ball Bearing (CO - Continuous Operation)
- 0 dB Mode (Silent at low load)
- Optimized for Server & SFF Environments
WARRANTY
- 6 years
$1.75

Original: $5.84

-70%
ARCTIC P8 Max—

$5.84

$1.75
