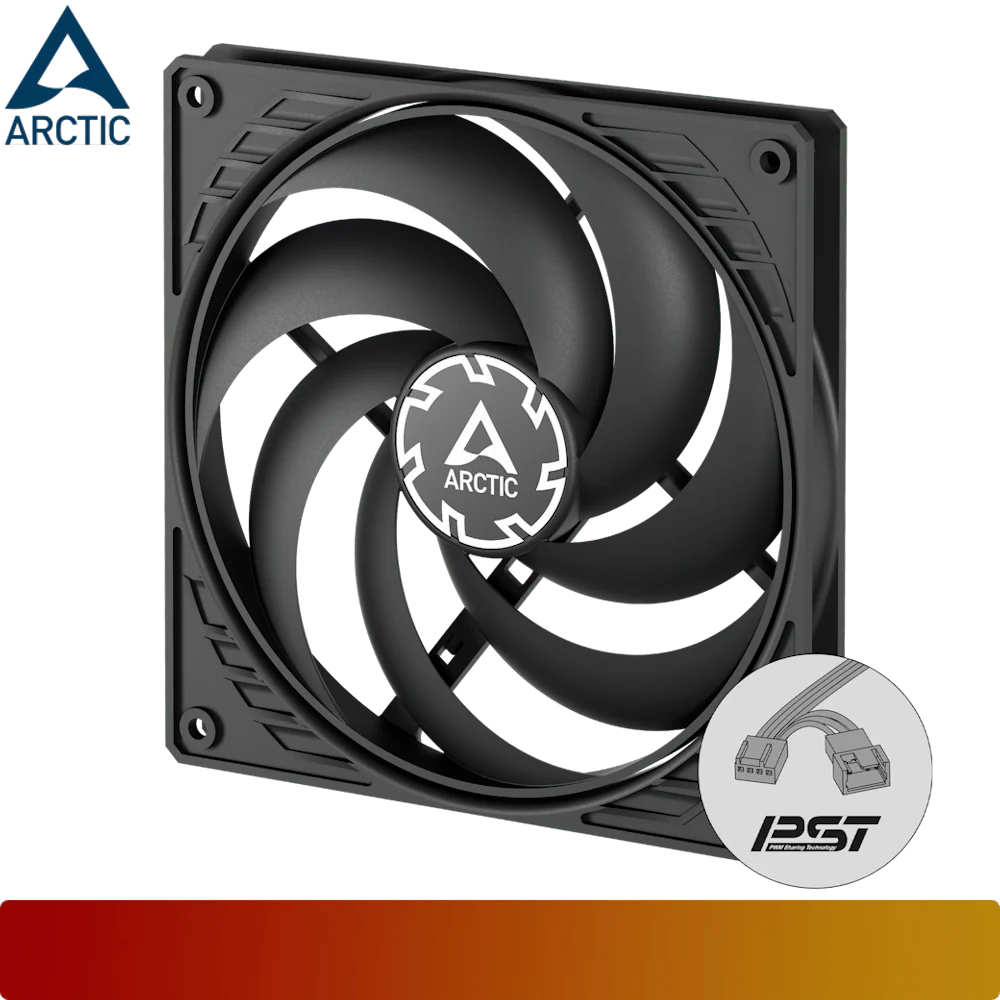

ARCTIC P14 Slim PWM PST
| Specifications : |
|
MODEL NAME - ARCTIC P14 Slim PWM PST |
|

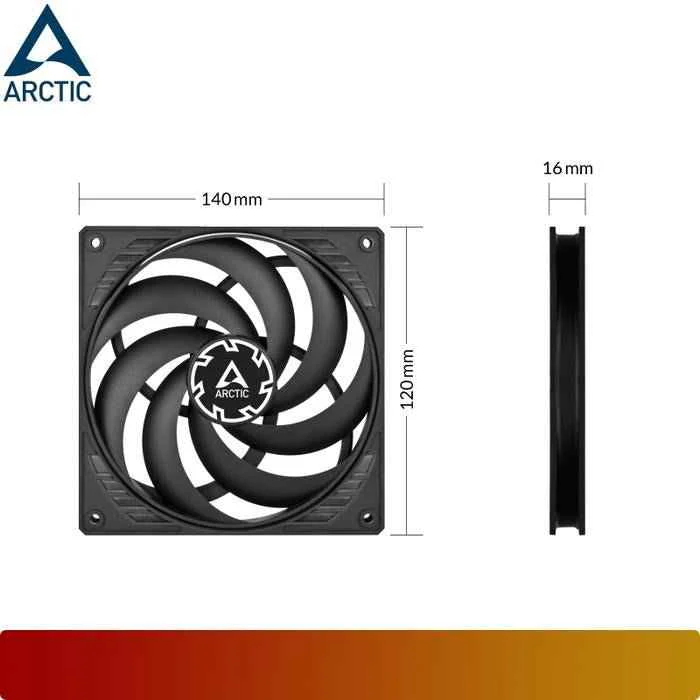

FAN DIMENSIONS - 140 x 140 x 16 mm |
|
FAN SPEED - 150 - 1800 RPM (0 RPM below 5% PWM) |
|
AIRFLOW - 52 CFM / 88.35 m³/h |
|
STATIC PRESSURE - 1.55 mm H2O |
|
NOISE LEVEL - 0.3 Sone (@ 1800 RPM) |
|
BEARING TECHNOLOGY - Fluid Dynamic Bearing |
|
ELECTRICAL SPECIFICATIONS - Typical Voltage: 12V DC - Starting Voltage: 4V - Current: 0.19A |
|
CONNECTOR - 4-Pin Connector + 4-Pin Socket (PST) |
|
SPECIAL FEATURES - 16mm Ultra Slim Design - Optimized for Static Pressure - PWM Sharing Technology (PST) - 0 dB Mode (Silent at low load) |
|
WARRANTY - 6 years |
$5.84
ARCTIC P14 Slim PWM PST—
$5.84
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Specifications : |
|
MODEL NAME - ARCTIC P14 Slim PWM PST |
|
FAN DIMENSIONS - 140 x 140 x 16 mm |
|
FAN SPEED - 150 - 1800 RPM (0 RPM below 5% PWM) |
|
AIRFLOW - 52 CFM / 88.35 m³/h |
|
STATIC PRESSURE - 1.55 mm H2O |
|
NOISE LEVEL - 0.3 Sone (@ 1800 RPM) |
|
BEARING TECHNOLOGY - Fluid Dynamic Bearing |
|
ELECTRICAL SPECIFICATIONS - Typical Voltage: 12V DC - Starting Voltage: 4V - Current: 0.19A |
|
CONNECTOR - 4-Pin Connector + 4-Pin Socket (PST) |
|
SPECIAL FEATURES - 16mm Ultra Slim Design - Optimized for Static Pressure - PWM Sharing Technology (PST) - 0 dB Mode (Silent at low load) |
|
WARRANTY - 6 years |
