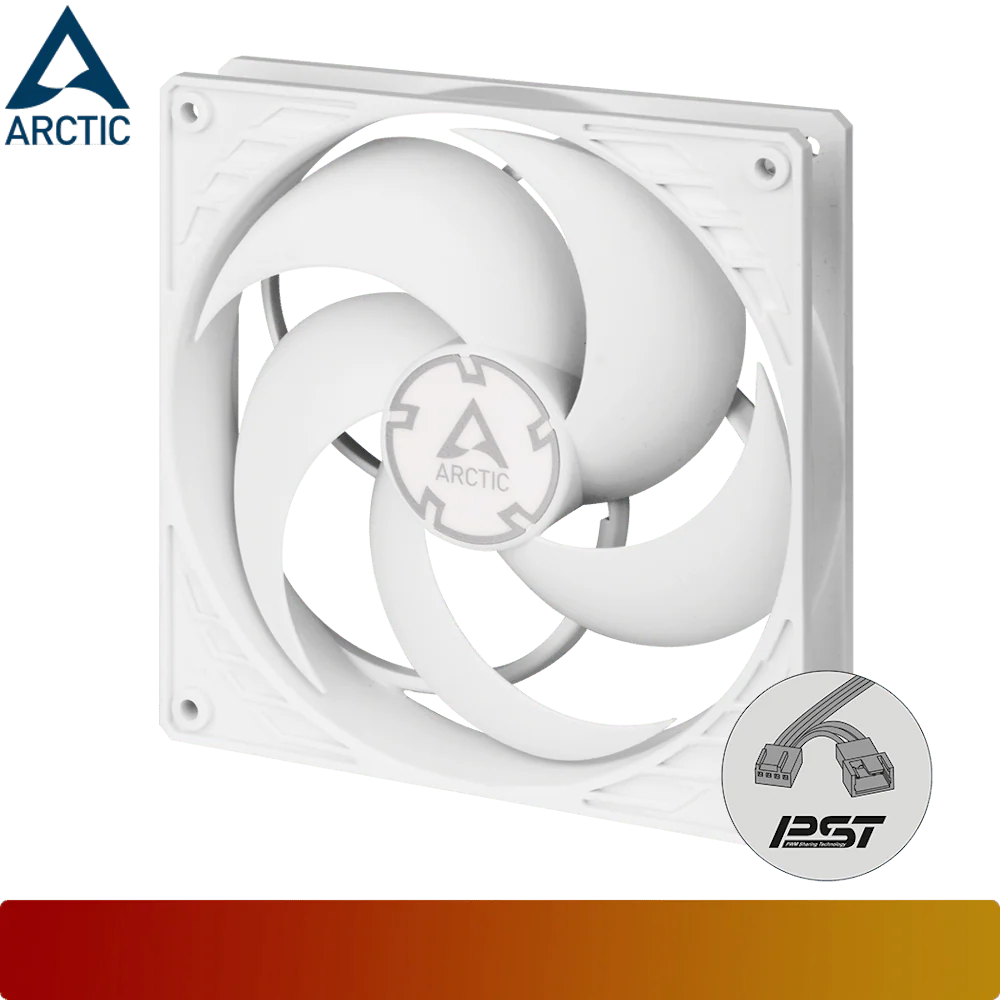

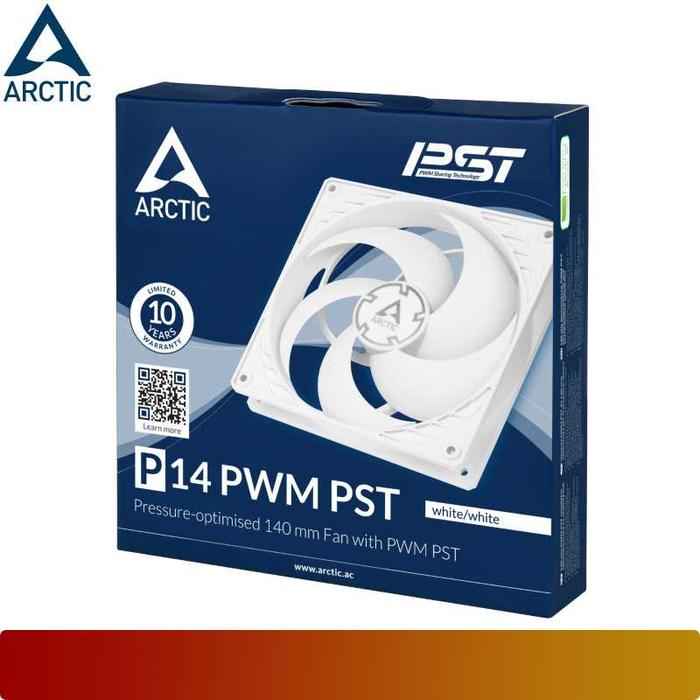

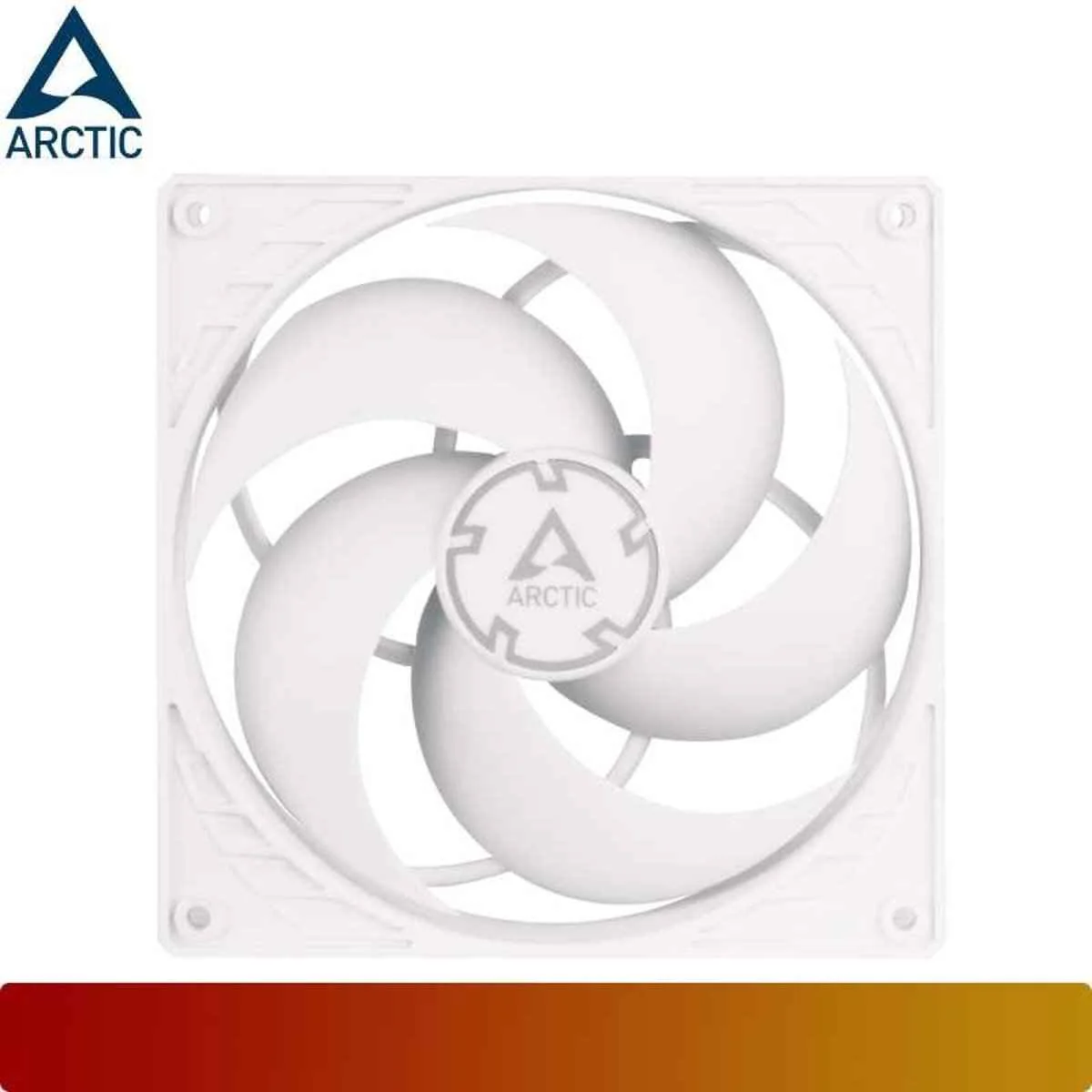

ARCTIC P14 PWM PST
| Specifications : |
|
MODEL NAME - ARCTIC P14 PWM PST |
|
FAN DIMENSIONS - 140 x 140 x 27 mm |
|
FAN SPEED - 200 - 1700 RPM (0 RPM below 5% PWM) |
|
AIRFLOW - 72.8 CFM / 123.76 m³/h |
|
STATIC PRESSURE - 2.40 mm H2O |
|
NOISE LEVEL - 0.3 Sone (@ 1700 RPM) |
|
BEARING TECHNOLOGY - Fluid Dynamic Bearing |
|
ELECTRICAL SPECIFICATIONS - Typical Voltage: 12V DC - Starting Voltage: 3.9V - Current/Voltage: 0.12A / 12V |
|
CONNECTOR - 4-Pin Connector + 4-Pin Socket (PST) |
|
SPECIAL FEATURES - Optimized for Static Pressure - PWM Sharing Technology (PST) - 0 dB Mode (Silent at low load) - New ARCTIC Motor (Low vibration & heat) |
|
WARRANTY - 6 years |
$7.02
ARCTIC P14 PWM PST—
$7.02
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Specifications : |
|
MODEL NAME - ARCTIC P14 PWM PST |
|
FAN DIMENSIONS - 140 x 140 x 27 mm |
|
FAN SPEED - 200 - 1700 RPM (0 RPM below 5% PWM) |
|
AIRFLOW - 72.8 CFM / 123.76 m³/h |
|
STATIC PRESSURE - 2.40 mm H2O |
|
NOISE LEVEL - 0.3 Sone (@ 1700 RPM) |
|
BEARING TECHNOLOGY - Fluid Dynamic Bearing |
|
ELECTRICAL SPECIFICATIONS - Typical Voltage: 12V DC - Starting Voltage: 3.9V - Current/Voltage: 0.12A / 12V |
|
CONNECTOR - 4-Pin Connector + 4-Pin Socket (PST) |
|
SPECIAL FEATURES - Optimized for Static Pressure - PWM Sharing Technology (PST) - 0 dB Mode (Silent at low load) - New ARCTIC Motor (Low vibration & heat) |
|
WARRANTY - 6 years |
