ARCTIC P12 Slim PWM PST
| Specifications : |
|
MODEL NAME - ARCTIC P12 Slim PWM PST |
|

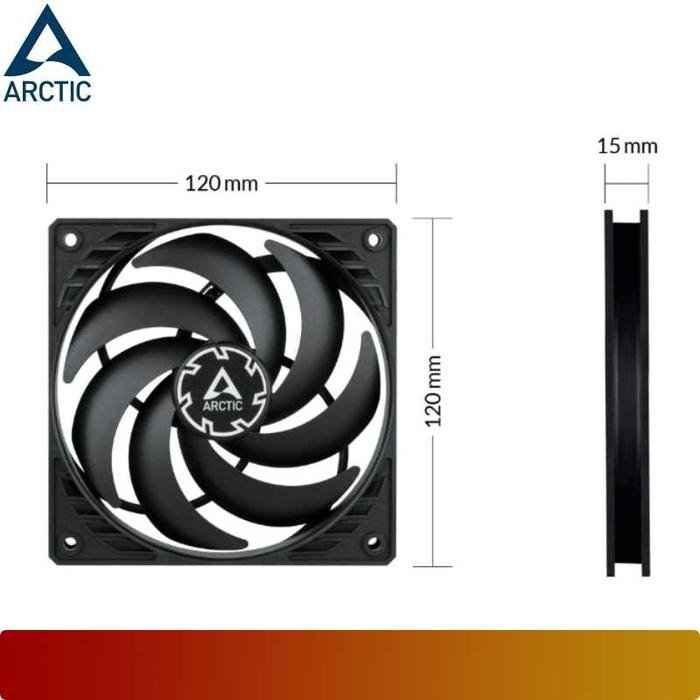

FAN DIMENSIONS - 120 x 120 x 15 mm |
|
FAN SPEED - 300 - 2100 RPM (0 RPM below 5% PWM) |
|
AIRFLOW - 42.1 CFM / 71.53 m³/h |
|
STATIC PRESSURE - 1.45 mm H2O |
|
NOISE LEVEL - 0.3 Sone (@ 2100 RPM) |
|
BEARING TECHNOLOGY - Fluid Dynamic Bearing |
|
ELECTRICAL SPECIFICATIONS - Typical Voltage: 12V DC - Starting Voltage: 4V - Current: 0.12A |
|
CONNECTOR - 4-Pin PWM Connector & 4-Pin PST Socket |
|
SPECIAL FEATURES - Ultra Slim Design (15 mm Thickness) - PWM Sharing Technology (PST) - Optimized for Static Pressure - Ideal for Small Form Factor (SFF) Cases |
|
WARRANTY - 6 years |
Select Variant
From $4.42
ARCTIC P12 Slim PWM PST—
$4.42
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Specifications : |
|
MODEL NAME - ARCTIC P12 Slim PWM PST |
|
FAN DIMENSIONS - 120 x 120 x 15 mm |
|
FAN SPEED - 300 - 2100 RPM (0 RPM below 5% PWM) |
|
AIRFLOW - 42.1 CFM / 71.53 m³/h |
|
STATIC PRESSURE - 1.45 mm H2O |
|
NOISE LEVEL - 0.3 Sone (@ 2100 RPM) |
|
BEARING TECHNOLOGY - Fluid Dynamic Bearing |
|
ELECTRICAL SPECIFICATIONS - Typical Voltage: 12V DC - Starting Voltage: 4V - Current: 0.12A |
|
CONNECTOR - 4-Pin PWM Connector & 4-Pin PST Socket |
|
SPECIAL FEATURES - Ultra Slim Design (15 mm Thickness) - PWM Sharing Technology (PST) - Optimized for Static Pressure - Ideal for Small Form Factor (SFF) Cases |
|
WARRANTY - 6 years |
