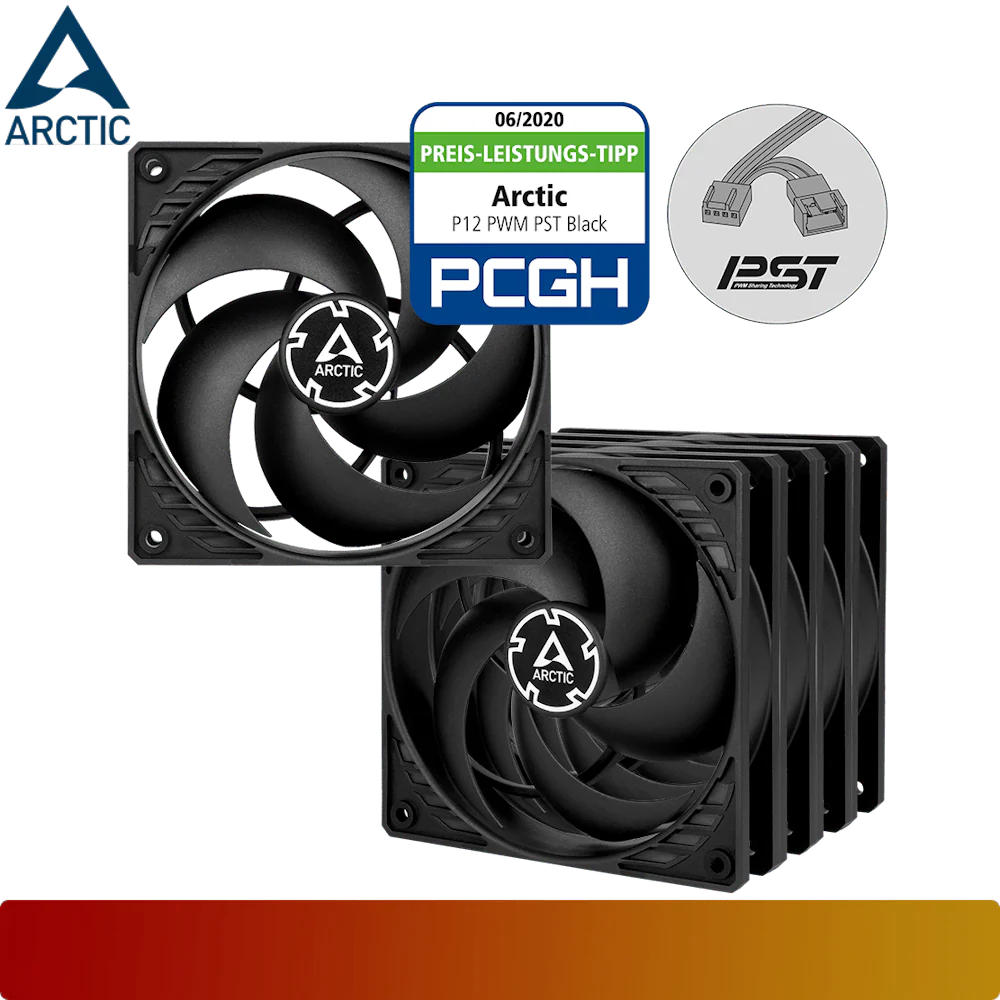

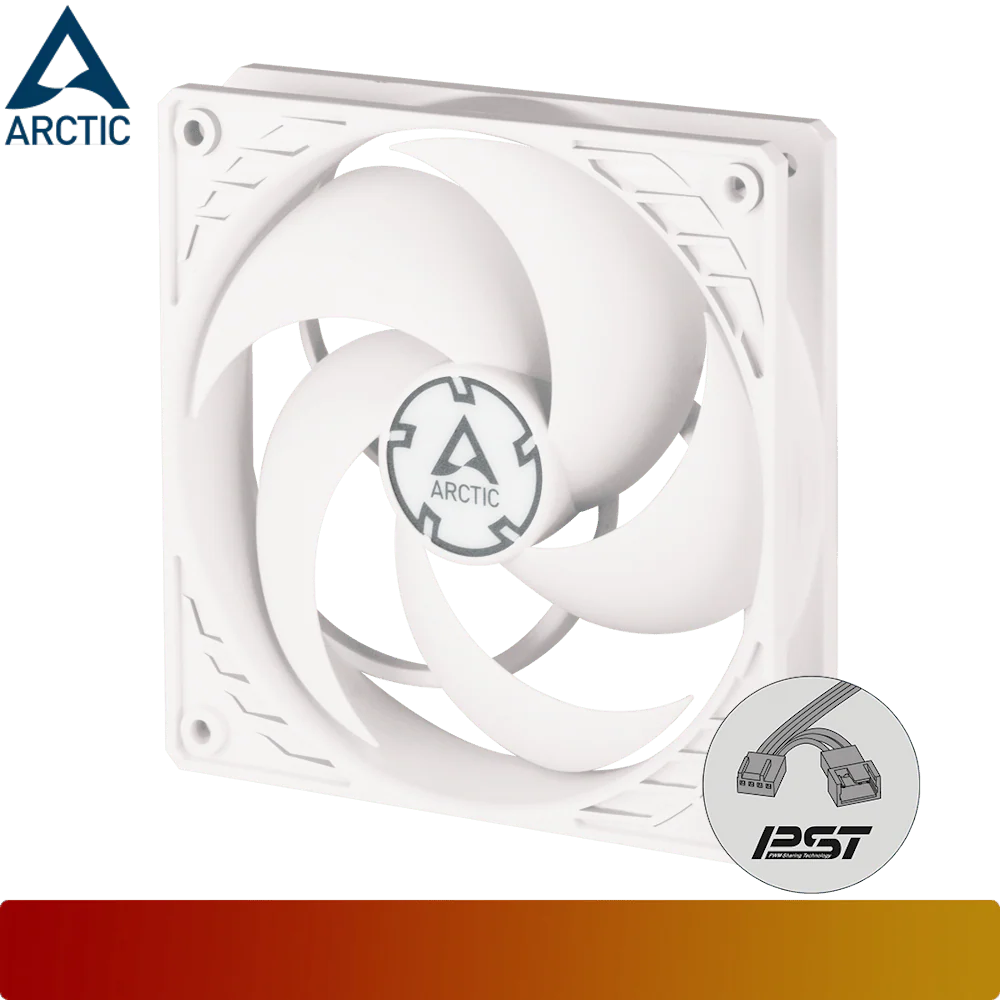

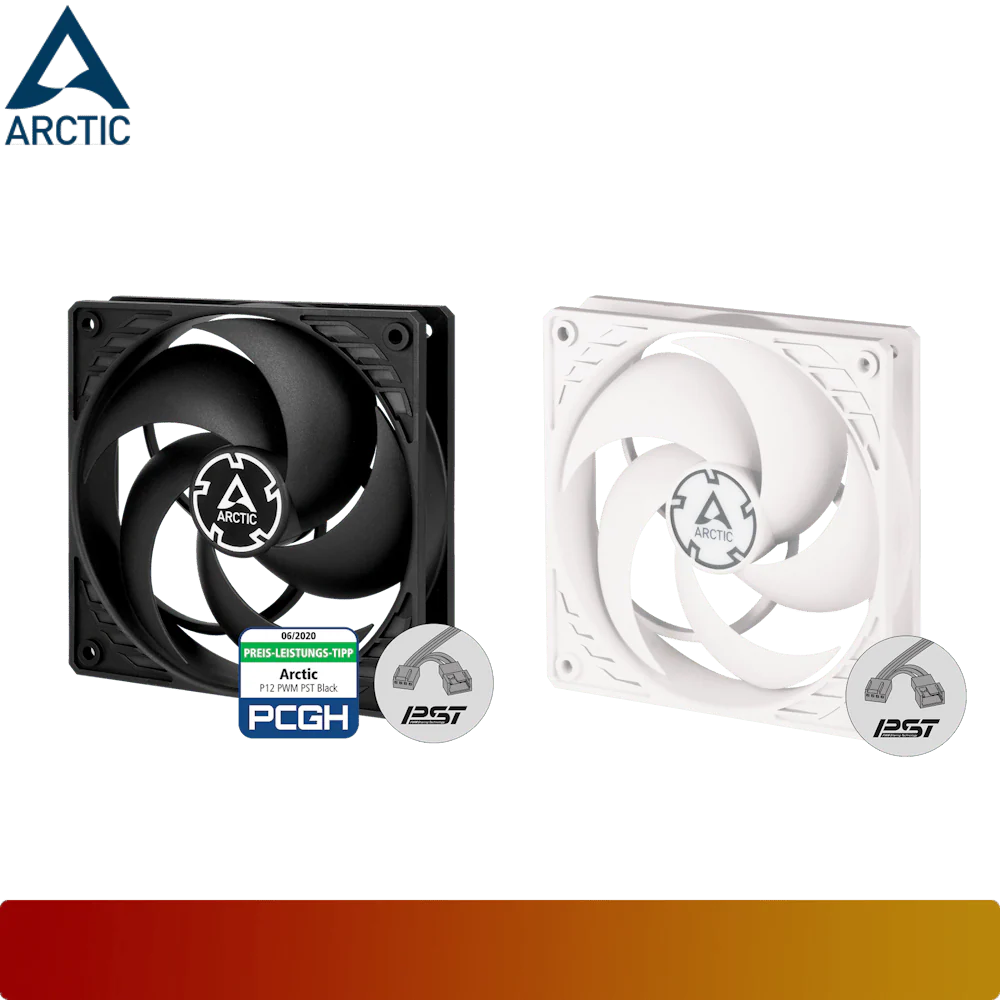

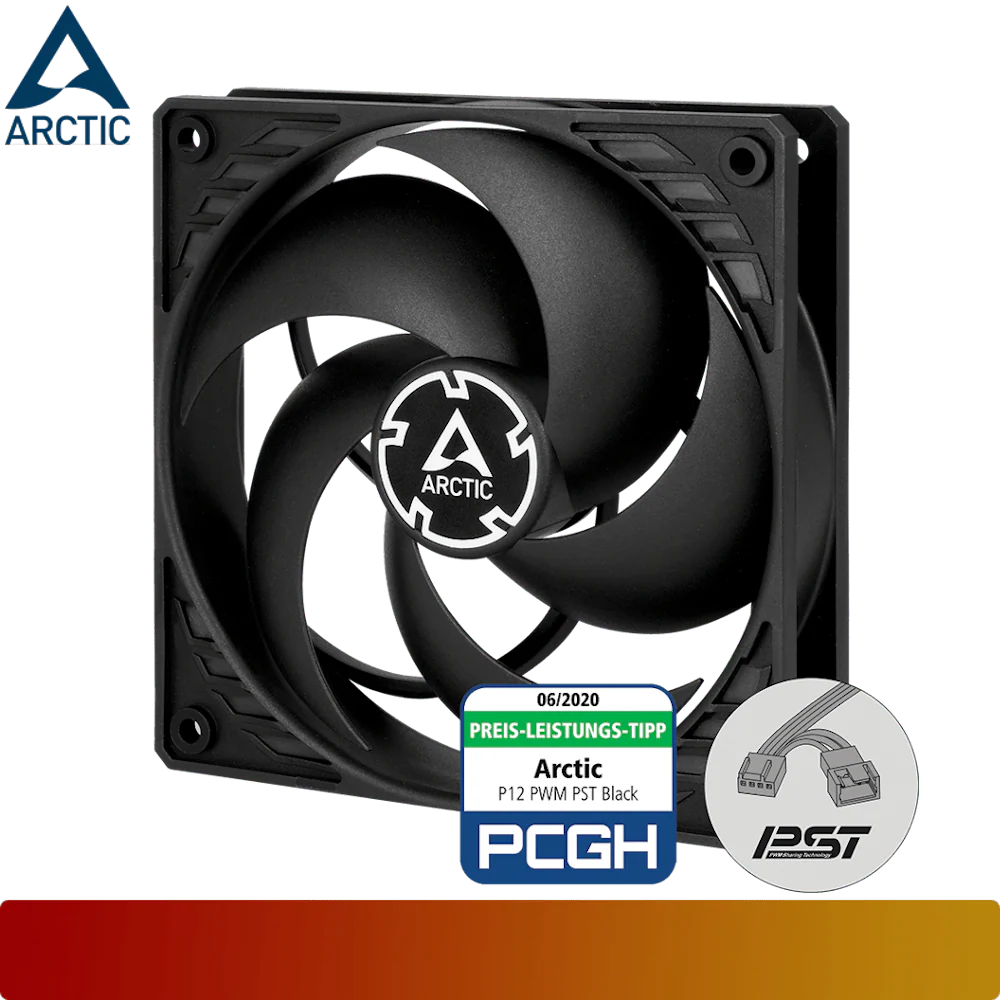

ARCTIC P12 PWM PST
| Specifications : |
|
MODEL NAME - ARCTIC P12 PWM PST |
|
FAN DIMENSIONS - 120 x 120 x 25 mm |
|
FAN SPEED - 200 - 1800 RPM (0 RPM below 5% PWM) |
|
AIRFLOW - 56.3 CFM / 95.7 m³/h |
|
STATIC PRESSURE - 2.20 mm H2O |
|
NOISE LEVEL - 0.3 Sone (@ 1800 RPM) |
|
BEARING TECHNOLOGY - Fluid Dynamic Bearing |
|
ELECTRICAL SPECIFICATIONS - Typical Voltage: 12V DC - Starting Voltage: 3.9V - Current: 0.08A |
|
CONNECTOR - 4-Pin PWM Connector & 4-Pin PST Socket |
|
SPECIAL FEATURES - PWM Sharing Technology (PST) - Pressure-optimised Design - High Static Pressure for Heatsinks and Radiators |
|
WARRANTY - 6 years |
Select Colour
Select Variant
From $5.31
ARCTIC P12 PWM PST—
$5.31
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Specifications : |
|
MODEL NAME - ARCTIC P12 PWM PST |
|
FAN DIMENSIONS - 120 x 120 x 25 mm |
|
FAN SPEED - 200 - 1800 RPM (0 RPM below 5% PWM) |
|
AIRFLOW - 56.3 CFM / 95.7 m³/h |
|
STATIC PRESSURE - 2.20 mm H2O |
|
NOISE LEVEL - 0.3 Sone (@ 1800 RPM) |
|
BEARING TECHNOLOGY - Fluid Dynamic Bearing |
|
ELECTRICAL SPECIFICATIONS - Typical Voltage: 12V DC - Starting Voltage: 3.9V - Current: 0.08A |
|
CONNECTOR - 4-Pin PWM Connector & 4-Pin PST Socket |
|
SPECIAL FEATURES - PWM Sharing Technology (PST) - Pressure-optimised Design - High Static Pressure for Heatsinks and Radiators |
|
WARRANTY - 6 years |
