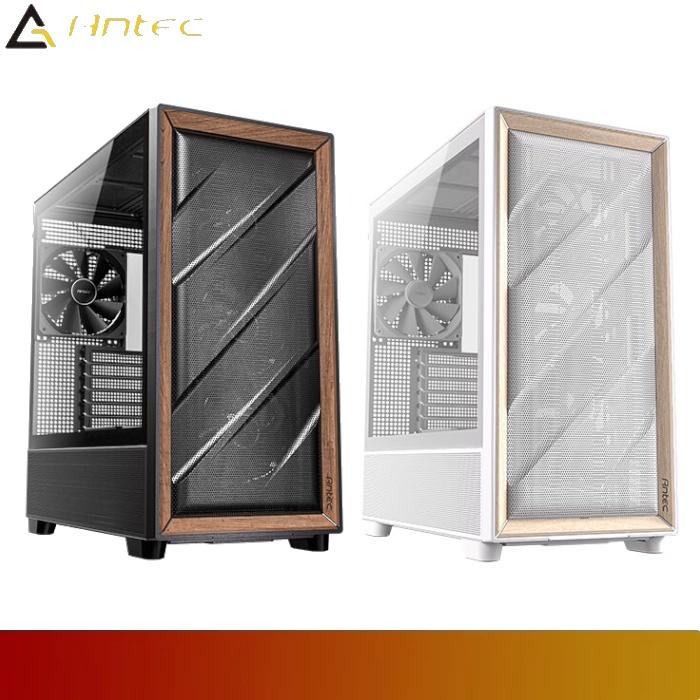

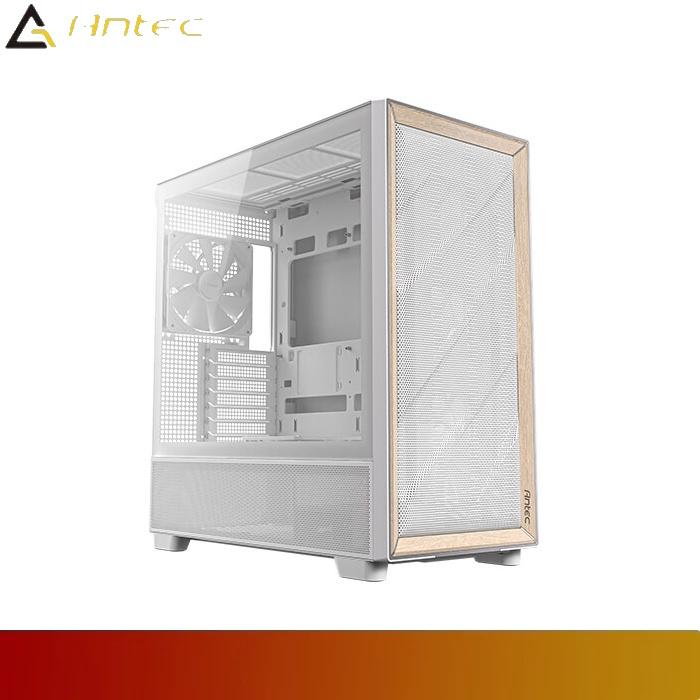

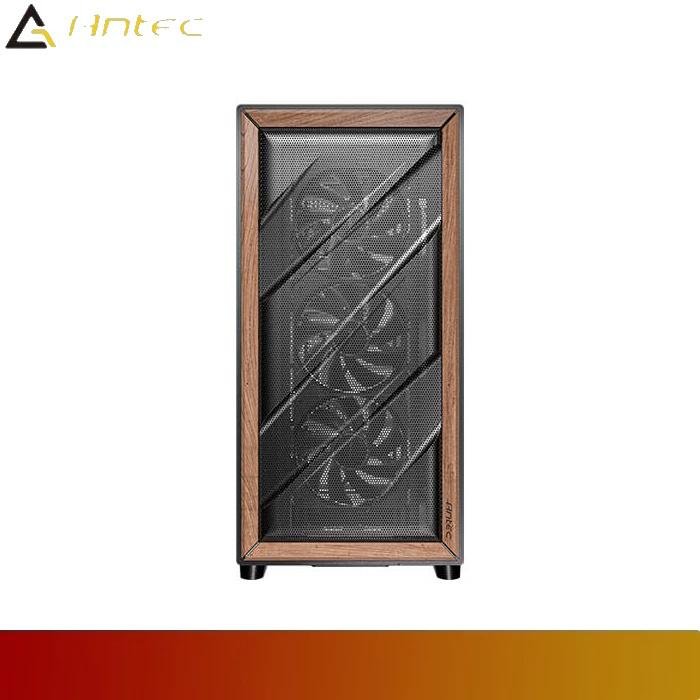

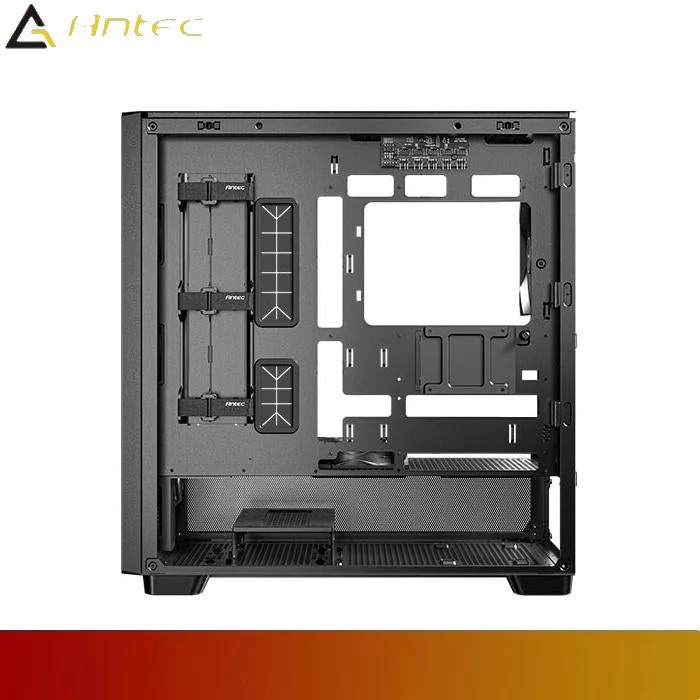

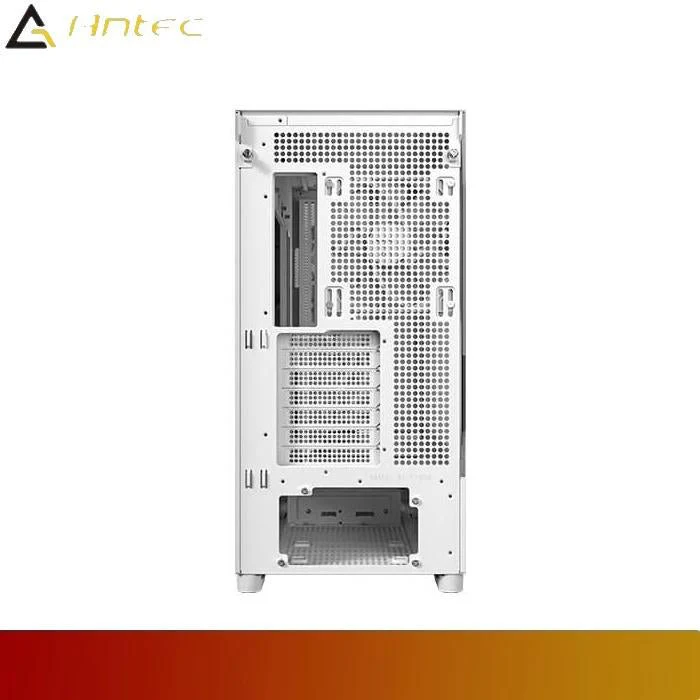

ANTEC FLUX | Mid Tower Case

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

main spec
- Dimensions : 484 x 239 x 502 mm (DWH)
- Form Factor : Mid Tower
- Materials : Steel + Plastic + Wood
- Mainboard Support : E-ATX (≤330mm), ATX, Micro-ATX, ITX
- Front Access & Controls : Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack
- Side Panel : 4mm Tempered Glass

Drive Bays
- Expansion Slots : 7
- 3.5" /2.5" : 2/2
- 2.5" : 1

Fan Support
- Front : 3 x 120mm / 3 x 140mm
- Top : 3 x 120mm / 2 x 140mm
- Power Supply Shroud : 2 x 120mm / 2 x 140mm
- Rear : 1 x 120mm / 1 x 140mm
- Included Fan(s) : 3 x 120mm PWM fans in front + 1 x 120mm PWM Reverse fan on PSU shroud + 1 x 140mm PWM fan in rear

Radiator Support
- Front : 120 / 140 / 240 / 280 / 360 / 420mm
- Top : 120 / 140 / 240 / 280 / 360mm
- Rear : 120 / 140mm

Clearance
- Max GPU Length : ≤408mm
- Max CPU Cooler Height : ≤180mm
- Max PSU Length : (Include cable) ≤235mm (with HDD)

Miscellaneous

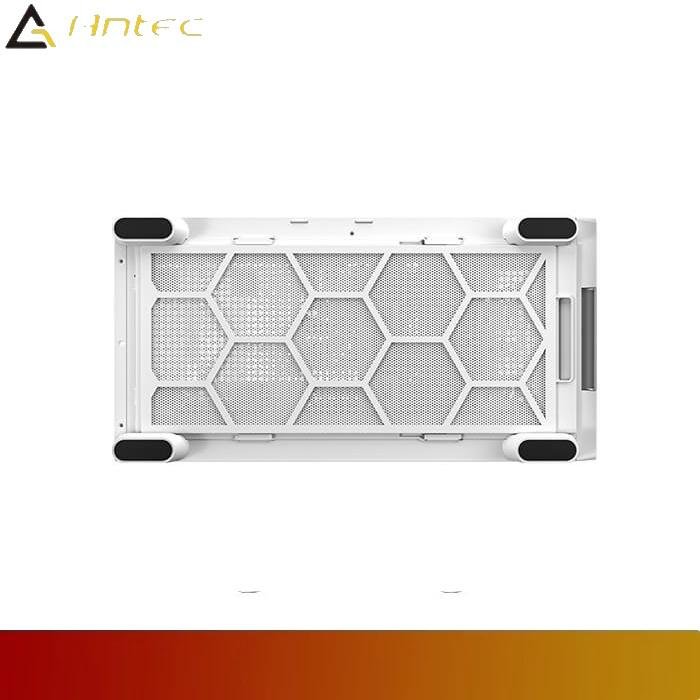

- Dust Filter : Bottom
