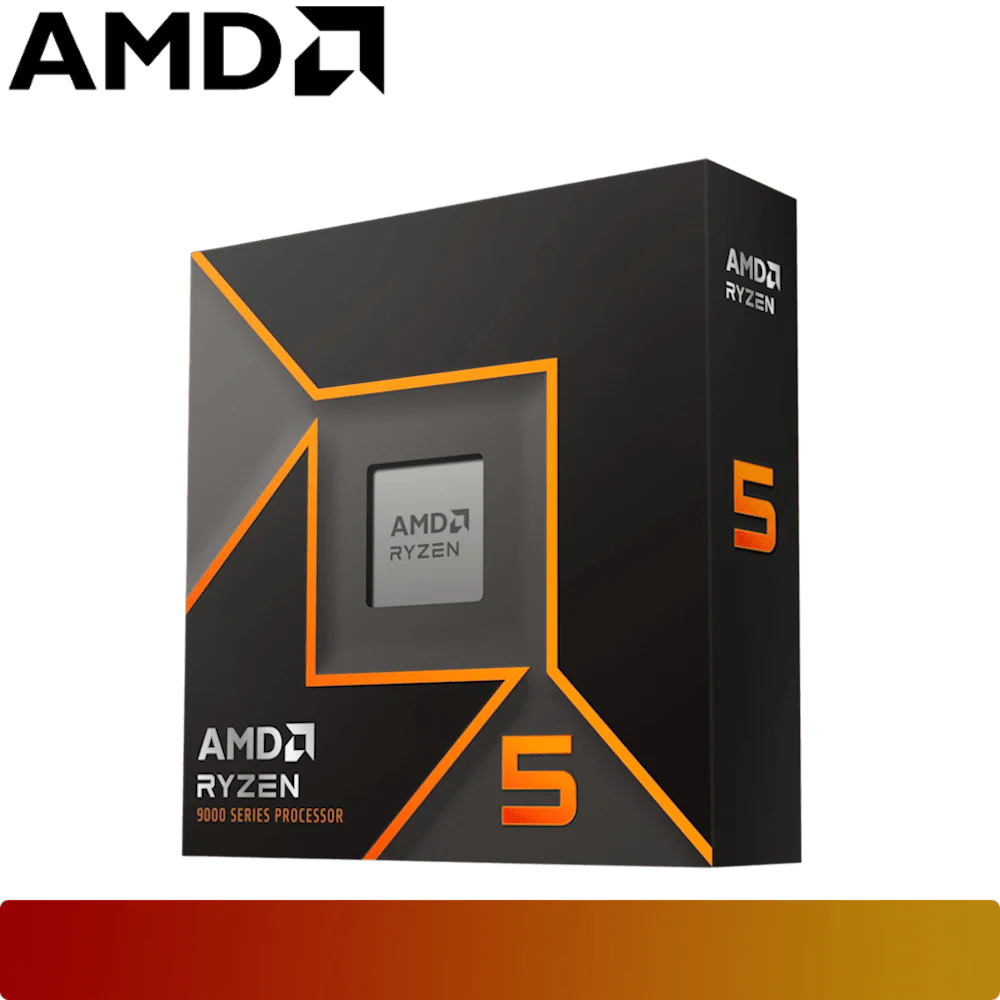

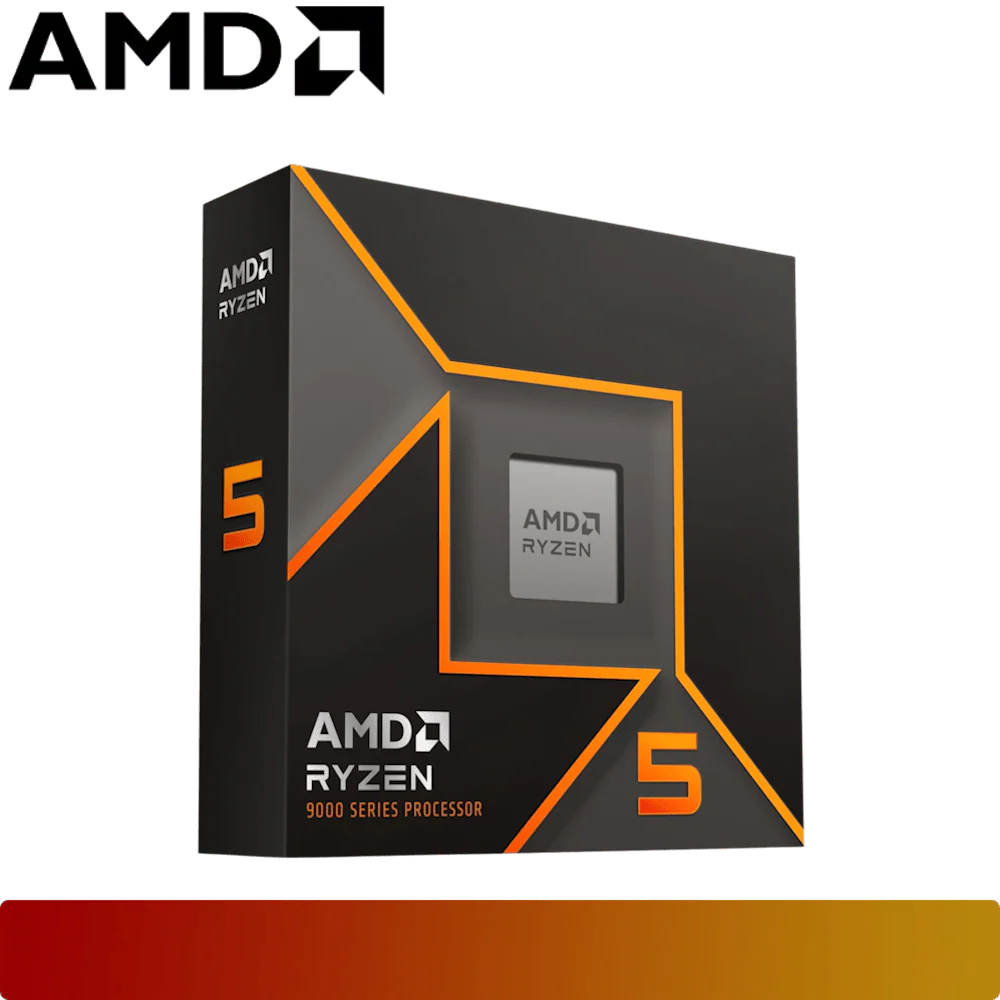

AMD Ryzen 5 9600X Desktop Processor
| Name | AMD Ryzen™ 5 9600X |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Former Codename | Granite Ridge AM5 |
| Processor Architecture | Zen 5 |
| # of CPU Cores | 6 |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5.4 GHz |
| Base Clock | 3.9 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM5 |
| Thermal Solution (PIB) | Not Included |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28 / 24 |
| System Memory Type | DDR5 |
| System Memory Specification (Max Speed) | Up to DDR5-5600 |
| Graphics Model | AMD Radeon™ Graphics (iGPU) |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| Launch Date | 08/08/2024 |
| Max. Operating Temperature (Tjmax) | 95°C |
Select Package
From $224.73
AMD Ryzen 5 9600X Desktop Processor—
$224.73
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Name | AMD Ryzen™ 5 9600X |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Former Codename | Granite Ridge AM5 |
| Processor Architecture | Zen 5 |
| # of CPU Cores | 6 |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5.4 GHz |
| Base Clock | 3.9 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM5 |
| Thermal Solution (PIB) | Not Included |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28 / 24 |
| System Memory Type | DDR5 |
| System Memory Specification (Max Speed) | Up to DDR5-5600 |
| Graphics Model | AMD Radeon™ Graphics (iGPU) |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| Launch Date | 08/08/2024 |
| Max. Operating Temperature (Tjmax) | 95°C |
